Desay · MB Series

The Art Of LED· Outdoor · Installation ·· 9500 ⛅ SMD ·· Lightweight Panels ·· Signage · Billboards ·· Taurus · VNNOX ·Desay · MB Series

Desay Matrix Series LED Panels · 3.846 to 16.666mm ·

USD ⁞ The 2026 MB Series is a lightweight LED panel offering custom configurations, custom corners and a default 16:9 aspect ratio, designed for medium to large format outdoor displays of any size. Slim and easy to handle, these panels offer high resolution and unique front access for quick service. The Desay MB Series LED Panel is a value-priced alternative to traditional outdoor cabinets.

A Supermodel For The Great Outdoors. Priced To Fit ·

Pixels

Pixel-to-pixel spacing ranges from 16.666 to a more compact 3.846 millimeters to create high-resolution displays that align up to 67,600 SMD lamps into a single square meter.

Each millimeter of spacing supports one meter of viewing distance which means that the MB Series will look great from less than 4 steps away.

Dimensions

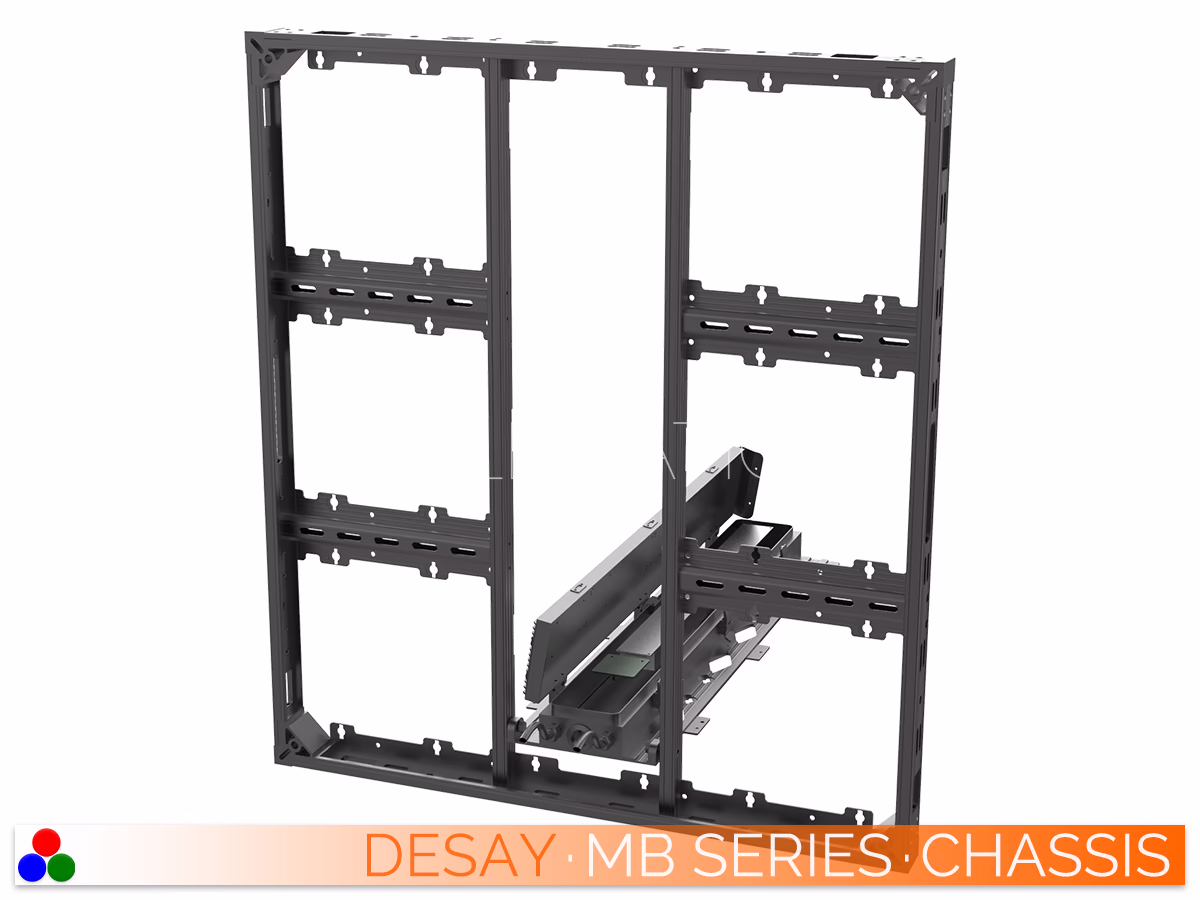

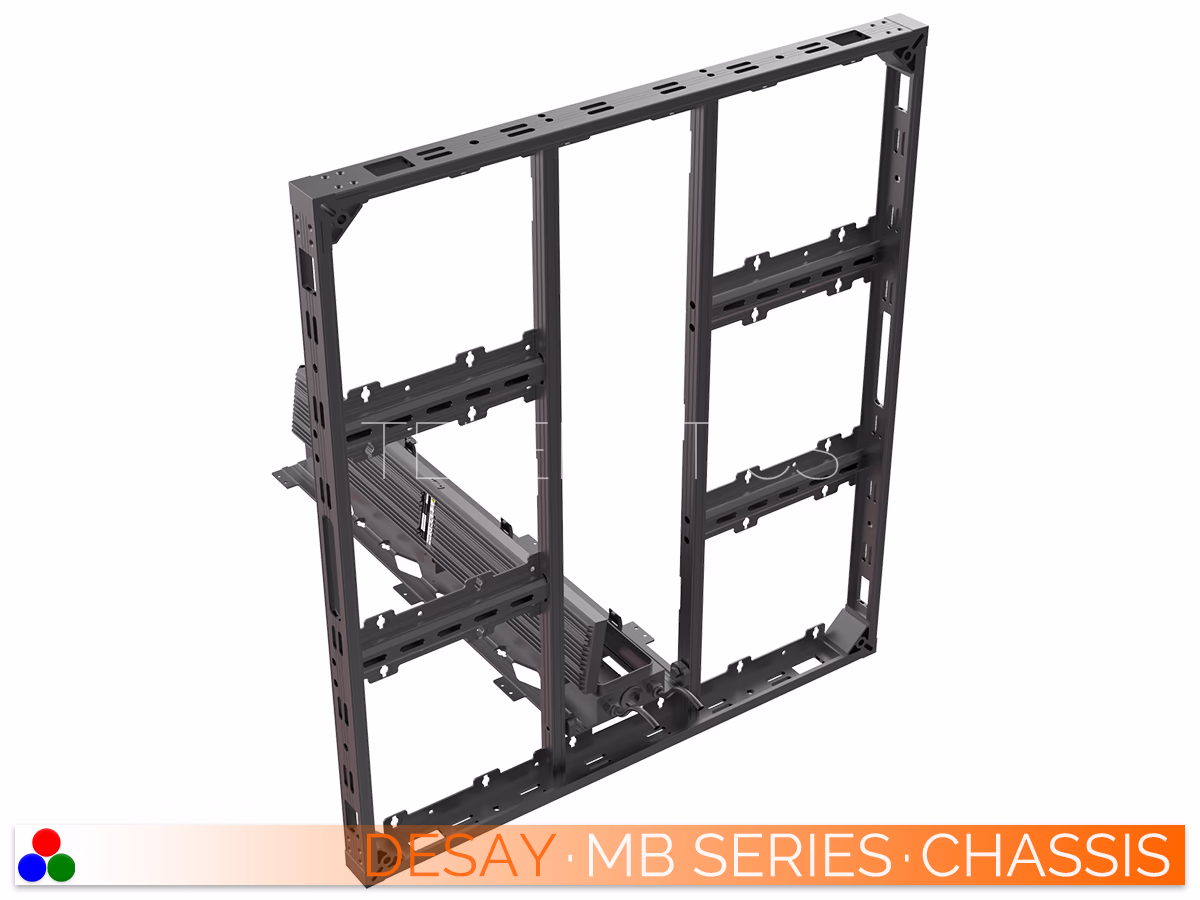

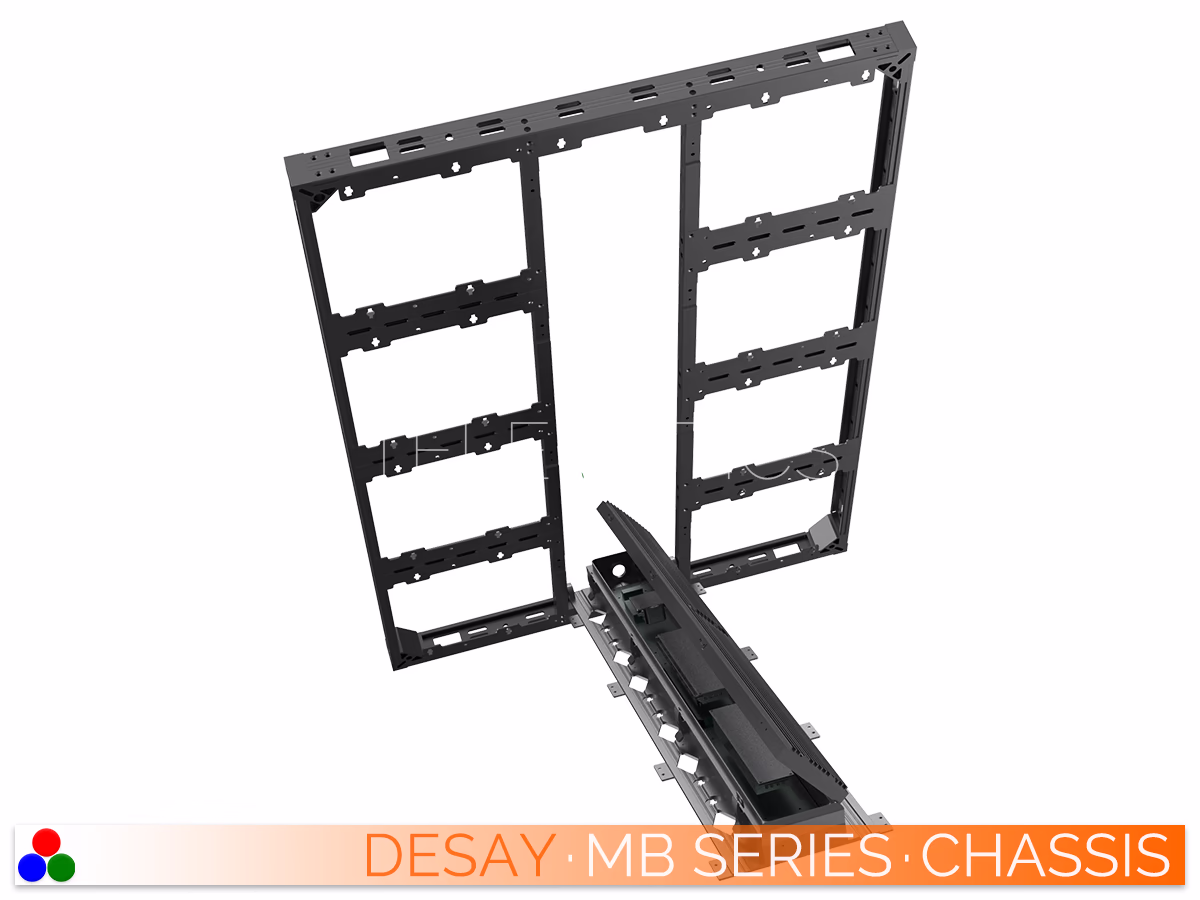

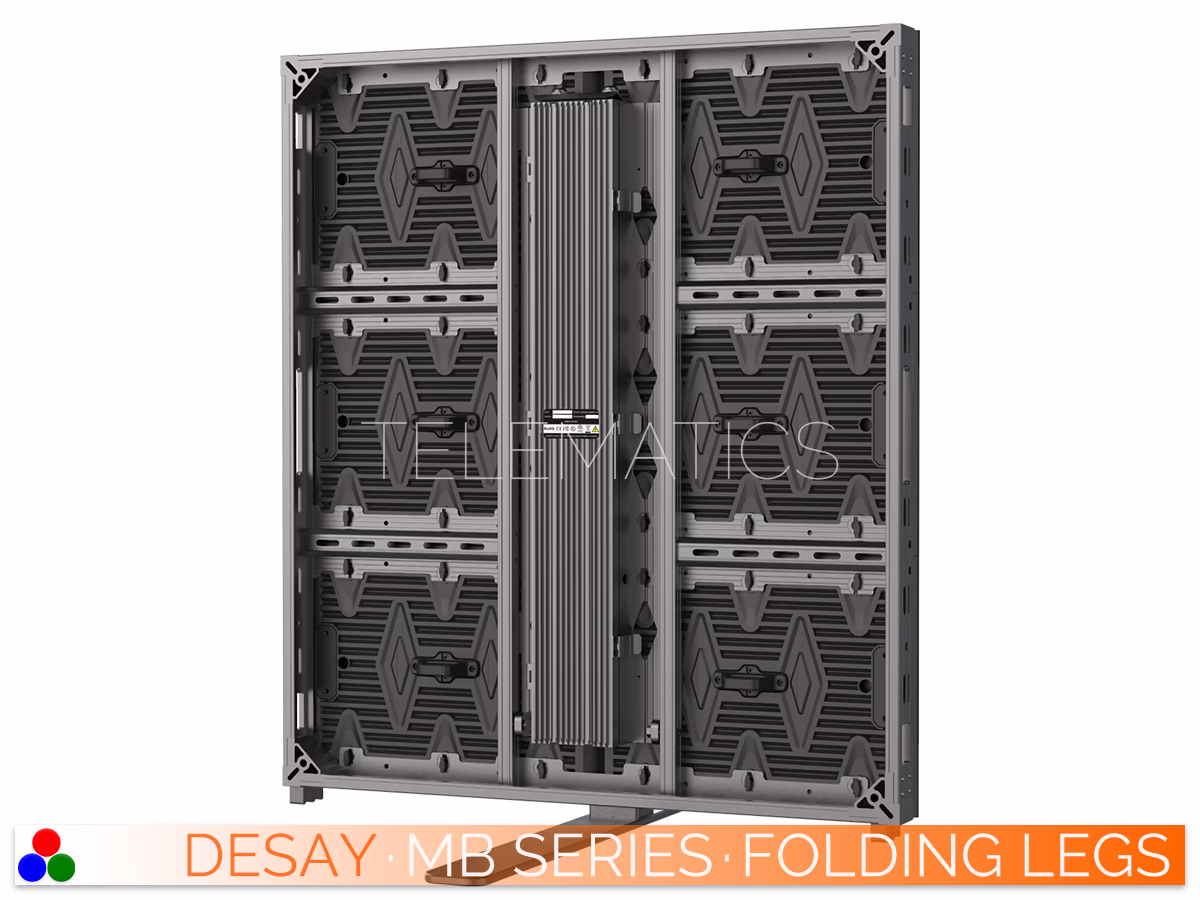

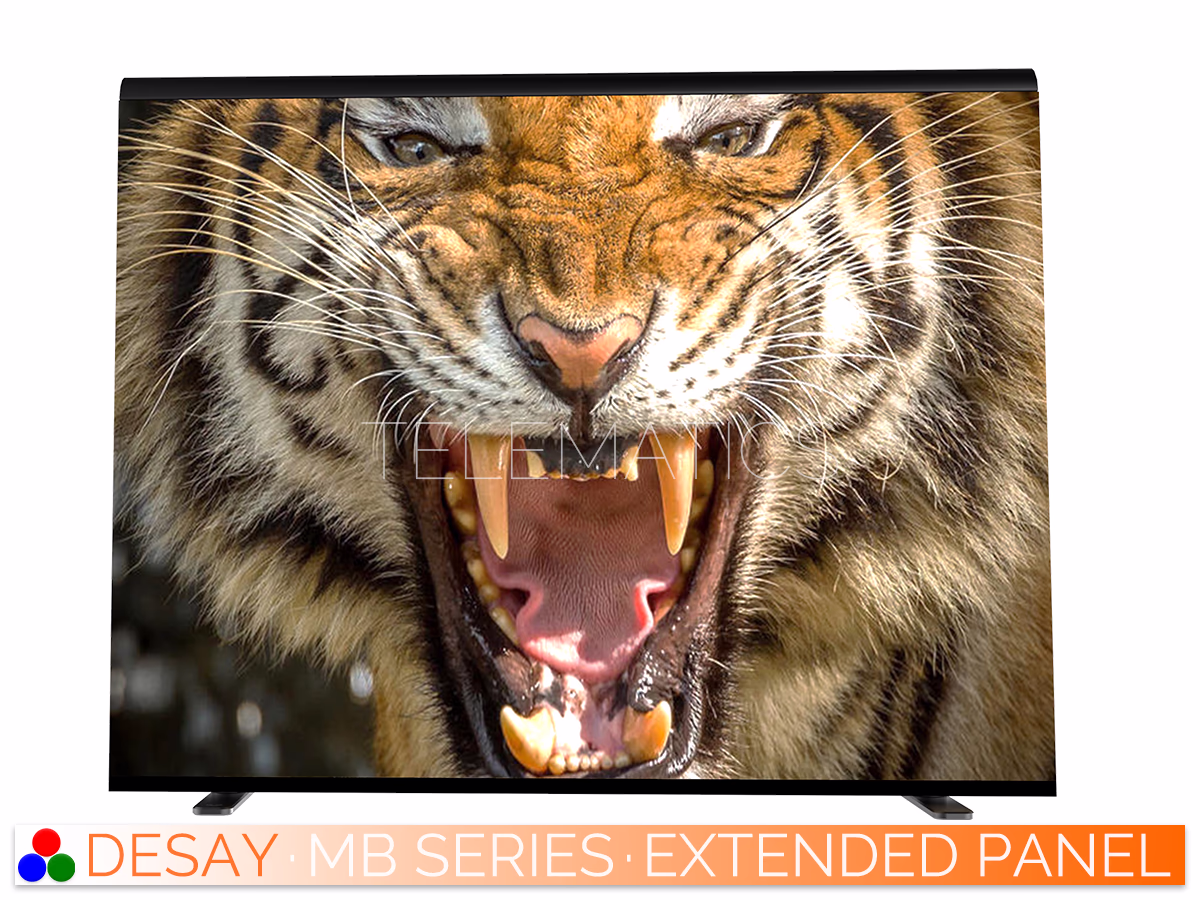

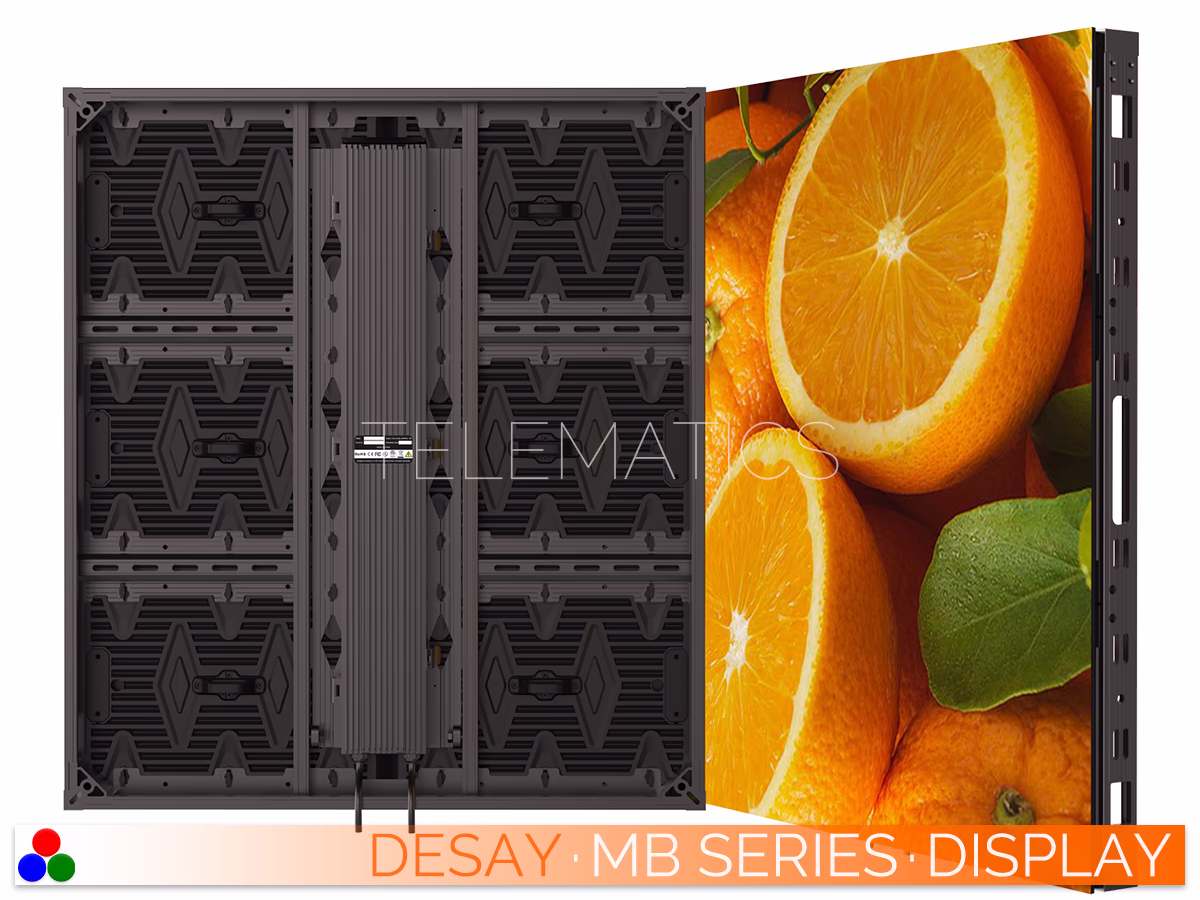

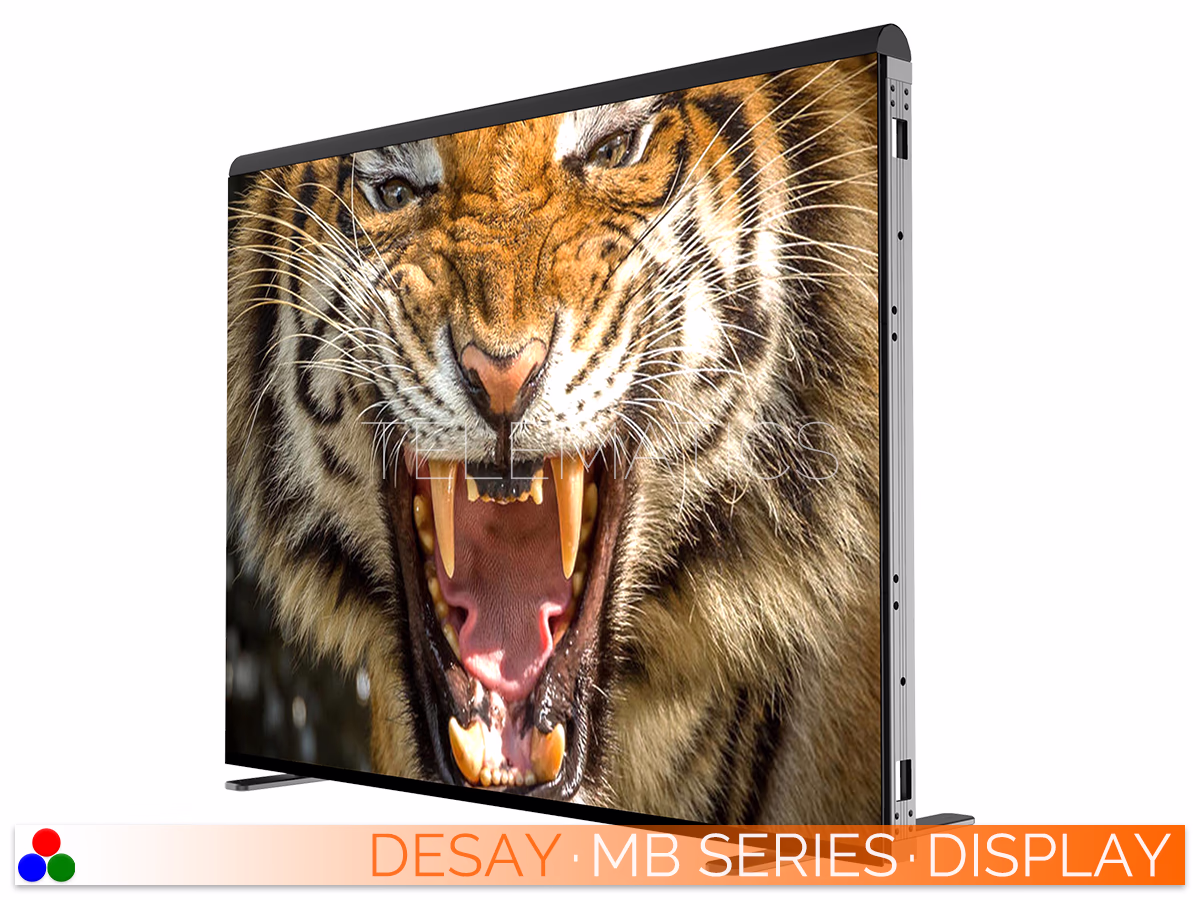

The MB Series is an aluminum installation panel weighing just 22 kilograms with x·y·z dimensions of 800 × 900 × 92 millimeters. Panel heights of 600 and 1200 millimeters and widths of 1200 millimeters can be specified.

Our standard configuration provides for a natural 16:9 or 4:3 display or most any other aspect ratio.

Schematics

We provide our Engineers with a detailed description of your project. They provide mechanical and electrical drawings based on your Desay Series selection and configured to best match the parameters of the installation.

Those drawings are generated in industry-standard Adobe PDF and Autodesk DWG formats to share with your team.

Lamps

MB Series panels are outdoor-equipped with 5,000 to ≥ 6,500 candelas/m2 of fully-adjustable brightness from a selection of copper and gold Nationstar SMD lamps.

Refresh rates are set at up to 3840 Hz for broadcast video. 140° of indirect viewing means that everyone in your audience can see the MB Series whether they are coming or going.

Options

Once you have selected a Desay Series display that provides the resolution and brightness you need for your target audience, we have a short list of options to consider.

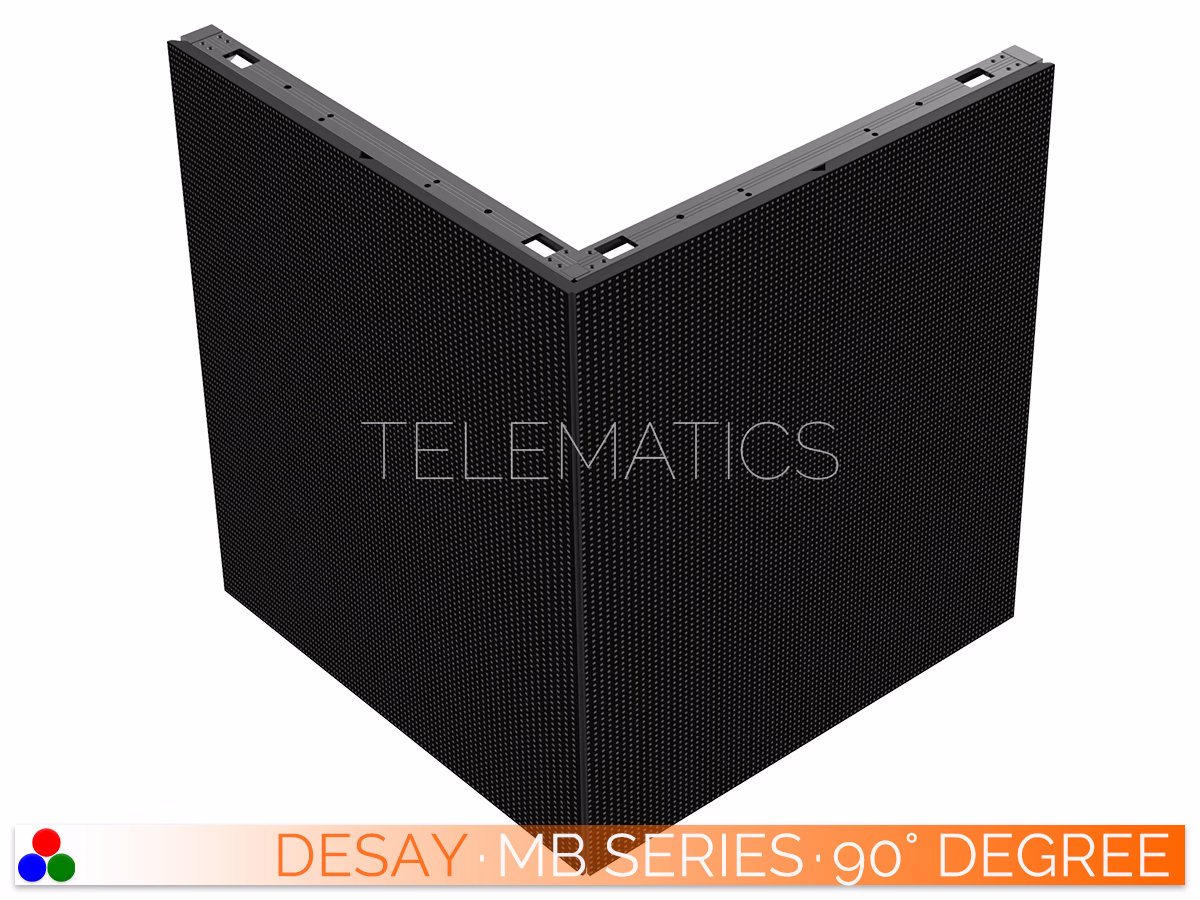

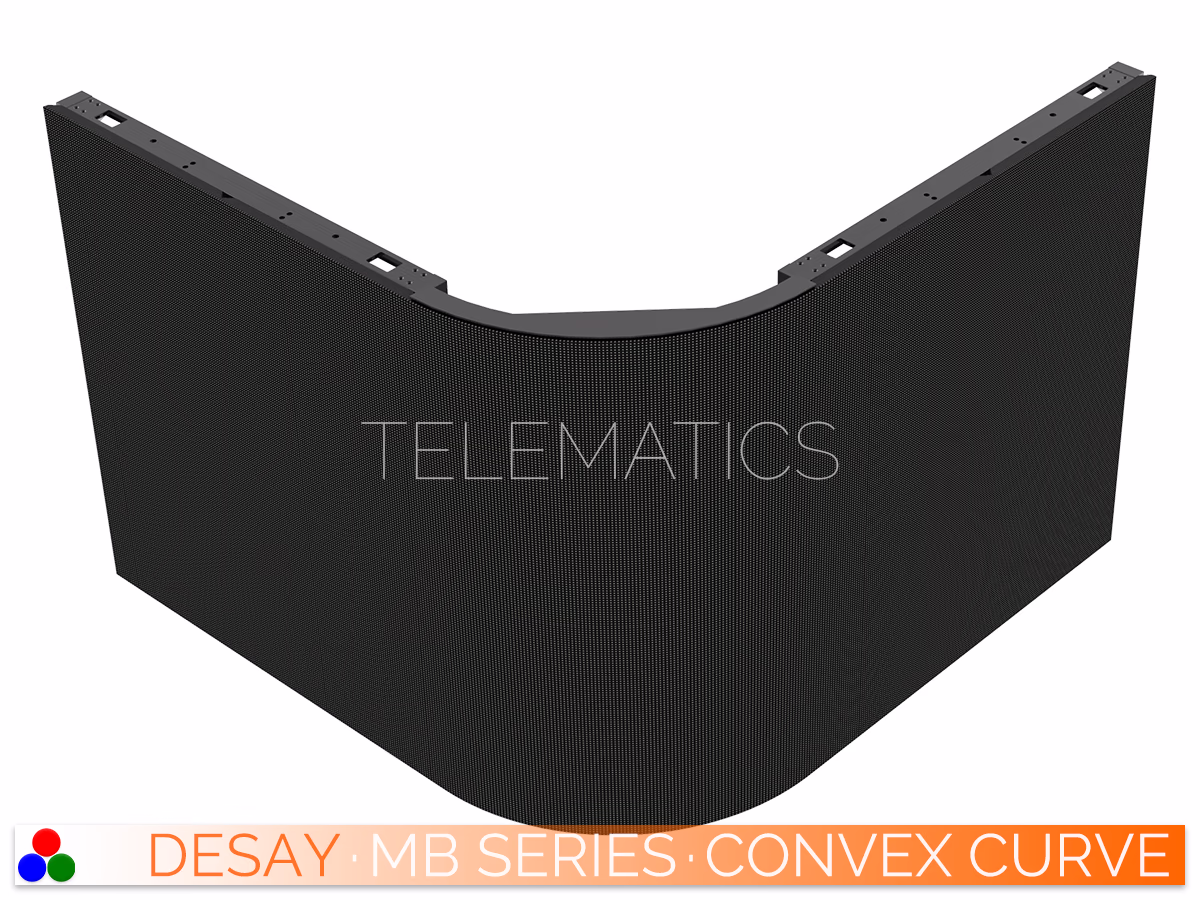

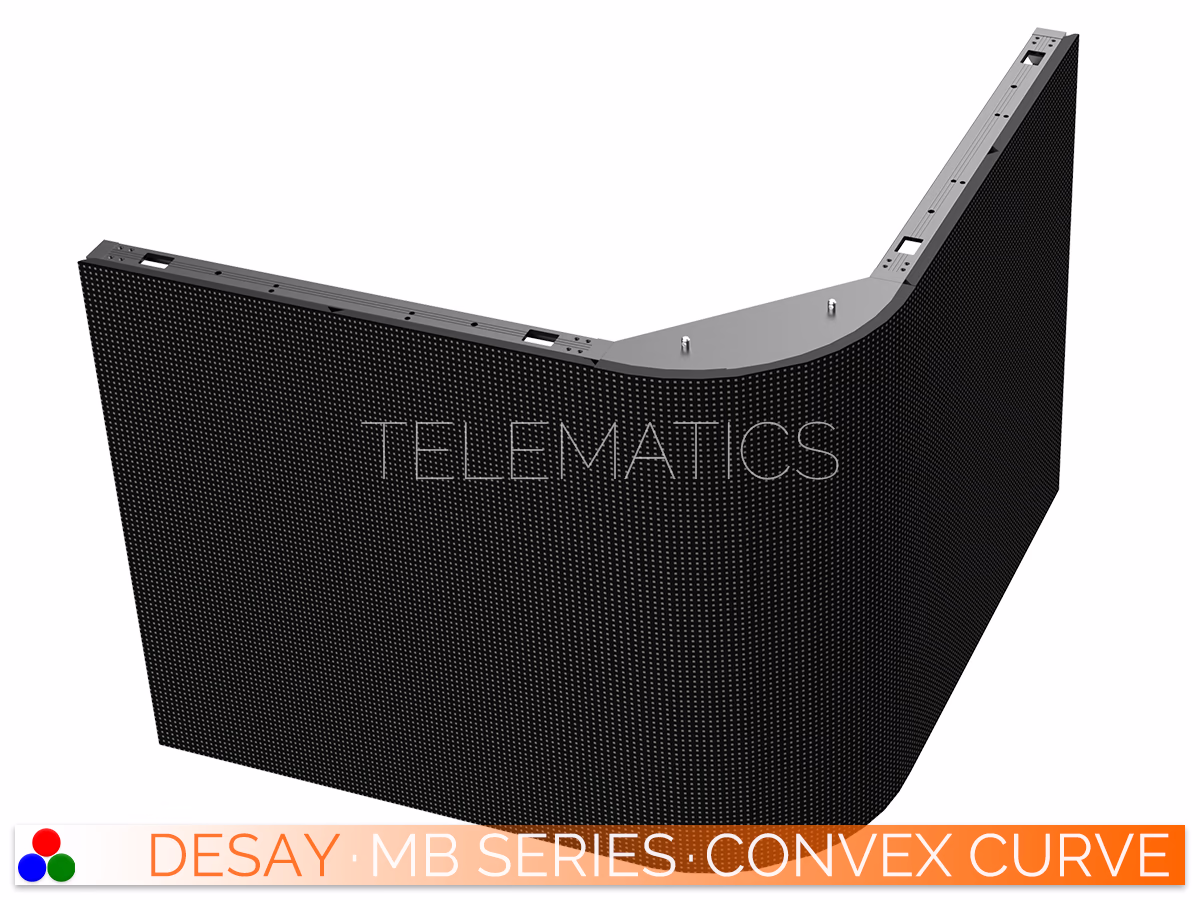

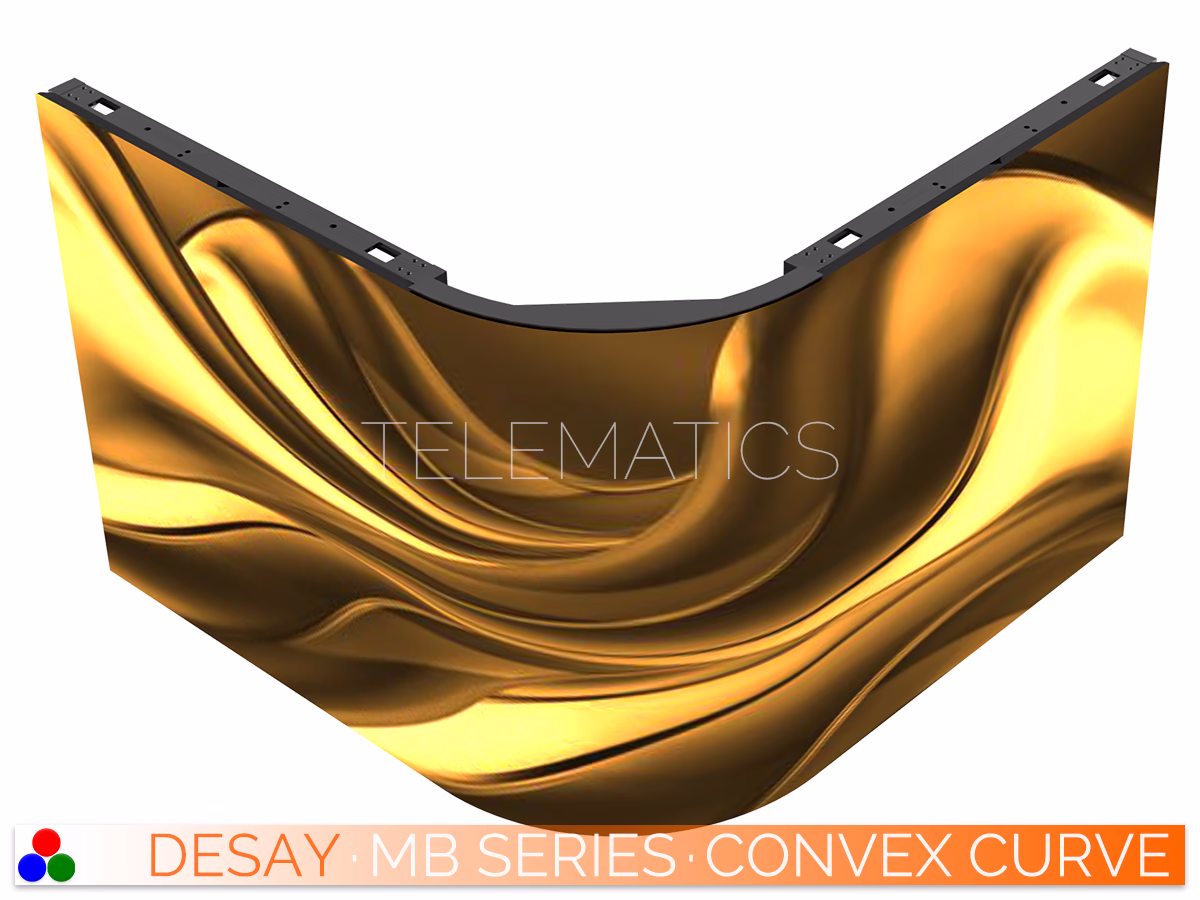

We offer custom panels with corners and contours, frames and rigging, spare components and warranty extensions. Pretty much anything you need. Just ask.

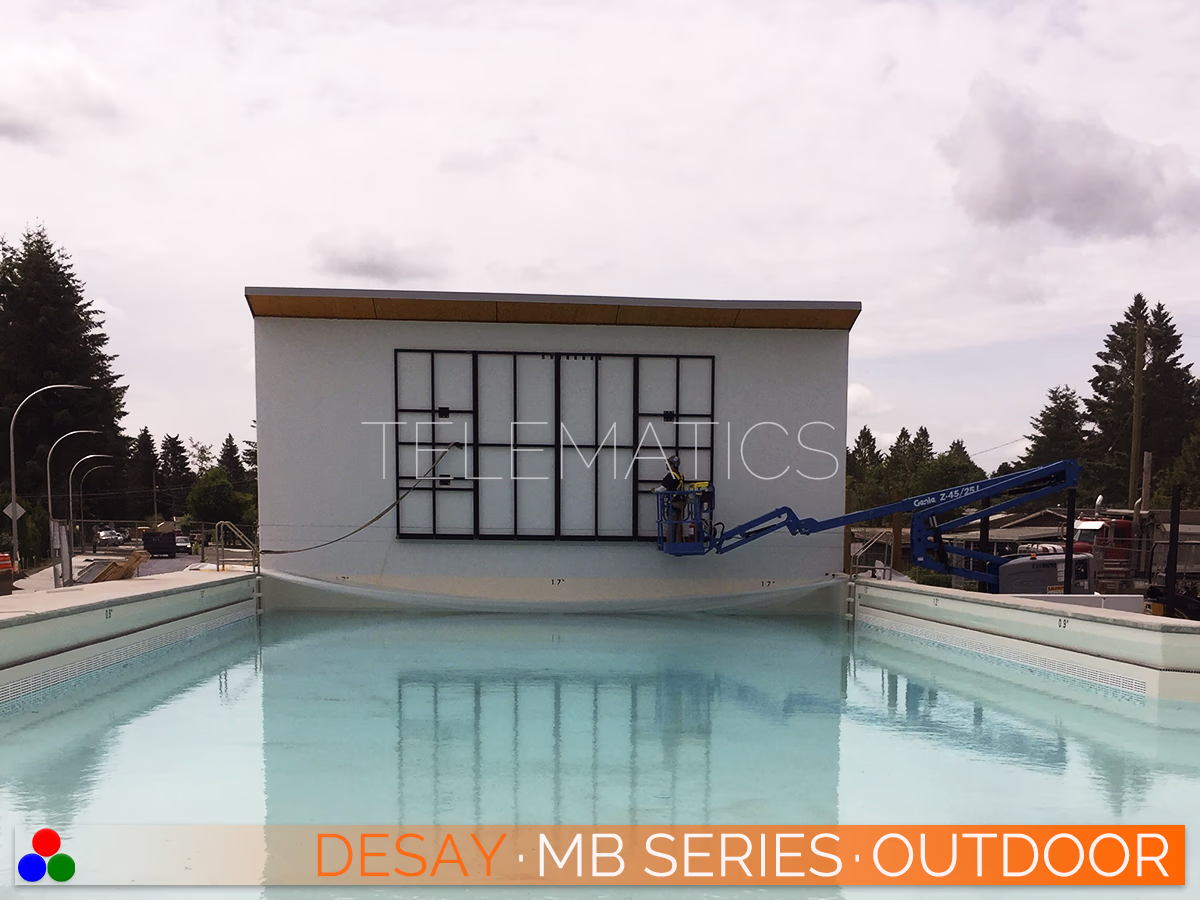

Installation

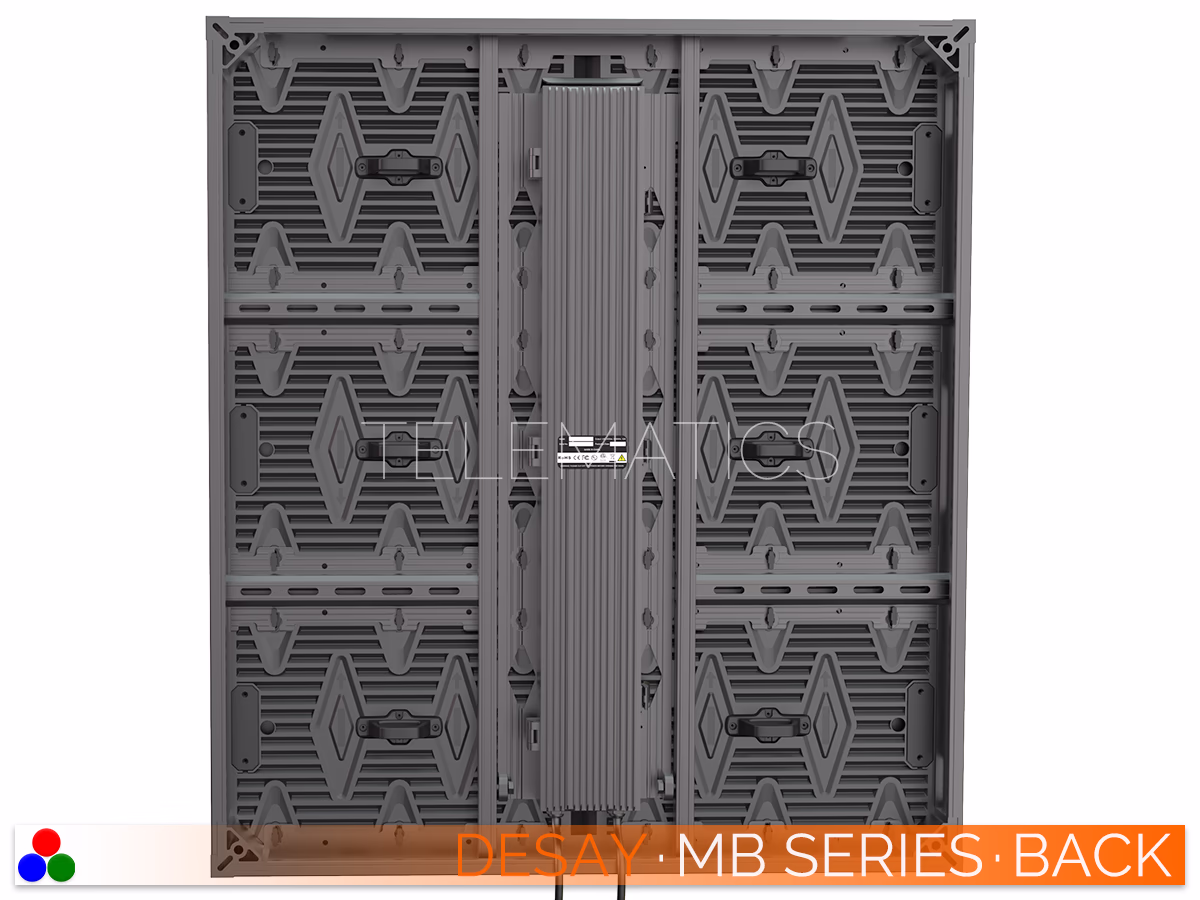

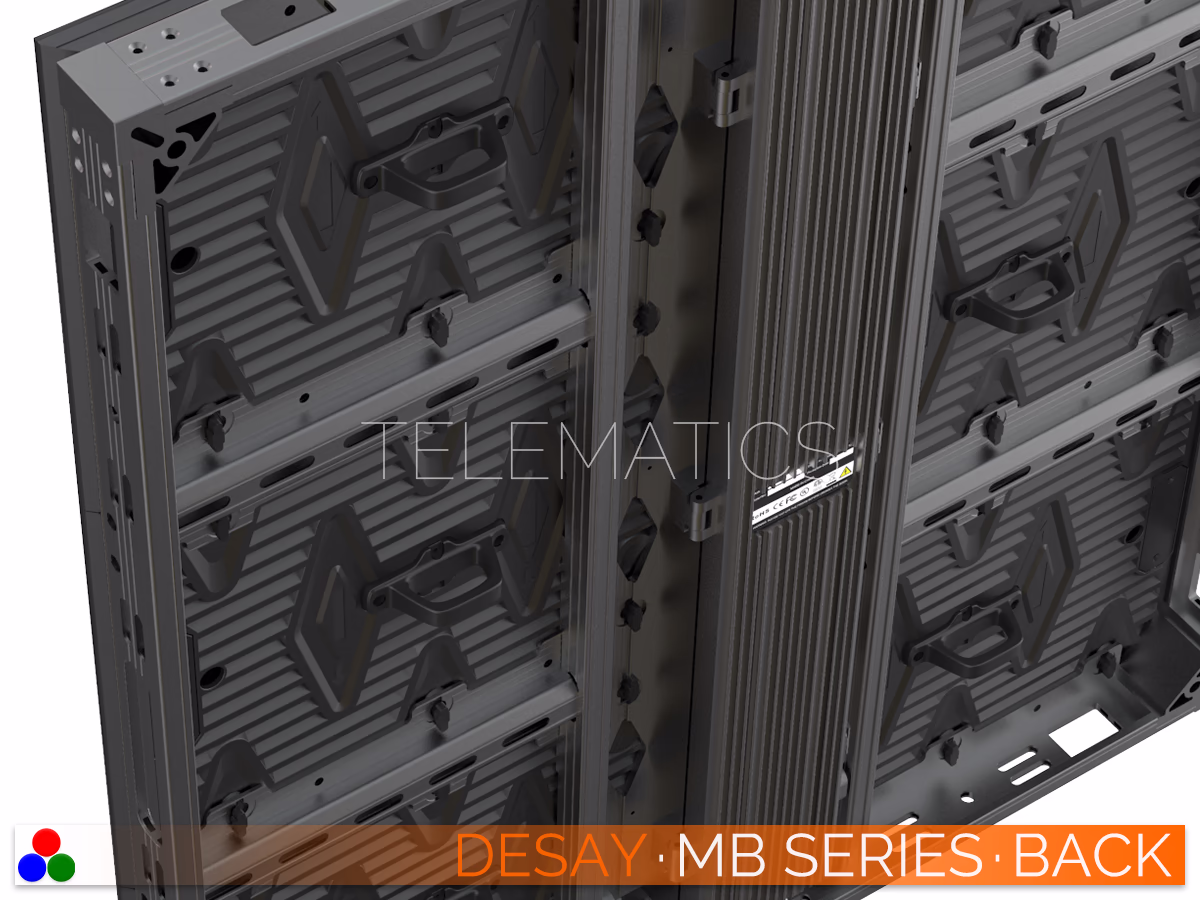

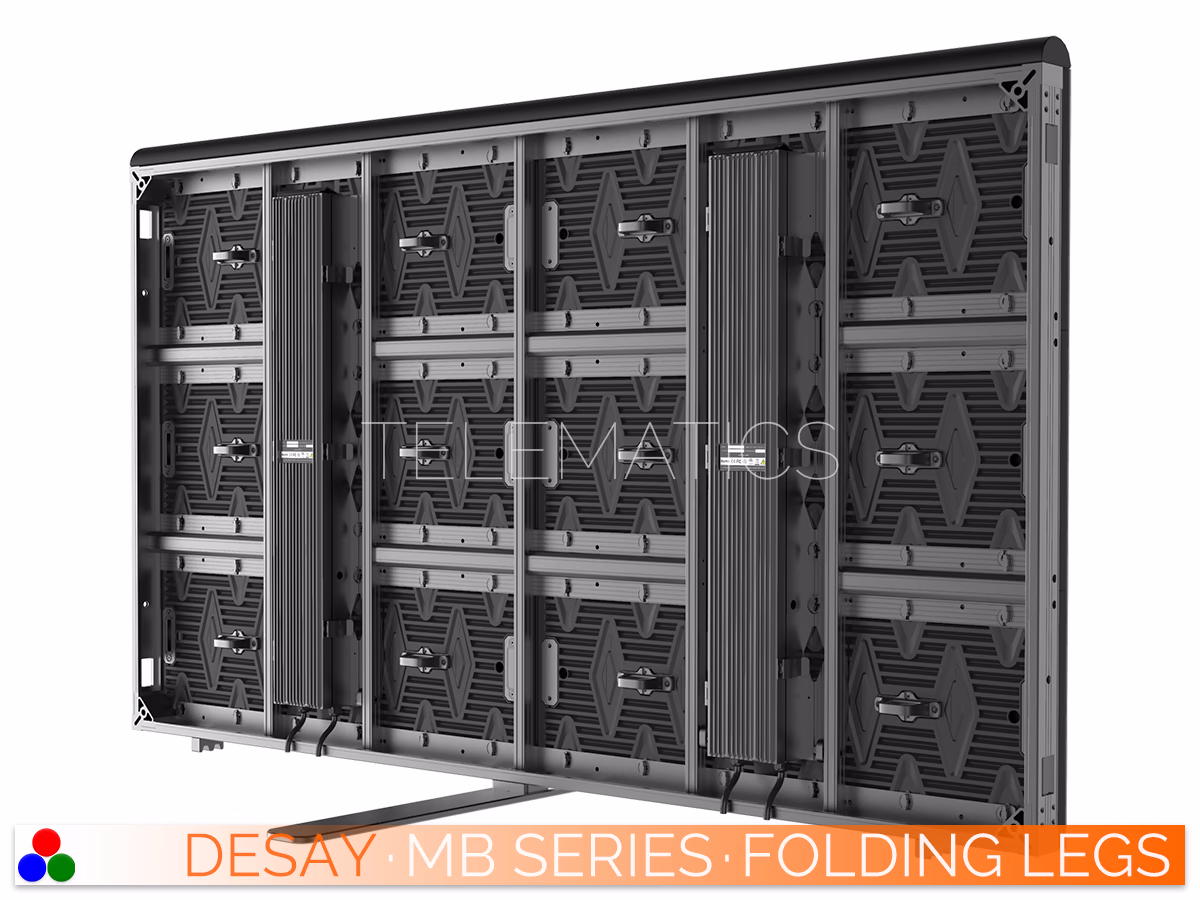

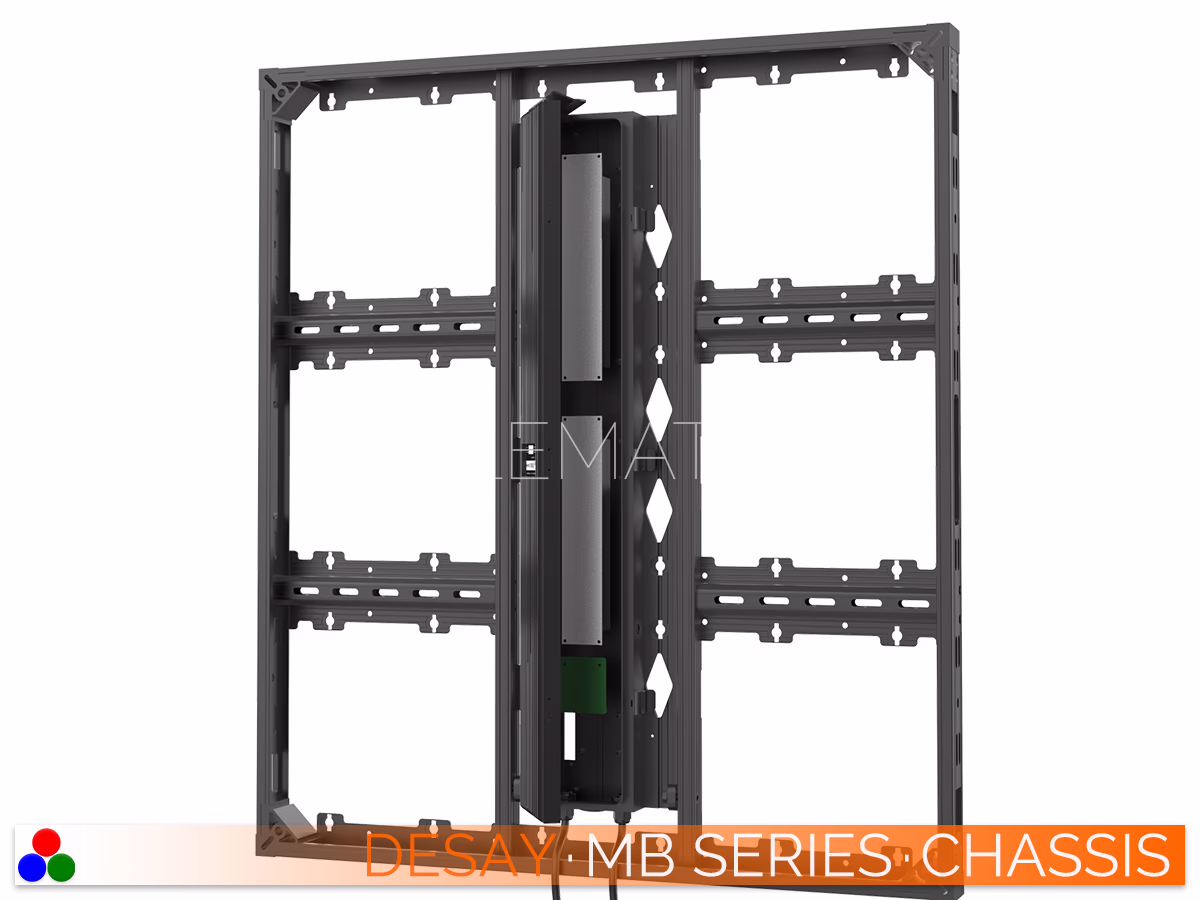

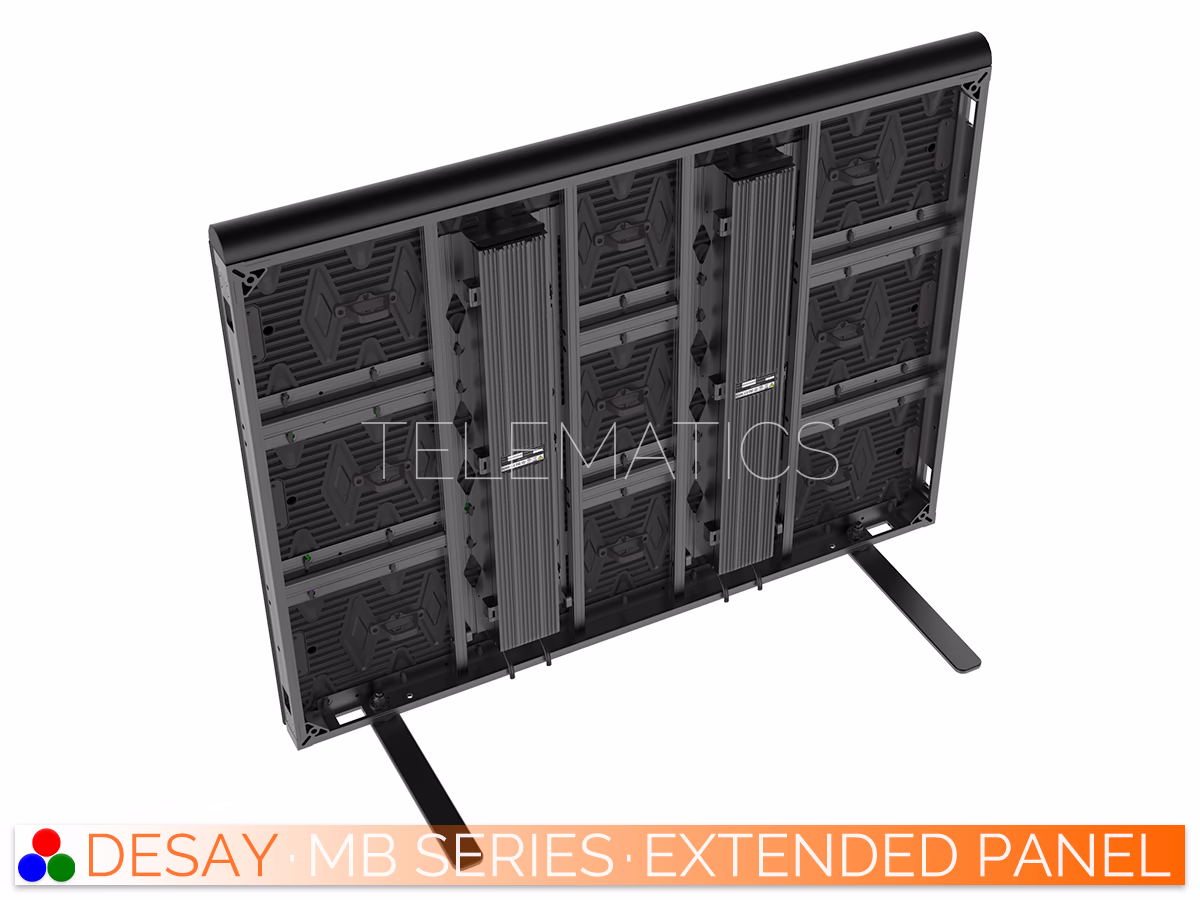

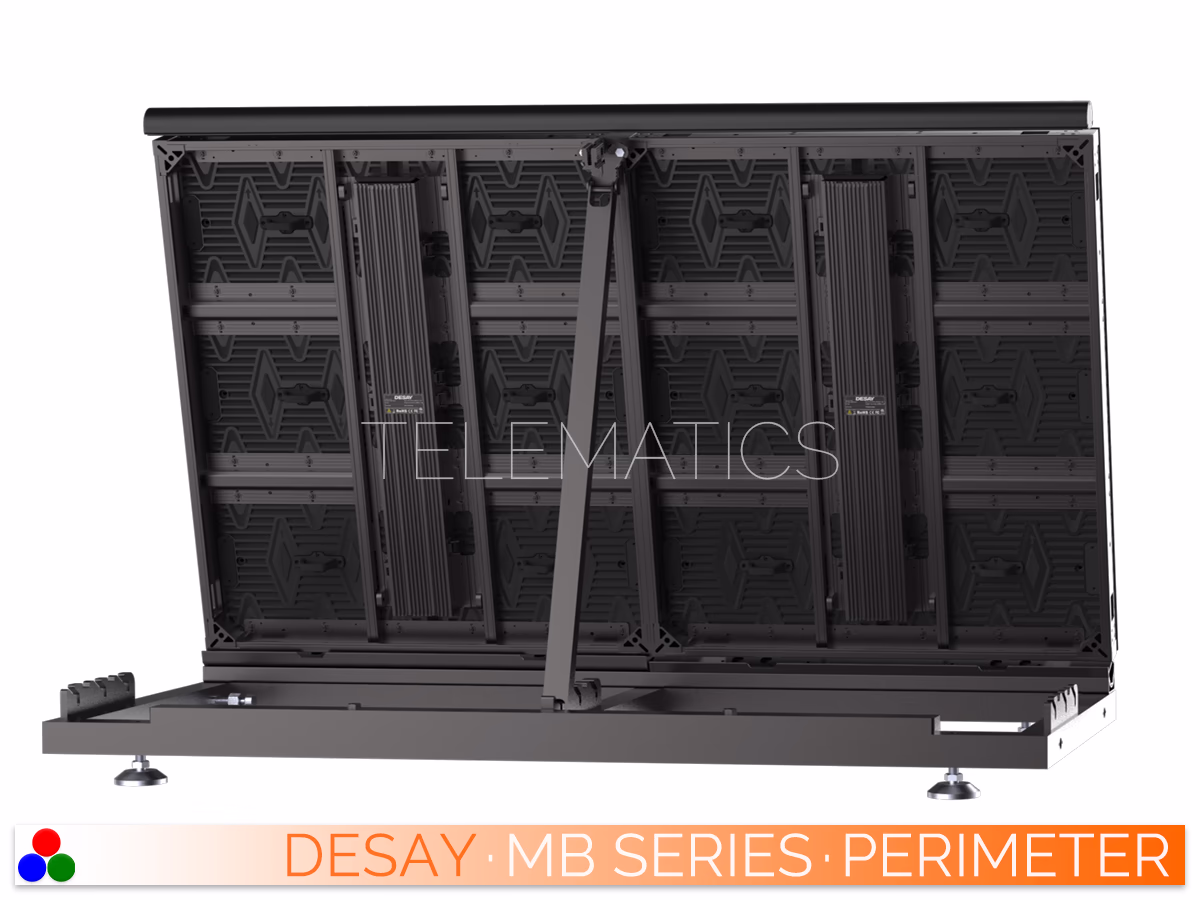

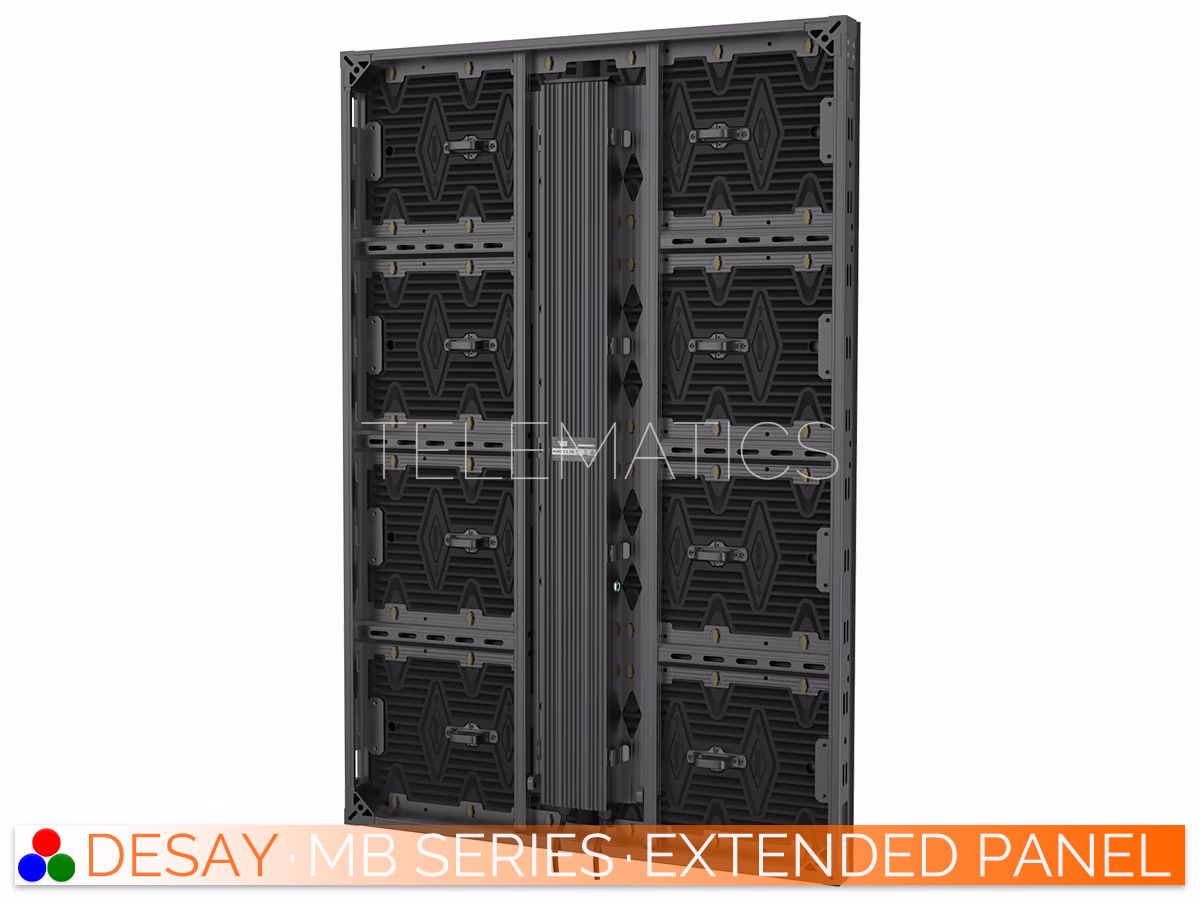

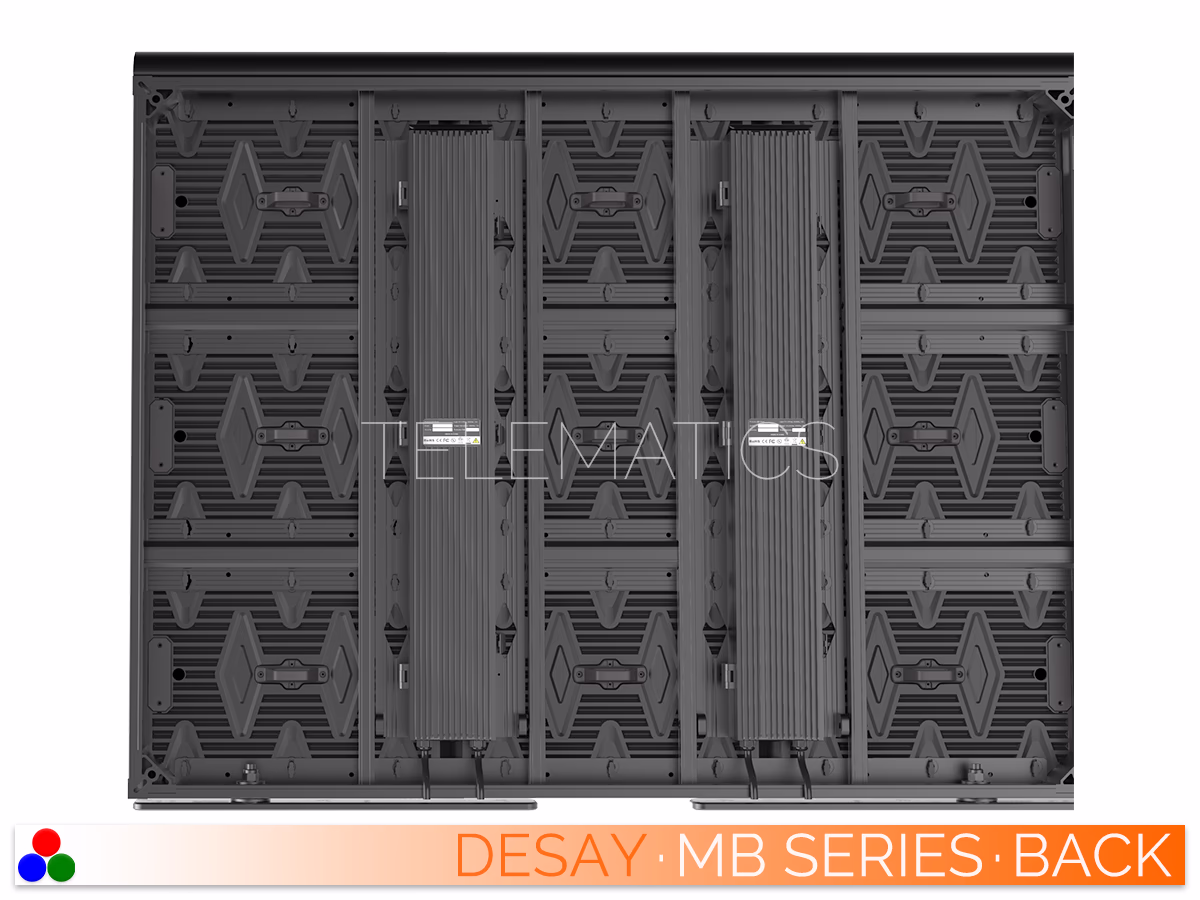

The MB Series is bolted at each corner to your frame. Power and data cabling is hidden away within the panel and out of the elements.

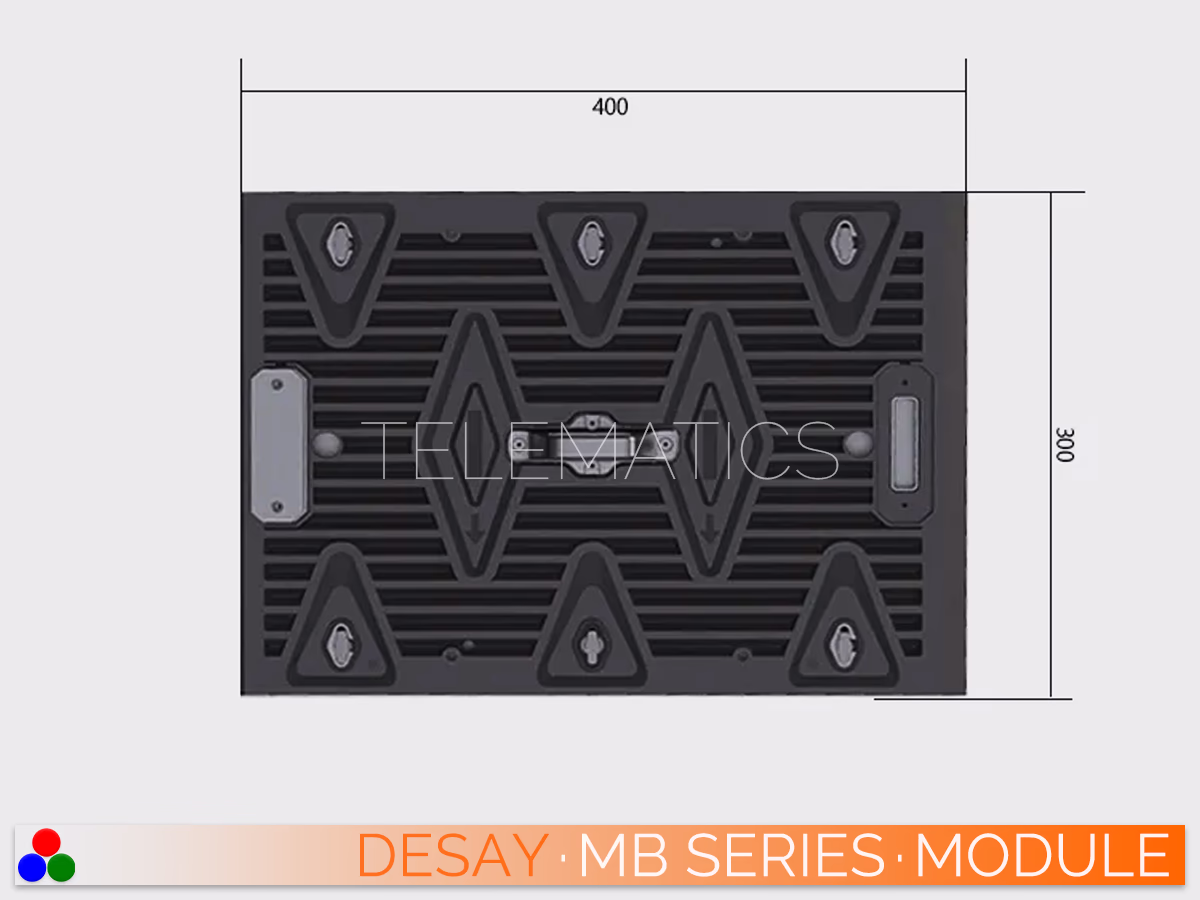

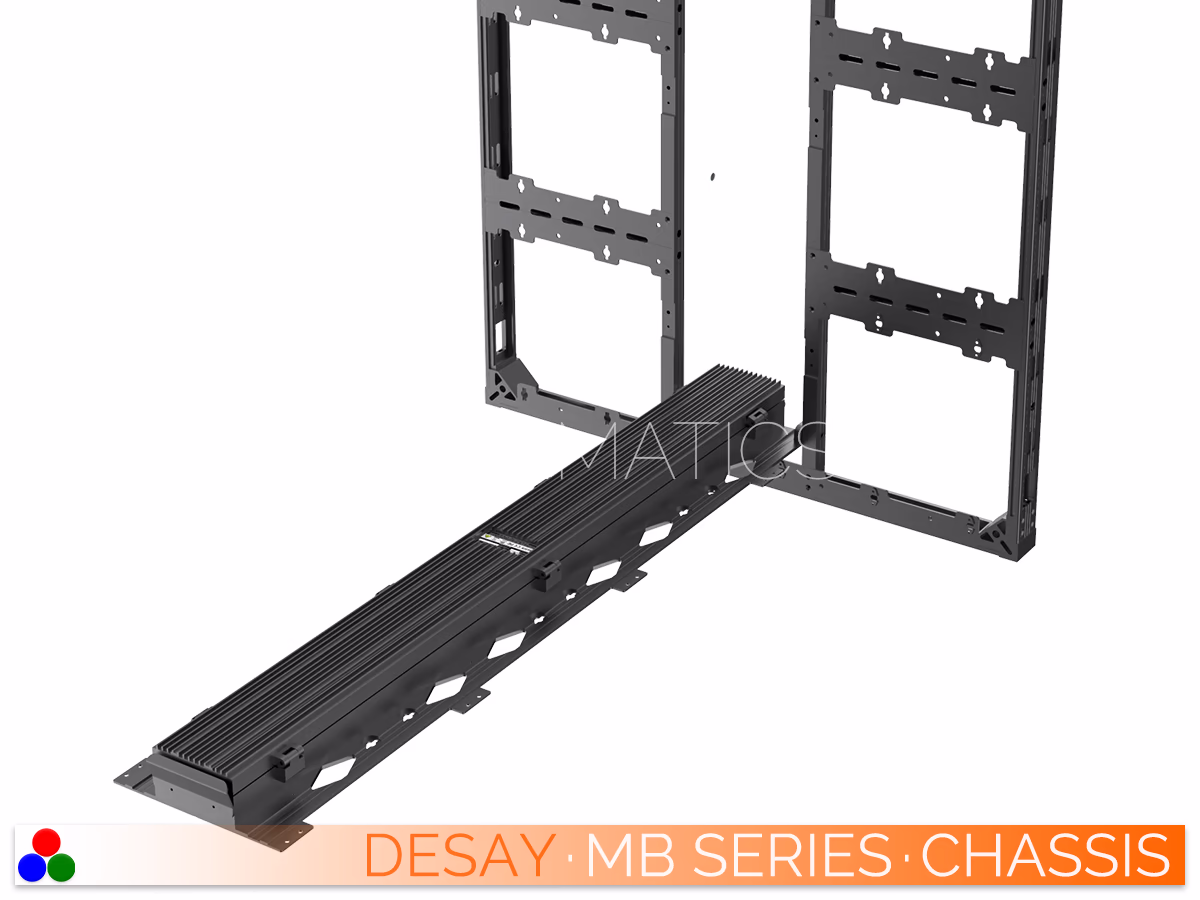

Modules are installed or removed with a hexagon wrench and a magnetic clamp, and the power box hinges forward for efficient front service. Easy peasy.

Cards

The MB Series relies on NovaStar's Armor and COEX receiver cards combined with Vision Management Platform software to provide Dynamic Booster, Full Grayscale Calibration and Image Booster functions to your display.

VMP supports Image Enhancement and frame-by-frame Pixel Analysis to reduce power consumption by >20%.

Quotes

We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.

At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.

Performance

Every redn × greenn × bluen lamp creates many times more color combinations than our eyes can see, along with an abundance of silky smooth shades of grey.

Display life is projected to be 100,000 hours or about 11 years of full-time use. Which means we look forward to hearing from you again sometime in 2037.

The Specifications· Modules ·· Prices ·· Extras ·· Pixels ·· Dimensions ·· Catalogs ·Desay · MB Series

Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead

MB Series
3.846
6.250
8.333
10.000
12.500
16.666
Panels · m²
1415 · white smd cu · ≥ 5000 cd/m²
1415 · white smd au · ≥ 5000 cd/m²
1515 · black smd cu · ≥ 3500 cd/m²
1515 · white smd cu · ≥ 6000 cd/m²
2727 · white smd cu · ≥ 6000 cd/m²
2727 · white smd au · ≥ 6000 cd/m²
2727 · white smd cu · ≥ 7500 cd/m²
2727 · black smd au · ≥ 4000 cd/m²
2727 · white smd au · ≥ 7500 cd/m²
3535 · white smd cu · ≥ 5000 cd/m²
3535 · white smd au · ≥ 5000 cd/m²
3535 · white smd au · ≥ 6500 cd/m²
Cards · Controllers
card · novastar armor · a8s-n 1 card per panel
card · novastar armor · a10s pro 1 card per panel
controller · novastar · ku20 3,900,000 pixels
controller · novastar · vx400 pro 2,600,000 pixels
controller · novastar · vx1000 pro 6,500,000 pixels
controller · novastar · mx30 6,500,000 pixels
Extras · Options

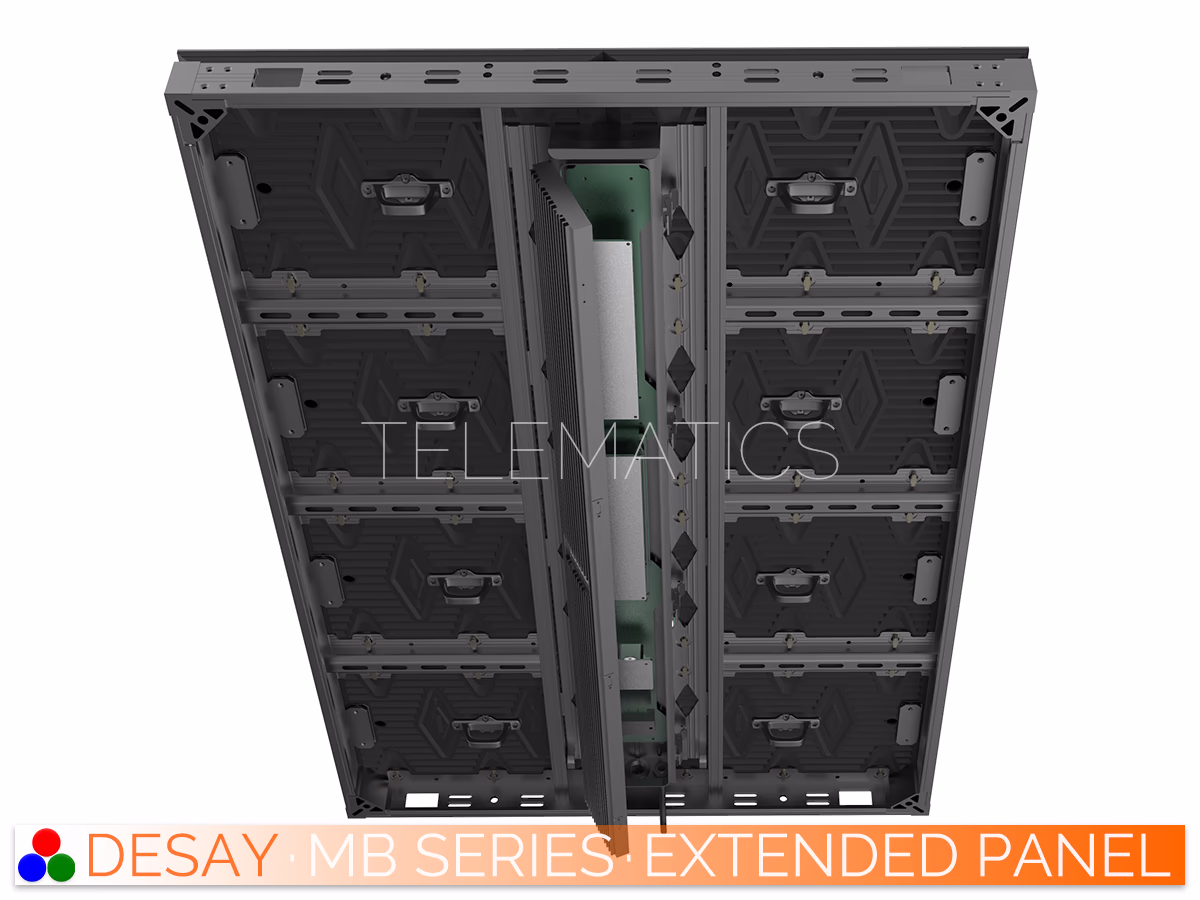

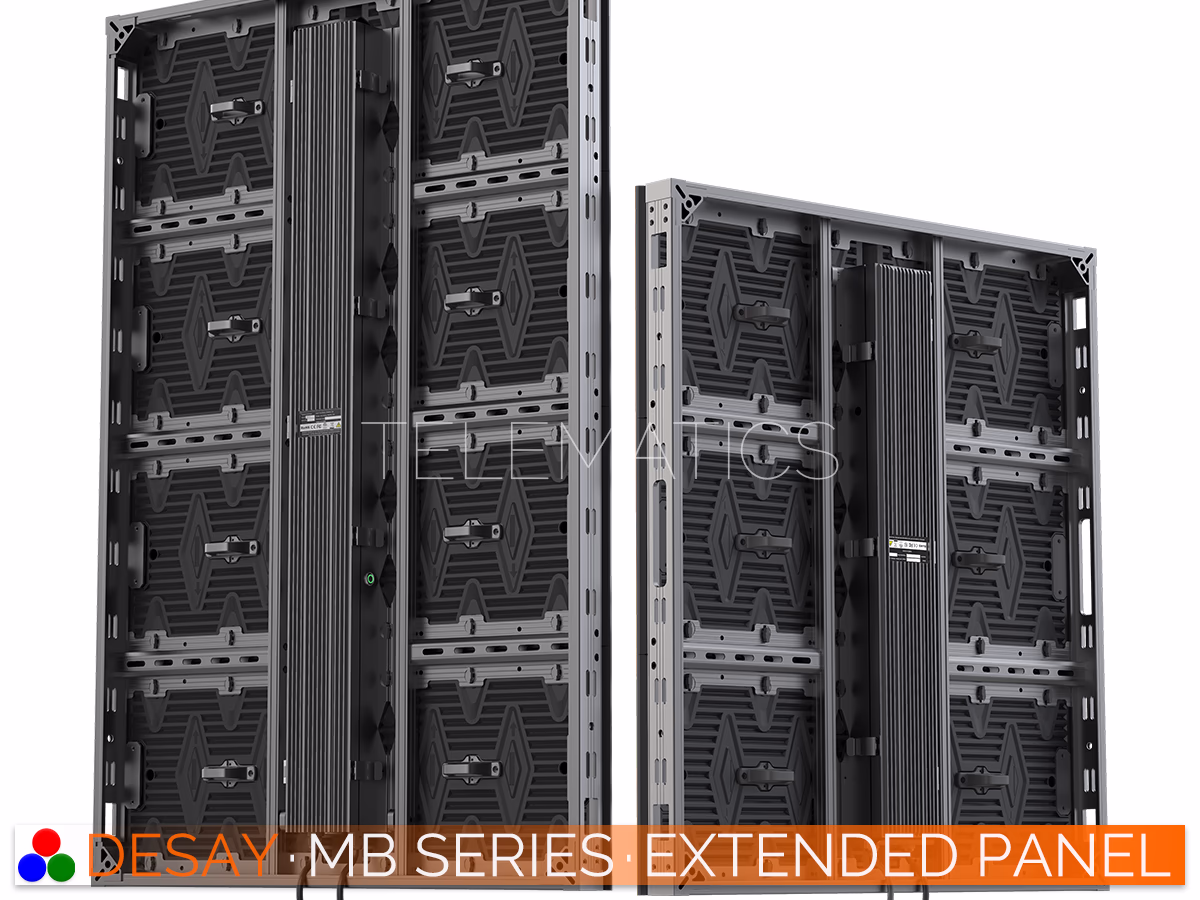

panel · 800 × 900 × 112 standard · m²
panel · 800 × 1200 × 112 standard · m²
panel · 800 × 600 × 112 optional · m²
panel · 1200 × 900 × 112 standard · m²
panel · 1200 × 1200 × 112 standard · m²
panel · 1200 × 600 × 112 optional · m²

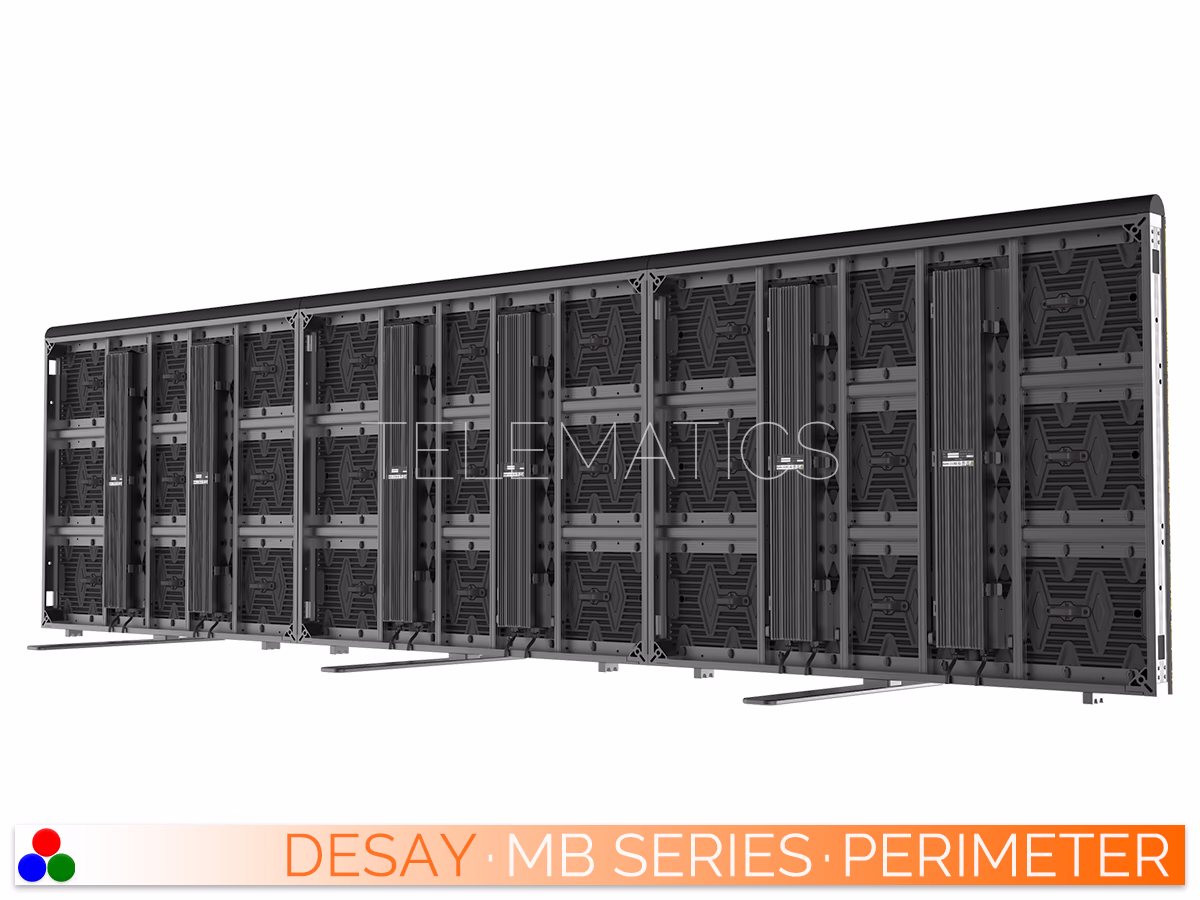

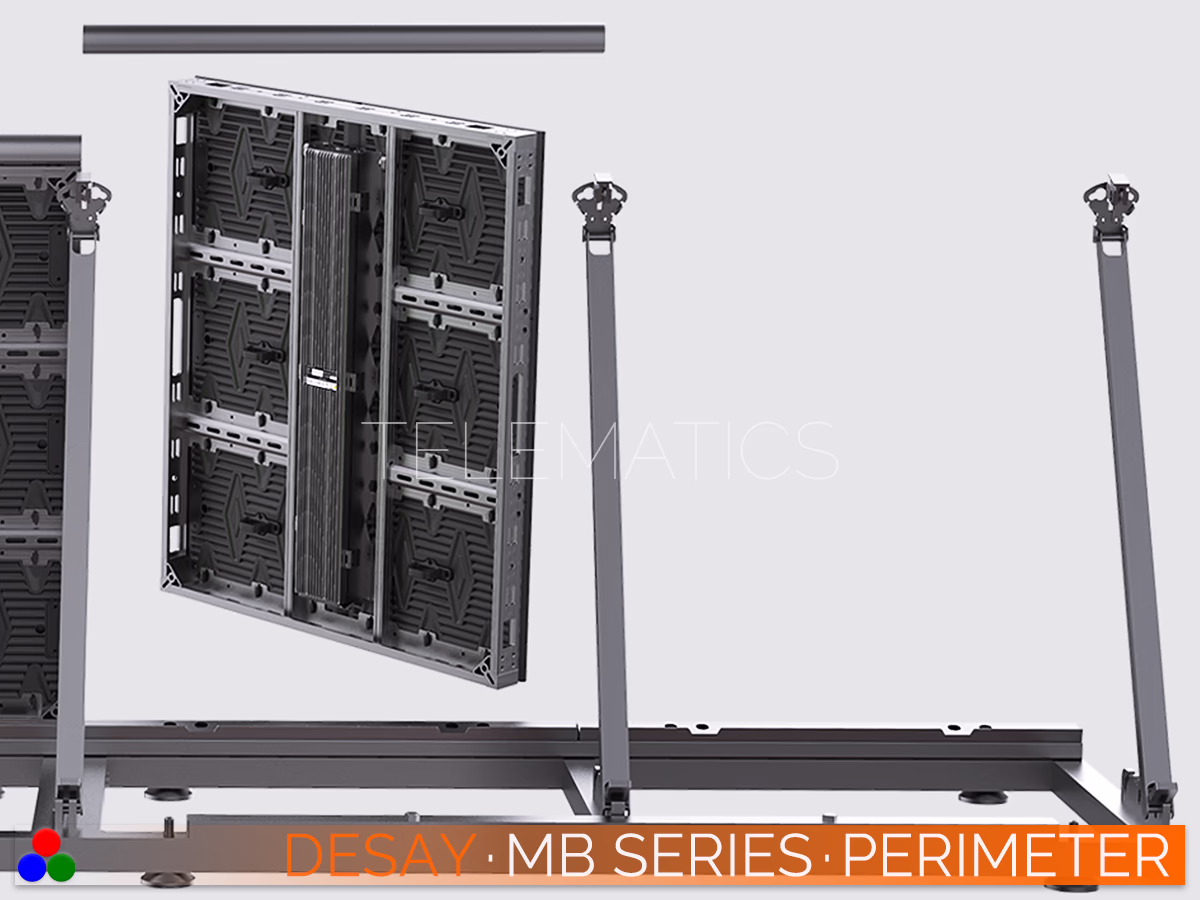

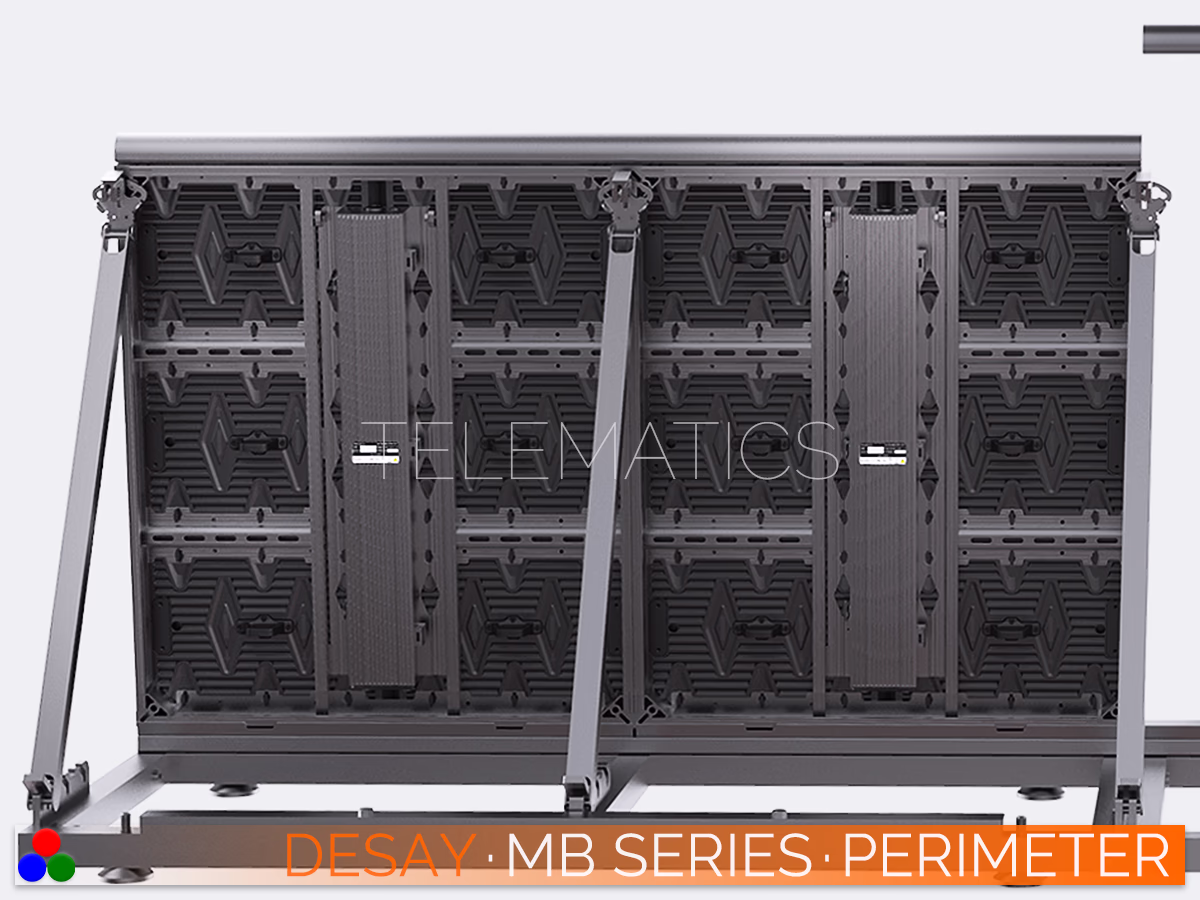

rigging · perimeter simple · m²
rigging · perimeter complex · m²
rigging · french cleat 18mm · m²
rigging · aluminum extrusion 40mm · m²

The Configurator· Our Pixels ·· Our Widths ·· Our Heights ·· Our Sizes ·· Our Powers ·· Our Options ·· Our Warranties ·· Our Freight ·· Our Prices ·· Our Quotes ·Desay · MB Series

Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson

Cards · Controllers

Extras · Options

Software
software · vmp configure · customize · manage
software · novalct configure · map · calibrate
software · viplex content · create · schedule
software · v-can switch · layer · preset
cloud · vnnox media publish · schedule
cloud · vnnox care manage · monitor
Documents
pdf · specifications hardware · power · dimensions
pdf · manual install · operate · troubleshoot

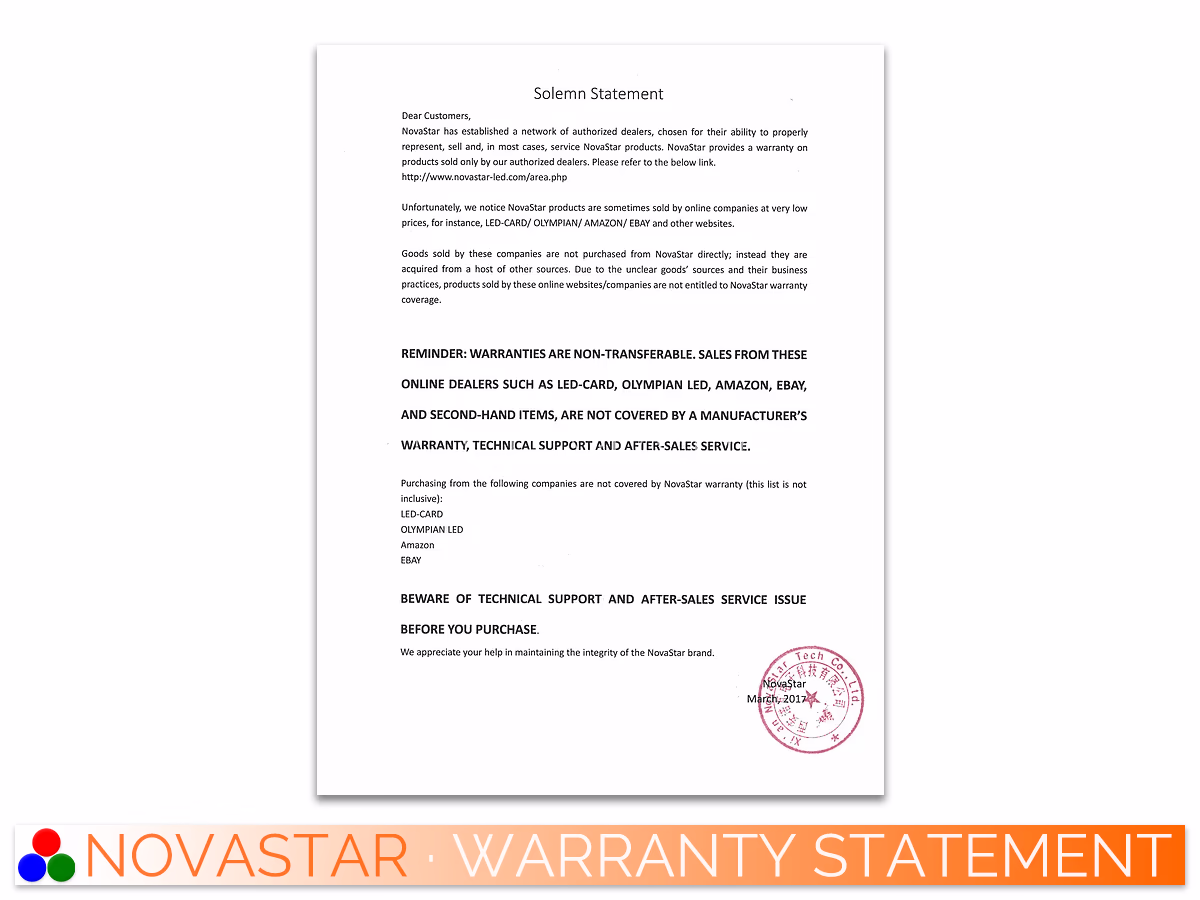

files · factory warranty standard · extended
files · fine print legal · certifications

The Sales Pitch· About Us ·· About The MB ·· About Desay ·Desay · MB Series

Dreaming, after all, is a form of planning. ~ Gloria Steinem

About Telematics Canada

Telematics Canada is a federally incorporated company based in Vancouver since 2000.

Our global partners manufacture premium direct-view LED displays for almost every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationships with manufacturers and low corporate profile allow us to provide aggressive pricing and personalized service to a worldwide network of principals and project managers in the audio-visual and digital signage industries.

For more than 25 years, we have developed business relationships with thousands of people from every corner of the world.

Many are AV professionals and consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are architects and designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. Some are businesses that select and install their own systems with the assistance of local tradespeople and engineers.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective, and reliable.

And we always keep their secrets to ourselves.

About Desay

Desay Opto: A Global Leader in Optoelectronics

Desay Opto, a public corporation (002920) with a nine billion dollar market valuation, has quietly emerged as an industry leader in the optoelectronics sector. Ranked #1 in Asia and #3 worldwide for the past decade, Desay's Optoelectronic division has achieved remarkable success, with annual sales measured in tens of thousands of panels and cabinets.

Extensive Manufacturing Capabilities

Desay boasts three industrial zones with a total area exceeding one and a half million square meters. The company's headquarters, factory, and offices are located in Huizhou, with additional offices in Shenzhen. This extensive manufacturing footprint enables Desay to develop and produce some of the highest-quality LED displays in the world, earning the company a well-deserved reputation for excellence.

Cutting-Edge Technology

Desay's success is driven by its leading technology in Optoelectronic Control and Non-linear Alignment Techniques. By combining these technologies with rapid image compensation and point-to-point image data processing technology, Desay balances the light intensity of the frame, creating vivid pictures and distinct gradations. This results in an immersive experience for viewers, both indoors and outdoors.

Moreover, Desay has developed and patented the most advanced pixel enhancement technique in the industry. This system can improve the resolution of a full Desay display by a factor of four without degrading the contrast, further enhancing the visual experience.

Uncompromising Quality

Desay understands that cutting corners on build quality can have long-term consequences. While some manufacturers may opt for low-grade two-layer PCBs with tin plating and flammable materials to reduce costs, Desay chooses four- to six-layer boards with gold plating and fire retardants. This commitment to quality ensures that Desay's displays are not only superior but also safer, longer-lasting, and require less service, ultimately providing greater value to customers.

As Sir Henry Royce famously said, "The quality will remain long after the price is forgotten." Desay's advanced engineering and precise manufacturing processes result in outstanding products that embody this philosophy, solidifying the company's position as a global leader in optoelectronics.

Desay MB Series

Outdoor Display Technology

The Desay MB Series provides outdoor digital signage with pixel-to-pixel spacing from 10.000 to 3.846 millimeters. This configuration integrates up to 67,600 SMD lamps per square meter, maintaining visual clarity in challenging outdoor environments.

Brightness and Visibility

Engineered for outdoor deployment, the MB Series delivers an adjustable brightness range of 5,000 to over 6,500 candelas/m². Utilizing premium copper and gold Nationstar SMD lamps, the system ensures content legibility day or night. With a wide 140° viewing angle and refresh rates up to 3840 Hz, the MB Series guarantees a flawless visual experience for all observers, regardless of their position.

Intelligent Content Management

The MB Series utilizes NovaStar Armor receiver technology integrated with ViPlex Express and Taurus media players. This ecosystem supports cloud-based publishing via VNNOX and real-time oversight through CARE display monitoring services for comprehensive remote control.

Panel Design and Configuration

The MB Series features durable aluminum panels weighing 22 kilograms with standard dimensions of 800 × 900 × 92 millimeters. Panels can be configured to achieve standard 16:9 or 4:3 aspect ratios or customized to meet specific outdoor site requirements.

Customization and Support

Desay provides customization options including bespoke panel shapes, specialized framing, and rigging solutions. Our team delivers precise quote turnarounds and detailed schematics in standard industry formats to ensure structural integration with existing infrastructure.

Installation and Maintenance

The MB Series is designed for straightforward installation and maintenance, featuring a bolt-at-corner mounting system that securely attaches panels to your frame. Power and data cabling are cleverly concealed within the panel, protected from the elements. The innovative design allows for easy module installation or removal using a simple hexagon wrench and magnetic clamp, while the hinged power box enables efficient front access for servicing. This thoughtful engineering ensures your display remains operational with minimal downtime, promising over a decade of impactful visual communication for your brand.

The Portfolio· Our Photos ·· Our Videos ·· Our Projects ·Desay · MB Series

Seeing is believing, but feeling is the truth. ~ Thomas Fuller

The Frequently Asked Questions· Who· What· When· Where· Why· How?

Seeing is believing, but feeling is the truth. ~ Thomas Fuller

Frequently Asked Questions

Telematics Canada Inc. is an authorized factory distributor for Huizhou Desay Intelligent Technology Co., Ltd. and Xi'an NovaStar Tech Co., Ltd..

With over 25 years of operation as a federally incorporated Canadian entity, we serve as the direct commercial link between the manufacturer and the North American market. We provide the legal standing for contracts, import logistics, and authorized warranty execution for both brands.

What do you need? And what do you want?

You need a high-performance, high-quality LED display at a price that meets your budget.

You want it delivered sooner, not later. You want the installation to go smooth and fast and deployed without headaches.

And you need your investment to be backed by a solid warranty from a world-class manufacturer with local support from a domestic distributor.

Which is exactly what we offer.

When do you need it?

With few exceptions, every Desay Series display is custom-built for your specific project. This takes time, but the schedule is precise.

We design the display to match your exact installation parameters, generating schematics and wiring diagrams for your approval.

Manufacturing, performance testing, and packaging require three to four weeks. Freight adds one week by air or one month by sea. Also, China has a generous number of holidays throughout the year that can delay production scheddules.

With more than 20 years experience with this process, our advice is always the same: do not wait until the last minute before ordering.

So far, no one has taken our advice.

Where is everyone?

Don't you hate trying to figure out where everyone you want to work with is located? Why is that ever even a question?

Telematics Canada has offices in Vancouver, BC and in Montreal, QC, Canada. Our full contact information is at the bottom of every page.

Desay Optoelectronics designs, develops, and manufactures the Desay Series in Huizhou City and Shenzhen, Guangdong Province, China.

Xi'an NovaStar Tech Co. designs and develops their control architecture at the Nova Science and Technology Park in Xi'an, Shaanxi Province, with additional direct sales and logistics operations in Shenzhen, Guangdong Province, China.

We look forward to hearing from you.

Why are we meeting like this?

Chances are you have followed a link to our site that started with a search for LED display systems or distributors, and some other terms that landed us on the front page.

We recently asked Gemini Deep Research: What is the current estimated number of LED display manufacturers in China?. Here is a snippet of that response:

Mapping the Specialized Manufacturing Tiers
I have successfully categorized the Chinese LED display industry into a defined hierarchy, identifying a core group of approximately 1,000 specialized manufacturers. While regional registries in hubs like Shenzhen often list over 10,000 LED-related entities, I've distinguished that the specialized display market consists of roughly 10-20 top-tier global leaders, followed by 100-200 mid-sized professional manufacturers, and a broader base of roughly 800 smaller assembly-focused shops. I’ve also clarified corporate structures, such as ROE Visual's position as a premium arm of a larger conglomerate and the specific optoelectronic focus of groups like Desay, to ensure the census reflects true full-service providers.

The number of choices in this industry is daunting. And only a handful of these manufacturers will be operating a decade from now.

With a market capitalization of 10 billion USD, Desay is one of those top-tier companies.

We look forward to hearing from you.

How do we proceed?

Our first step should be an introduction to your Team, or at least those tasked with initiating the project.

We can do so with a spontaneous phone call or schedule a Teams or Zoom meeting if that is your preference.

We will need to know if this will be () an indoor or outdoor LED display, () how close your audience will be, if the display is () a permanent or temporary installation, and () how soon do you need your LED display up and running.

With this information, we can quickly generate an estimated price range for your consideration and go from there.

We look forward to your call.
