Desay S Series LED Cabinets · 4.762 to 15.240mm ·
USD ⁞ The 2026 S Series is a medium-profile outdoor LED cabinet featuring direct-to-frame mounting options. The cabinet's custom dimensions are based on matching SMD or DIP modules to create most any aspect ratio while supporting 90° corners and contours for challenging displays. Your new Desay S Series LED display can be specified with premium NovaStar A8s-N cards and Taurus controllers.Perfectly Uneventful. Priced To Fit · USD /m²
Pixels

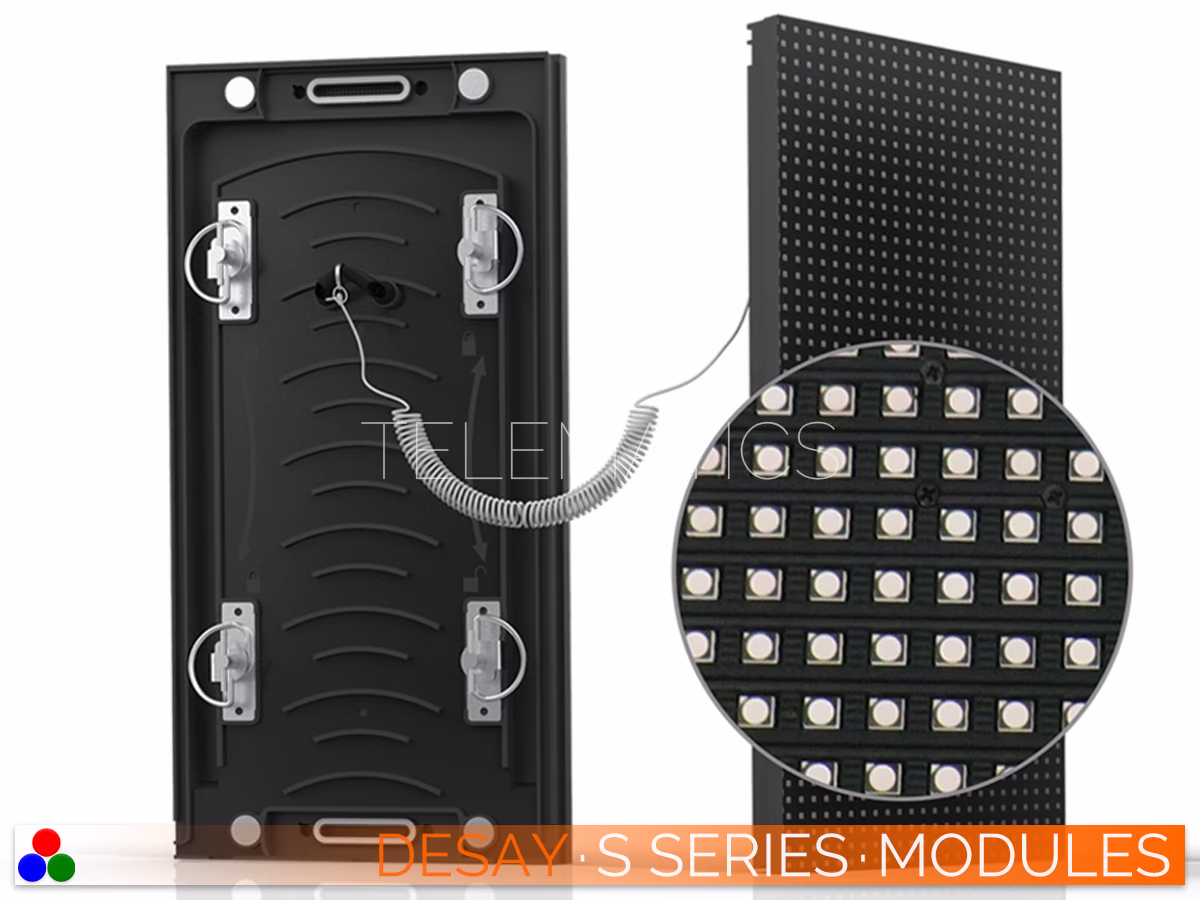

Pixel-to-pixel spacing ranges from 15.240 to a more compact 4.762 millimeters to create very bright outdoor displays that align up to 44,100 SMD and DIP lamps in a square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the S Series will look great from less than 5 steps away.
Dimensions

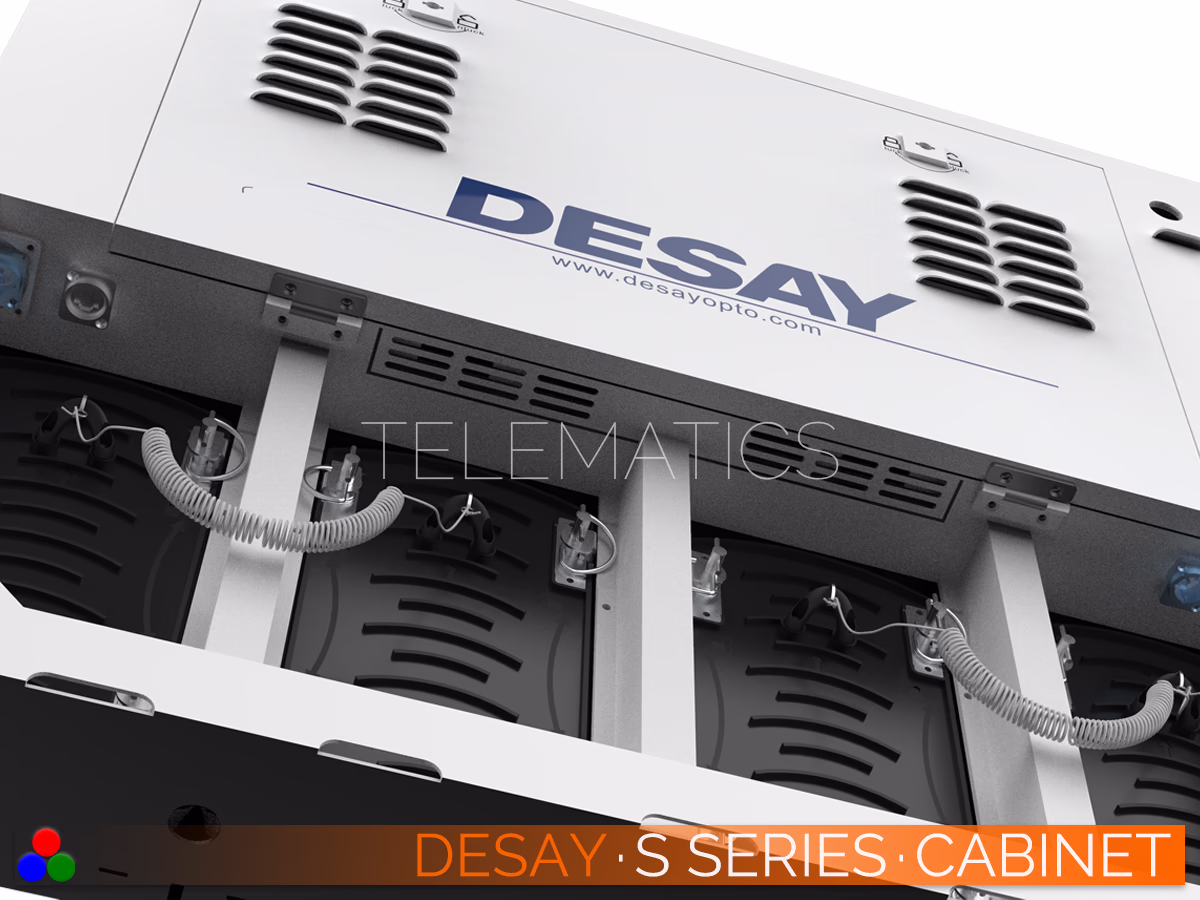

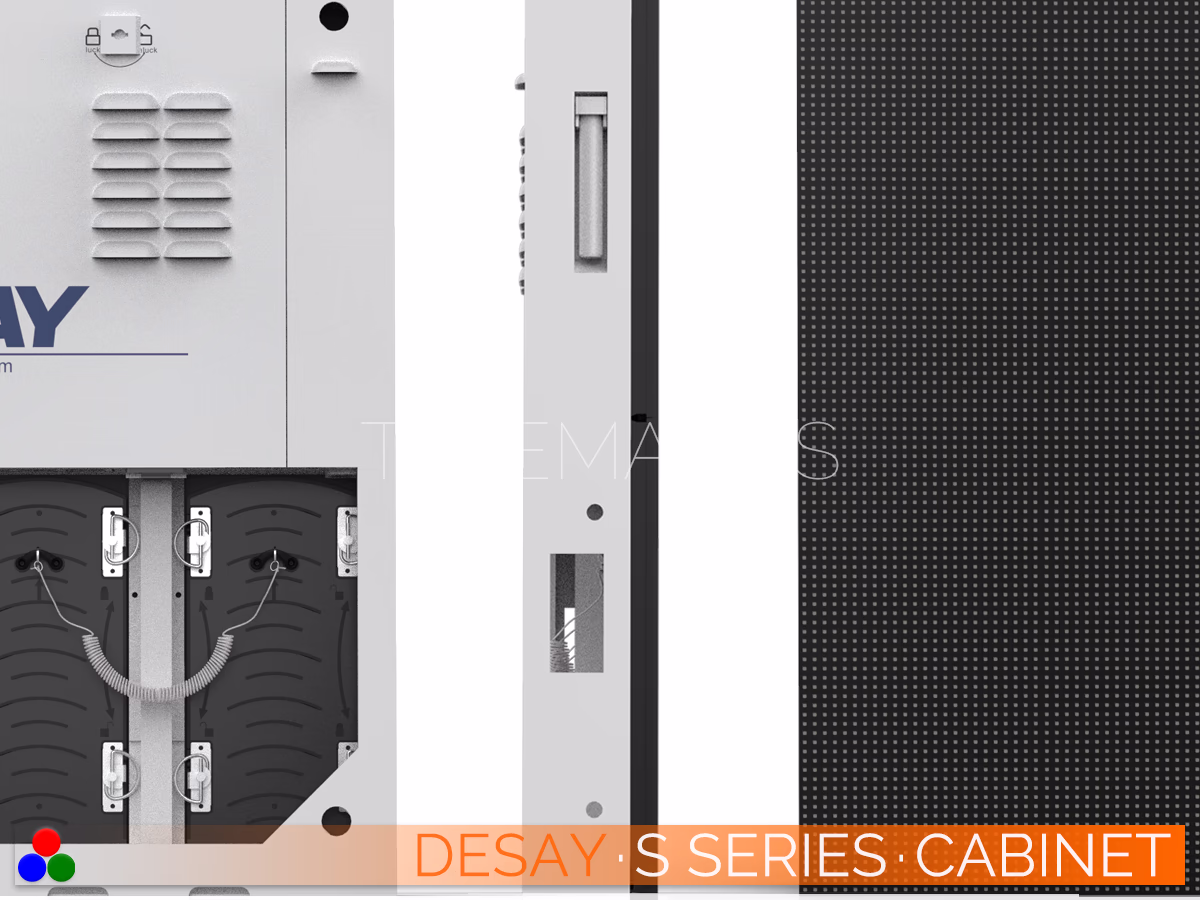

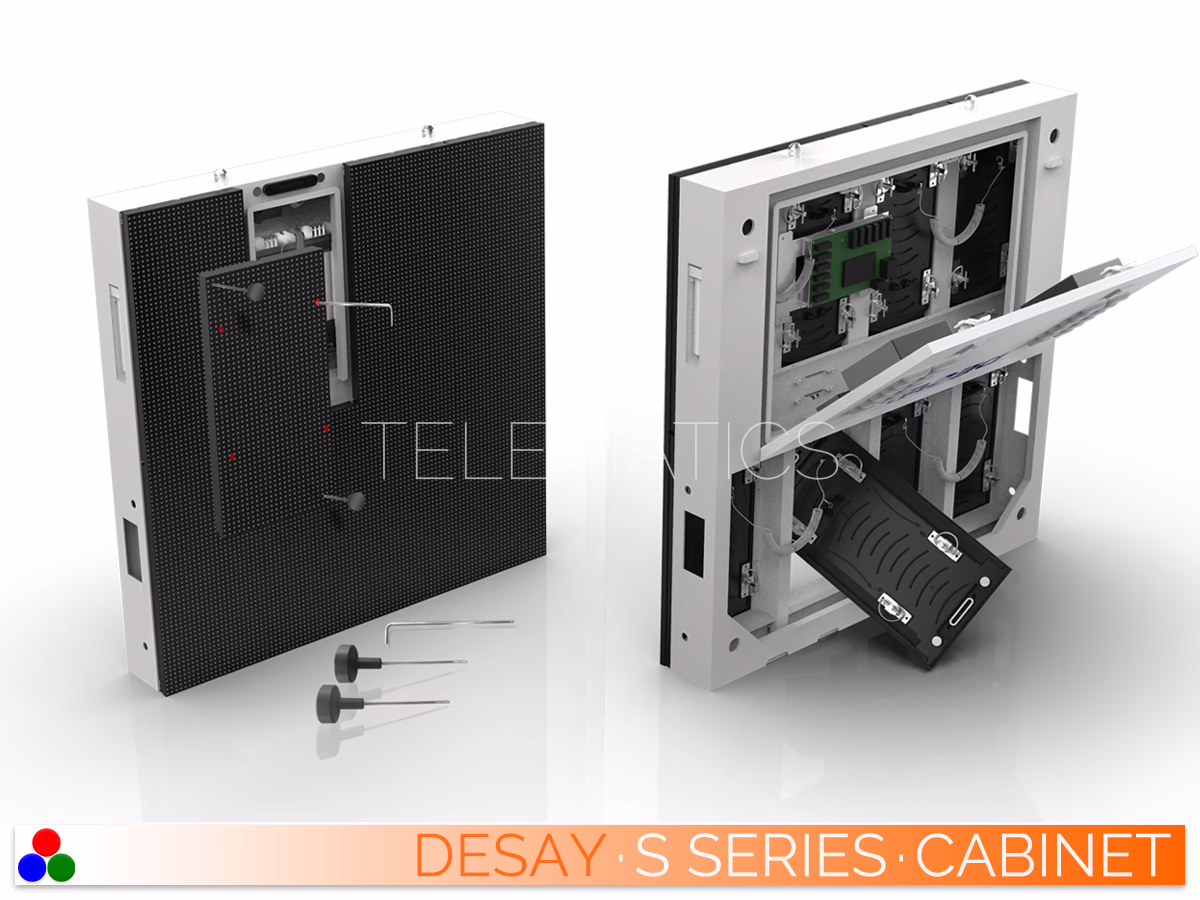

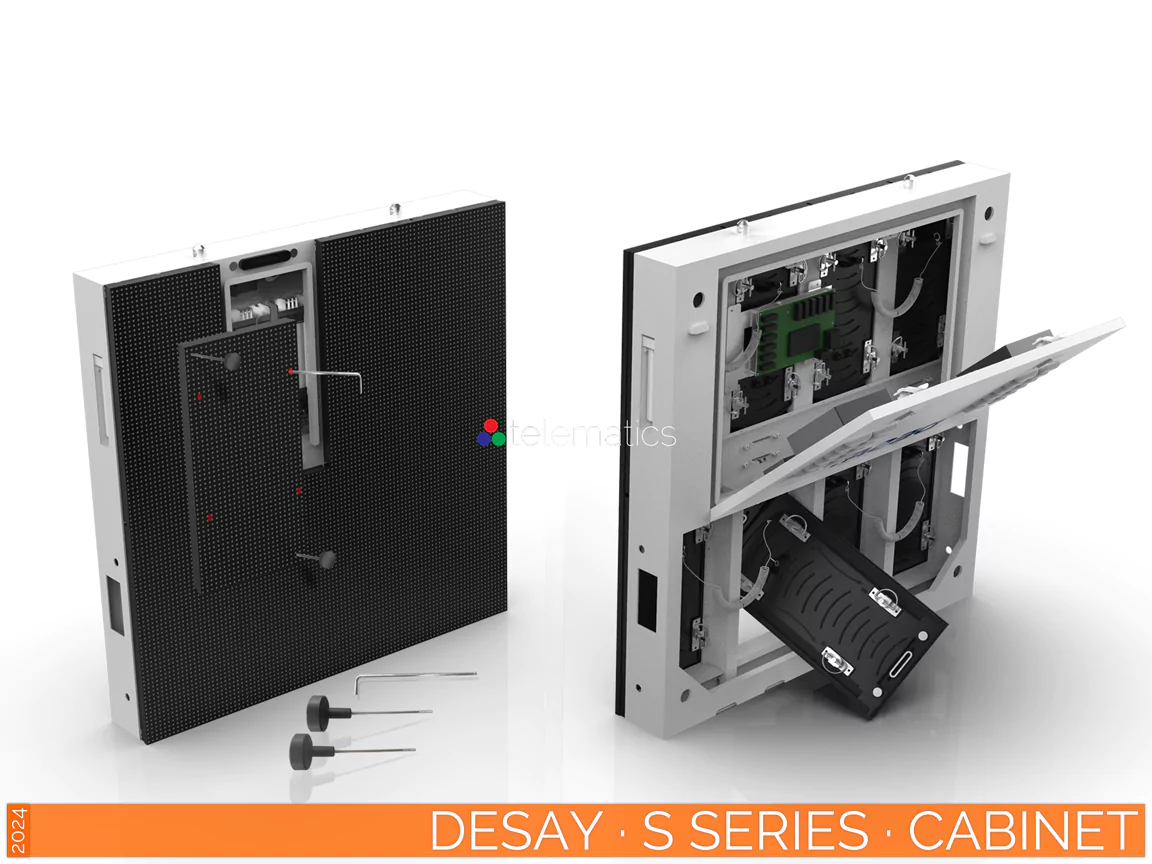

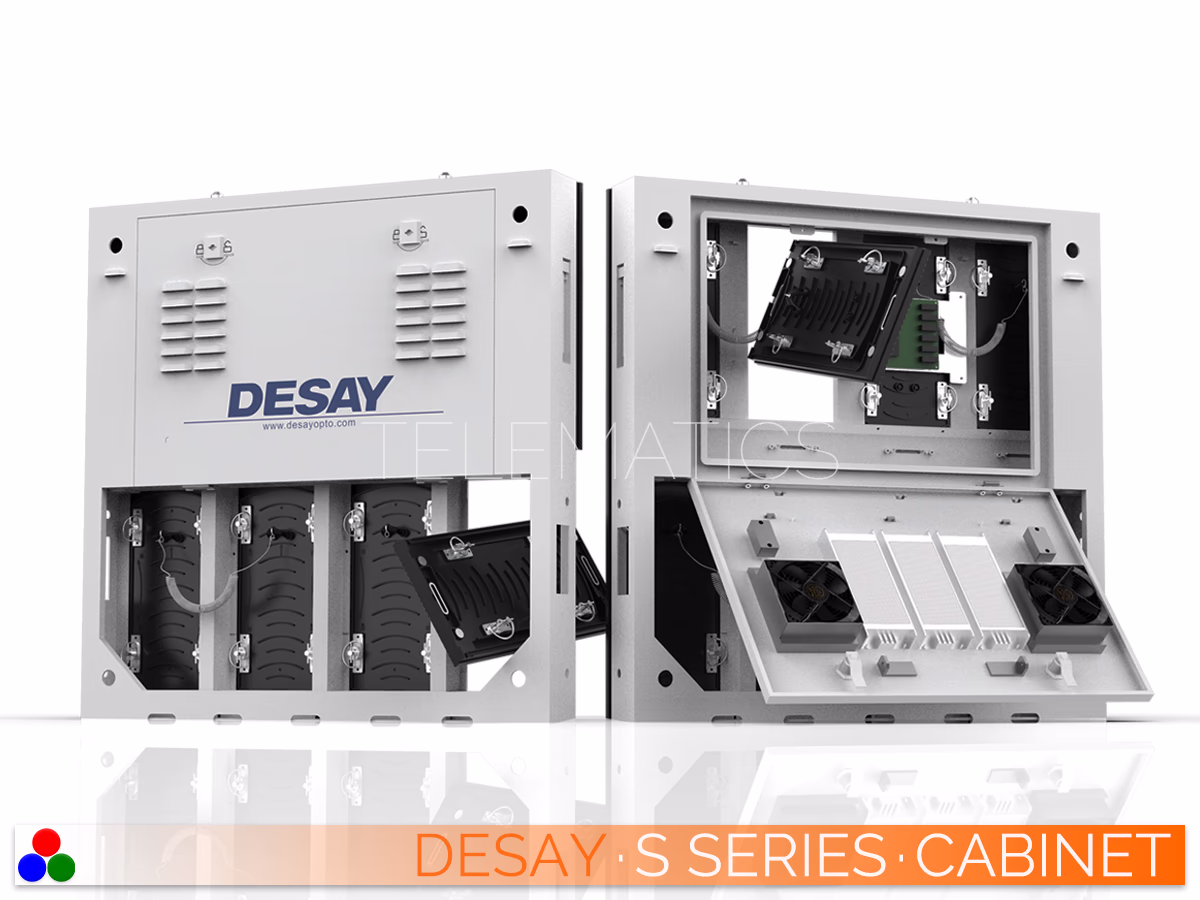

The S Series is a custom-built aluminum cabinet that weighs 36 kilograms and is configured around modules with x·y dimensions of 305 × 305 or 200 × 400 millimeters.

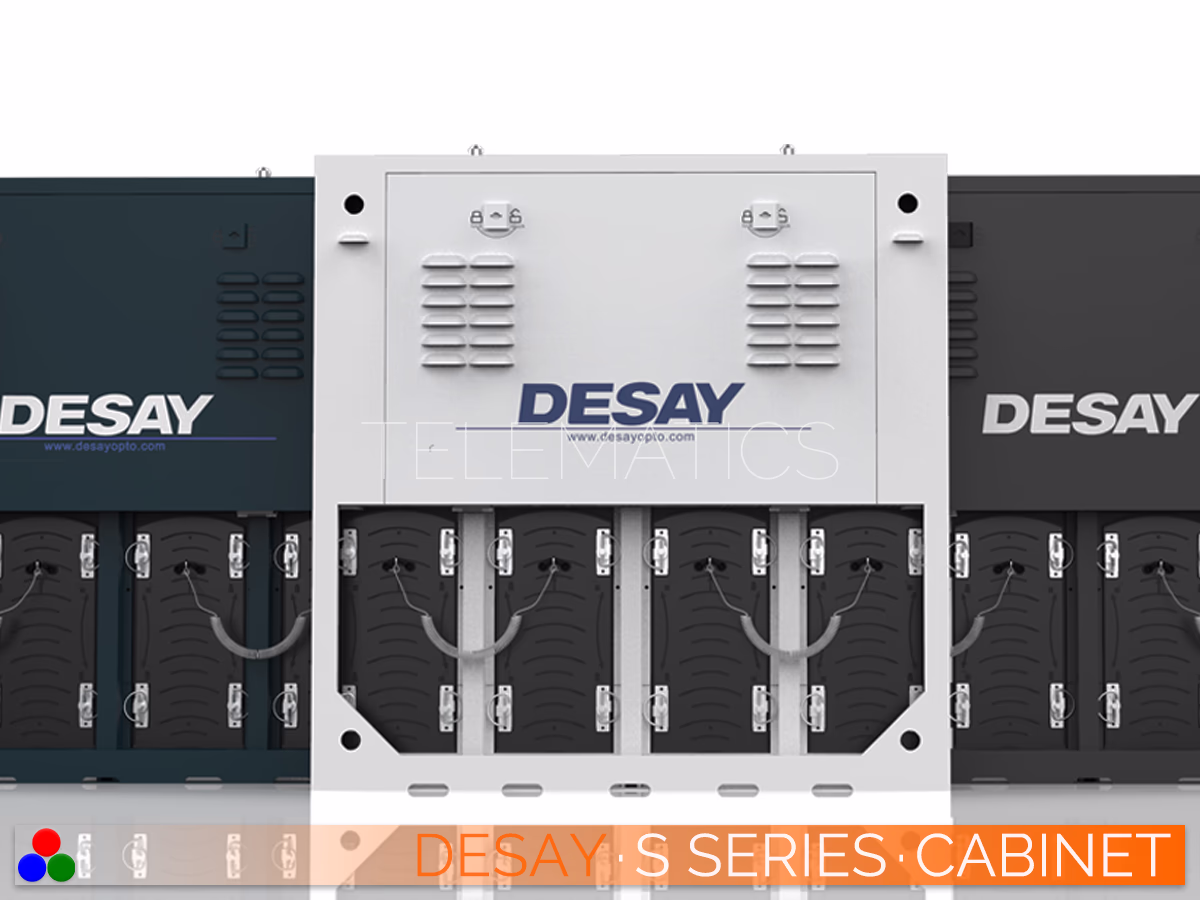

Cabinets are designed to your project specifications and can follow a precise concave or convex display surface with an option for 90° corner cabinets.
Schematics
We provide our Engineers with a detailed description of your project. They provide mechanical and electrical drawings based on your Desay Series selection and configured to best match the parameters of the installation.
Those drawings are generated in industry-standard Adobe PDF and Autodesk DWG formats to share with your team.
Lamps
S Series cabinets are outdoor-equipped with 5,500 to ≥ 9,800 candelas/m2 of fully-adjustable brightness from a selection of NationStar SMD and Xindeco and Cree DIP lamps.
Refresh rates are set at up to 3840Hz for broadcast video. 140° of indirect viewing means that everyone in your audience can see the S Series whether they are coming or going.
Options
Once you have selected a Desay Series display that provides the resolution and brightness you need for your target audience, we have a short list of options to consider.

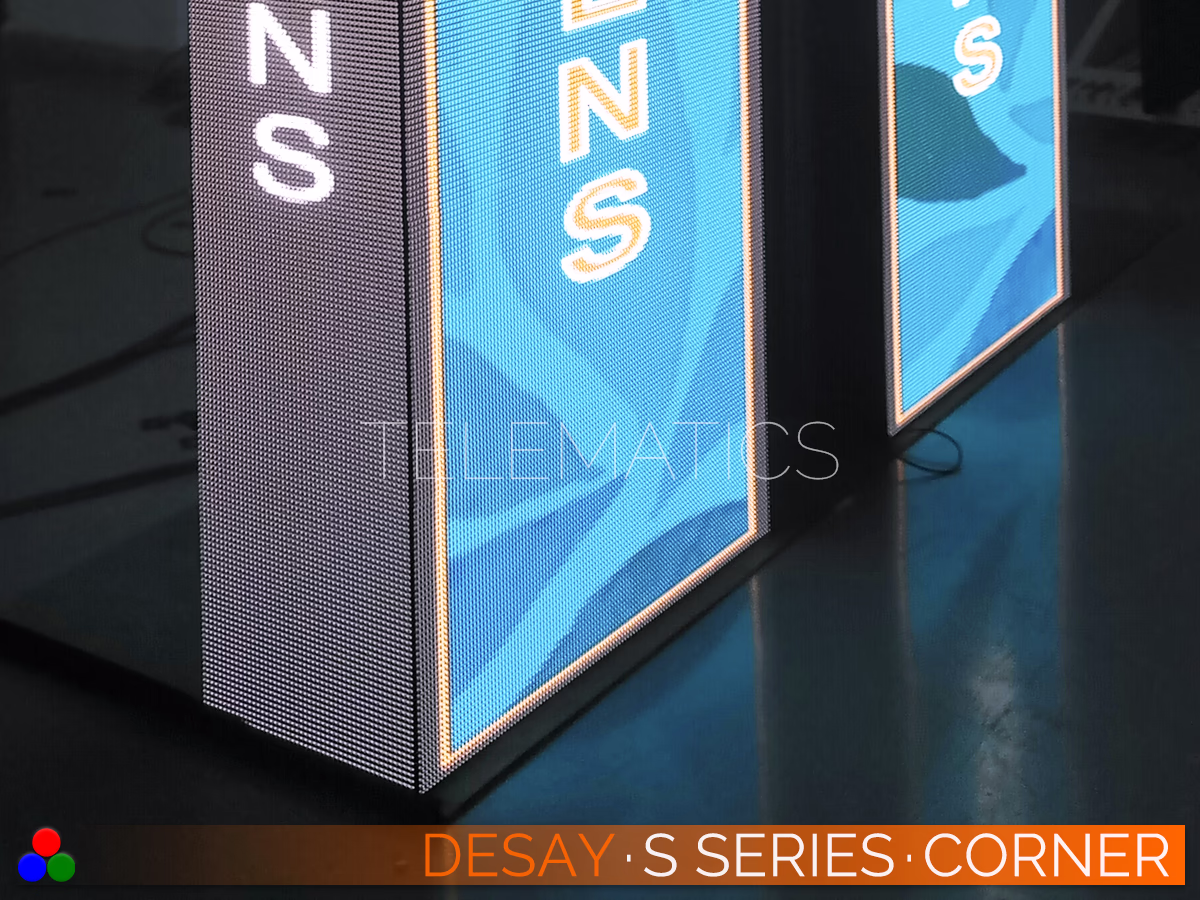

We offer custom panels with corners and contours, frames and rigging, spare components and warranty extensions. Pretty much anything you need. Just ask.
Installation

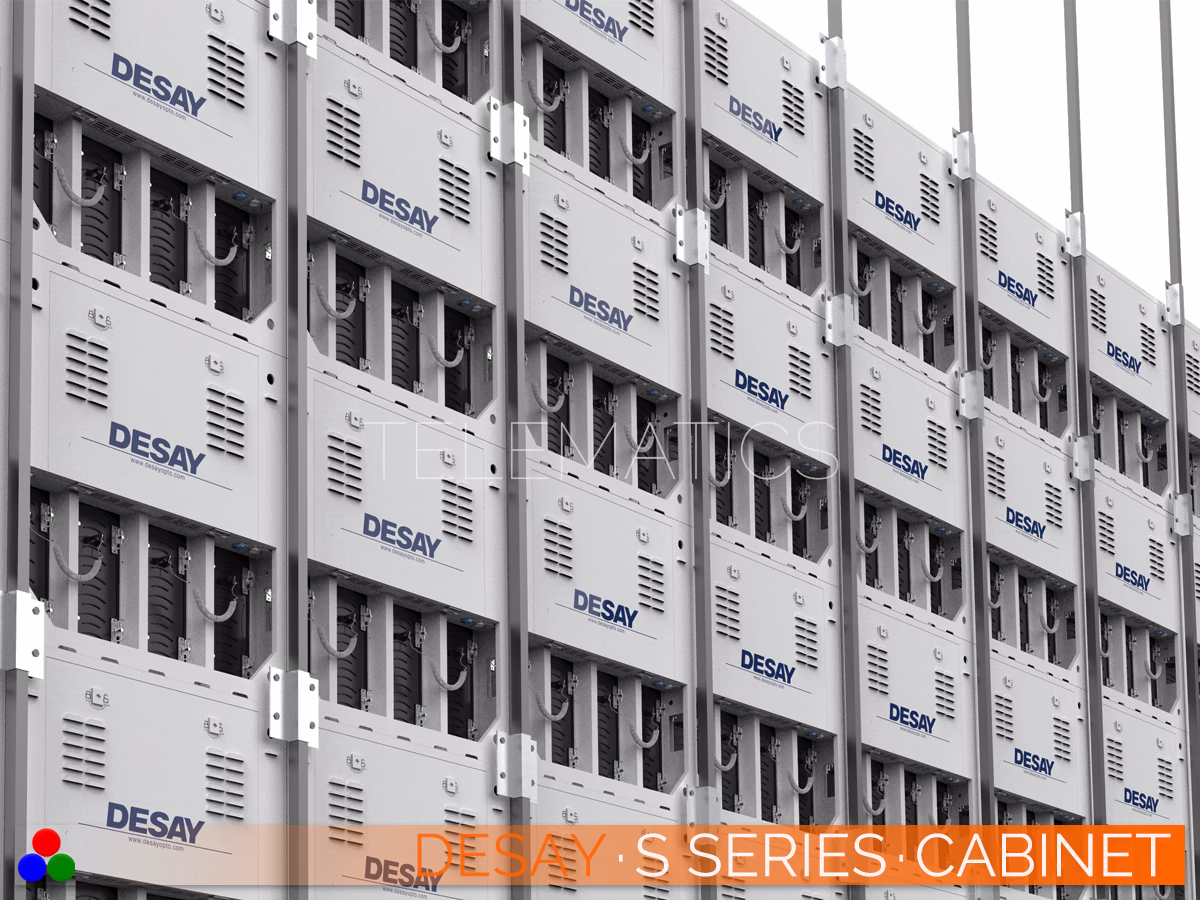

The S Series is attached across your frame using 12mm bolts. Power and data cabling is hidden away within the cabinet and out of the elements.

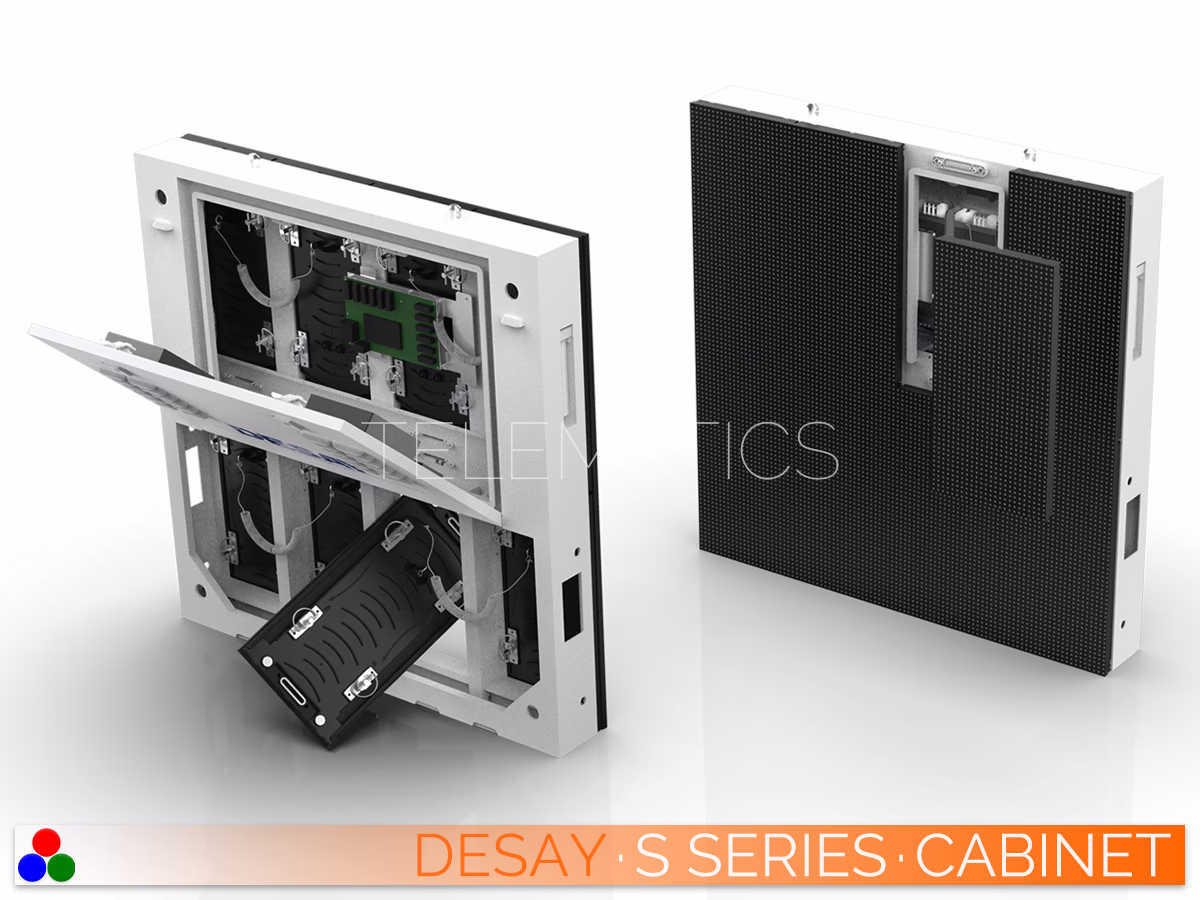

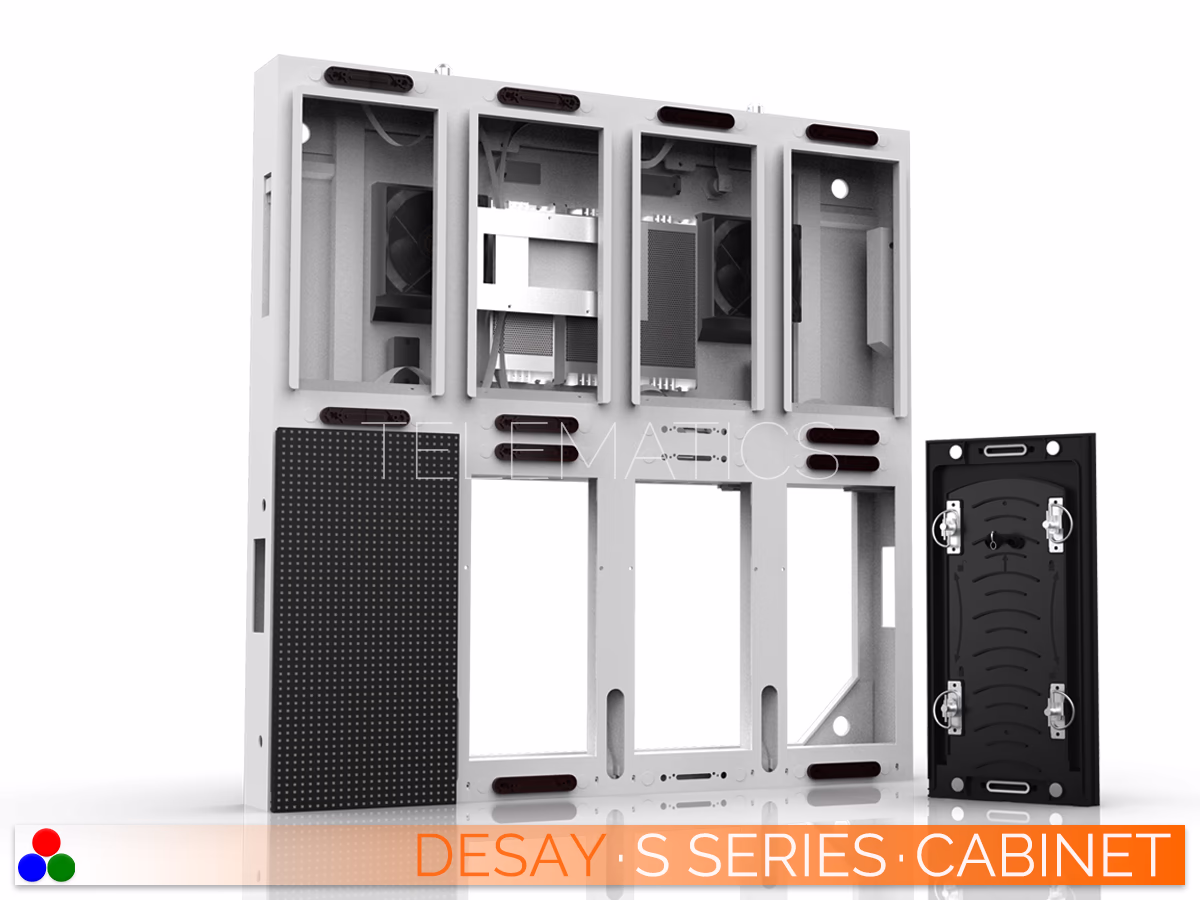

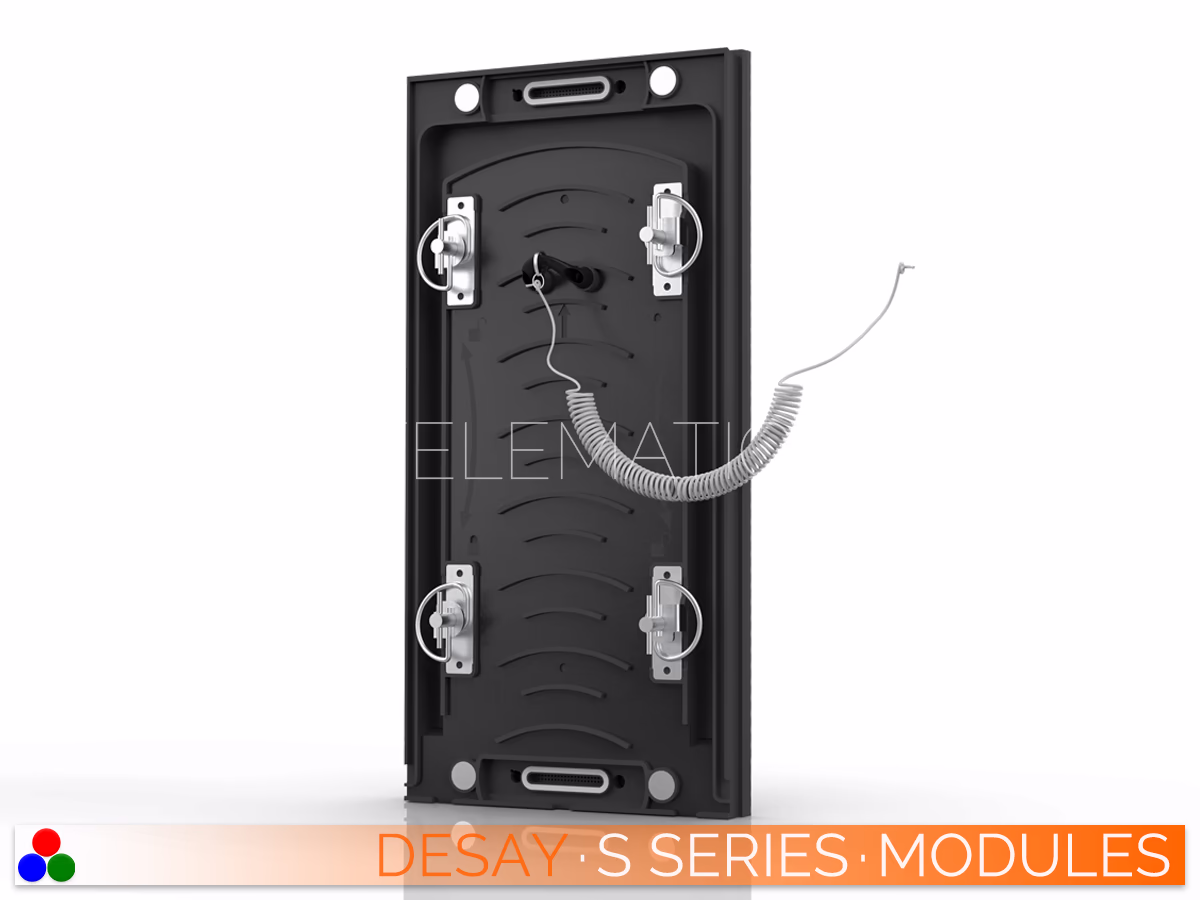

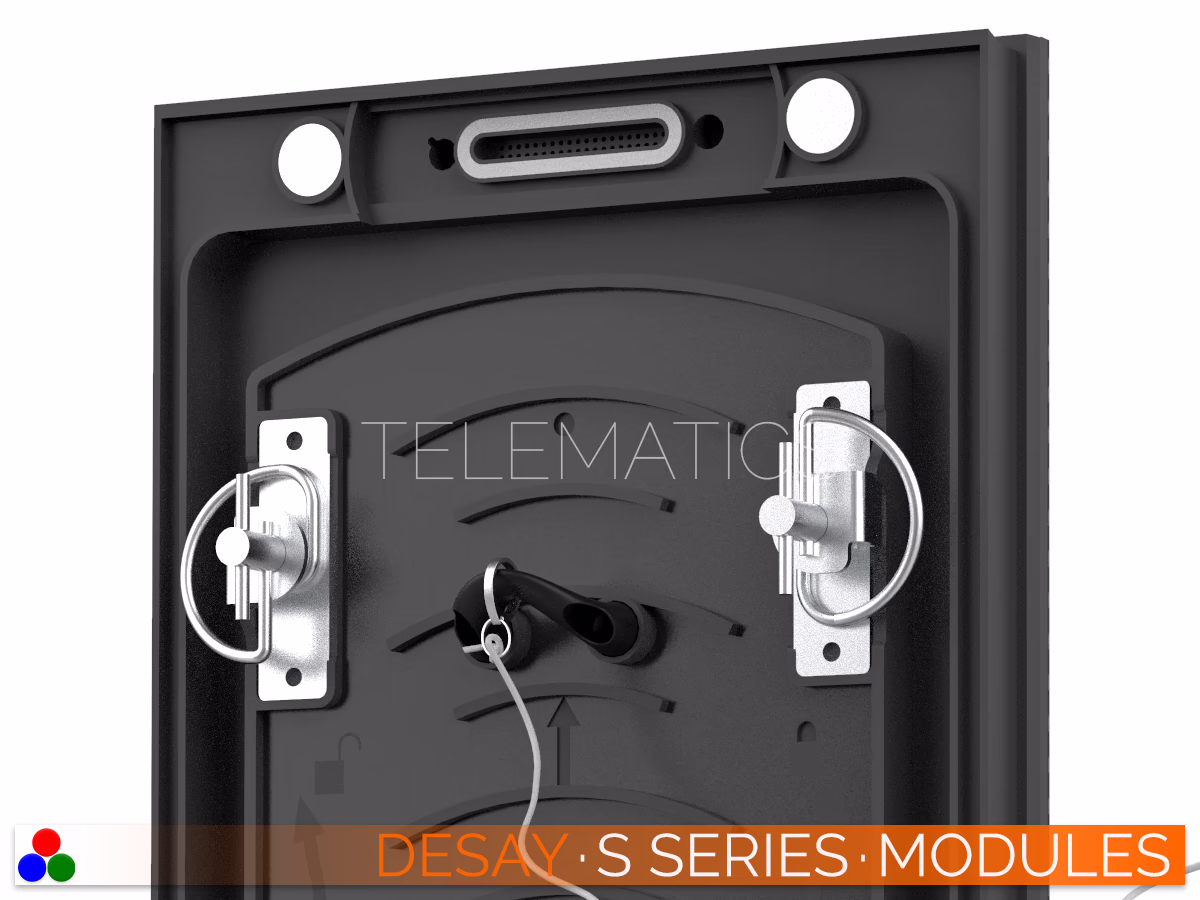

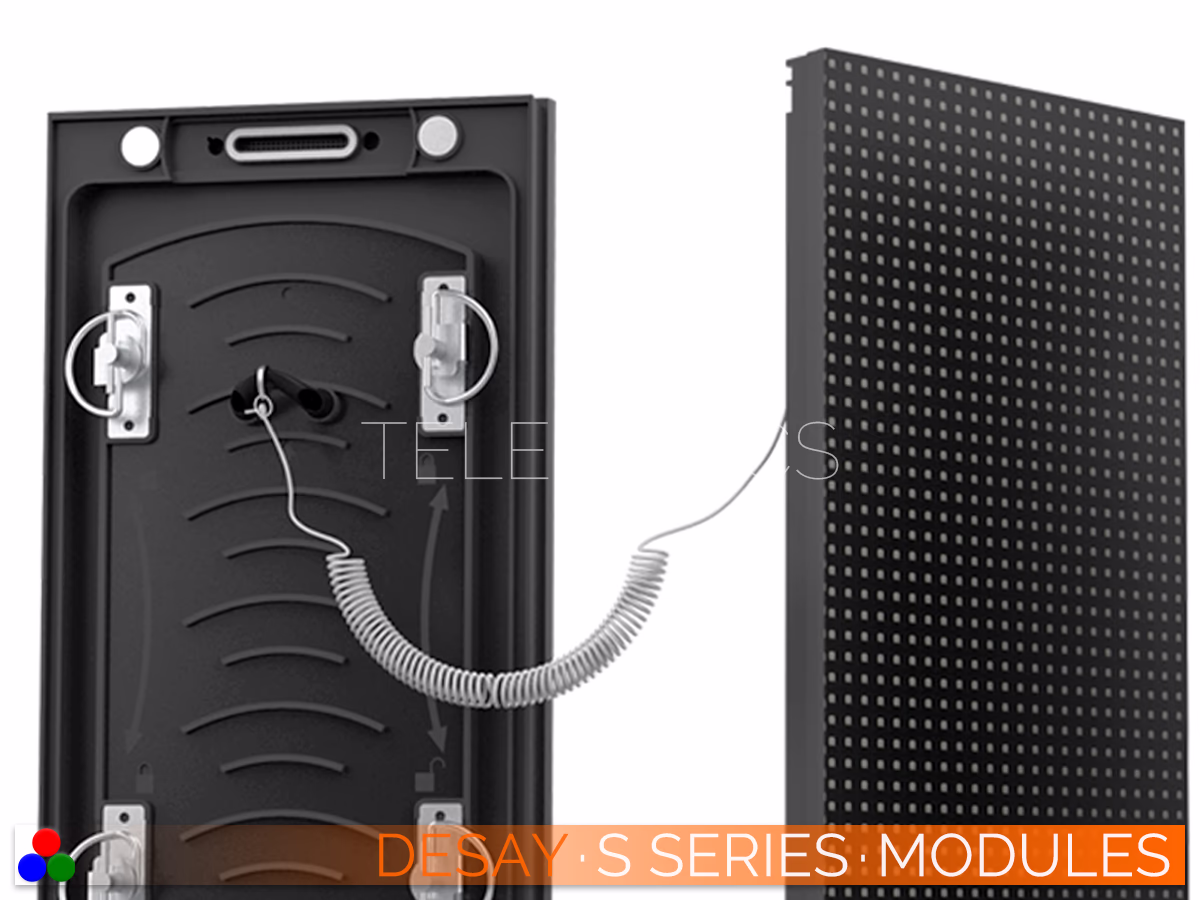

Modules are installed or removed with a clever tool and the power supply units and receiver cards are easily accessible from the front of the S Series.
Cards
The S Series relies on NovaStar's Armor and COEX receiver cards combined with Vision Management Platform software to provide Dynamic Booster, Full Grayscale Calibration and Image Booster functions to your display.
VMP supports Image Enhancement and frame-by-frame Pixel Analysis to reduce power consumption by >20%.
Quotes
We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.
At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.
Performance
Every redn × greenn × bluen lamp creates many times more color combinations than our eyes can see, along with an abundance of silky smooth shades of grey.
Display life is projected to be 100,000 hours or about 11 years of full-time use. Which means we look forward to hearing from you again sometime in 2037.
The Specifications· Modules ·· Prices ·· Extras ·· Pixels ·· Dimensions ·· Catalogs ·Desay · S Series
Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead
S Series | 4.762 | 6.250 | 6.350 | 8.333 | 9.525 | 10.000 |
|---|---|---|---|---|---|---|
Pixel Pitch · 4.762
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 4.762 is best viewed from 5 meters or more for optimal results. Calculate pixel density by dividing 4.762 into 1000 millimeters for 210 pixels per linear meter. Square this result for a product of 44,100 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 6.250
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 6.250 is best viewed from 6 meters or more for optimal results. Calculate pixel density by dividing 6.250 into 1000 millimeters for 160 pixels per linear meter. Square this result for a product of 25,600 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 6.350
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 6.350 is best viewed from 6 meters or more for optimal results. Calculate pixel density by dividing 6.350 into 1000 millimeters for 157 pixels per linear meter. Square this result for a product of 24,800 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 8.333
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 8.333 is best viewed from 8 meters or more for optimal results. Calculate pixel density by dividing 8.333 into 1000 millimeters for 120 pixels per linear meter. Square this result for a product of 14.400 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 9.525
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 9.525 is best viewed from 9 meters or more for optimal results. Calculate pixel density by dividing 9.525 into 1000 millimeters for 105 pixels per linear meter. Square this result for a product of 11,025 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 10.000
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 10.000 is best viewed from 10 meters or more for optimal results. Calculate pixel density by dividing 10.000 into 1000 millimeters for 100 pixels per linear meter. Square this result for a product of 10.000 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. |
Cabinets · m² | ||||||
|---|---|---|---|---|---|---|
1921 · white smd
cu · ≥ 5500 cd/m²
| ||||||
1921 · white smd
au · ≥ 6000 cd/m²
| ||||||
1921 · white smd
au · ≥ 7000 cd/m²
| ||||||
2727 · white smd
cu · ≥ 6000 cd/m²
| ||||||
2727 · white smd
au · ≥ 6000 cd/m²
| ||||||
2727 · white smd
cu · ≥8500 cd/m²
|
10.886 | 15.240 | 20.000 | ||||
|---|---|---|---|---|---|---|
Pixel Pitch · 10.886
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 10.886 is best viewed from 11 meters or more for optimal results. Calculate pixel density by dividing 10.886 into 1000 millimeters for 92 pixels per linear meter. Square this result for a product of 8,438 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 15.240
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 15.240 is best viewed from 15 meters or more for optimal results. Calculate pixel density by dividing 15.240 into 1000 millimeters for 66 pixels per linear meter. Square this result for a product of 4,306 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 20.000
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 20.000 is best viewed from 20 meters or more for optimal results. Calculate pixel density by dividing 20.000 into 1000 millimeters for 50 pixels per linear meter. Square this result for a product of 2,500 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. |
rgb · white dip
au · ≥ 6500 cd/m²
| ||||||
rgb · white dip
au · ≥ 8500 cd/m²
| ||||||
rgb · white dip
au · ≥ 6500 cd/m²
|
Cards · Controllers | ||||||
|---|---|---|---|---|---|---|
card · novastar armor · a5s-plus
1-4 per cabinet
| ✓ | ✓ | ✓ | ✓ | ✓ | |
card · novastar armor · a8s-n
1-4 per cabinet
| ✓ | ✓ | ✓ | ✓ | ✓ | |
controller · novastar · tb50
1,300,000 pixels
| ✓ | ✓ | ✓ | ✓ | ✓ | |
controller · novastar · vx400 pro
2,600,000 pixels
| ✓ | ✓ | ✓ | ✓ | ✓ | |
controller · novastar · ku20
3,900,000 pixels
| ✓ | ✓ | ✓ | ✓ | ✓ | |
controller · novastar · mx30
6,500,000 pixels
| ✓ | ✓ | ✓ | ✓ | ✓ |
Extras · Options | ||||||
|---|---|---|---|---|---|---|
cabinet · cnc · contour
custom · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |

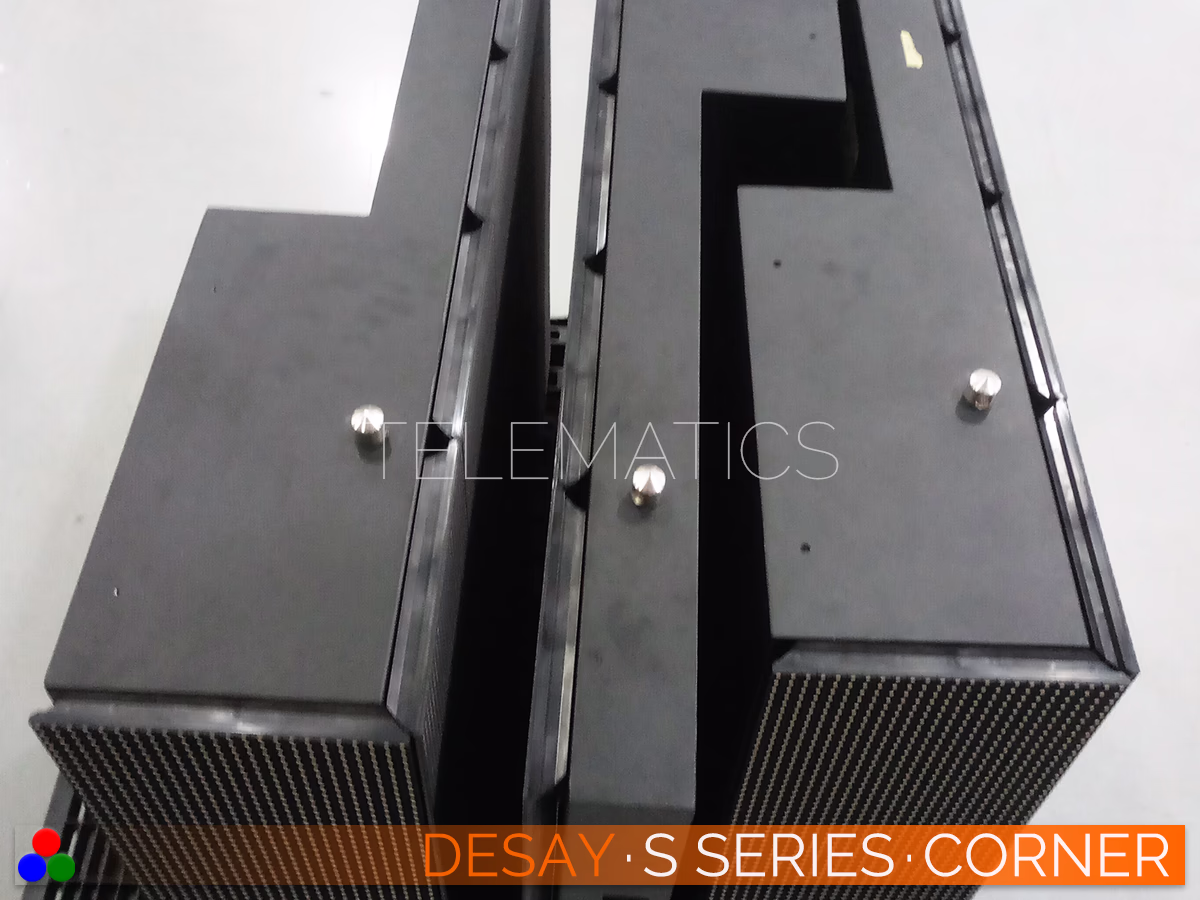

cabinet · 90° corner
custom · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cabinet · custom × 400 × 200 × 122
standard · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cabinet · custom × 305 × 305 × 133
standard · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cabinet · custom × 12'' × 12'' × 5''
standard · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |
rigging · service tool
vacuum · display
| ✓ | ✓ | ✓ | ✓ | ✓ | |
rigging · french cleat
18mm · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | |
rigging · aluminum extrusion
40mm · m²
| ✓ | ✓ | ✓ | ✓ | ✓ |
The Configurator· Our Pixels ·· Our Widths ·· Our Heights ·· Our Sizes ·· Our Powers ·· Our Options ·· Our Warranties ·· Our Freight ·· Our Prices ·· Our Quotes ·Desay · S Series
Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson
Software | ||||||
|---|---|---|---|---|---|---|
software · vmp
configure · customize · manage
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · novalct
configure · map · calibrate
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · viplex
content · create · schedule
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · v-can
switch · layer · preset
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cloud · vnnox media
publish · schedule
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cloud · vnnox care
manage · monitor
| ✓ | ✓ | ✓ | ✓ | ✓ |
Documents | ||||||
|---|---|---|---|---|---|---|
pdf · specifications
hardware · power · dimensions
| ✓ | ✓ | ✓ | ✓ | ✓ | |
pdf · manual
install · operate · troubleshoot
| ✓ | ✓ | ✓ | ✓ | ✓ | |
files · factory warranty
standard · extended
| ✓ | ✓ | ✓ | ✓ | ✓ | |
files · fine print
legal · certifications
| ✓ | ✓ | ✓ | ✓ | ✓ |
The Sales Pitch· About Us ·· About The S ·· About Desay ·Desay · S Series
Dreaming, after all, is a form of planning. ~ Gloria Steinem
About Telematics Canada
Telematics Canada is a federally incorporated company based in Vancouver since 2000.
Our global partners manufacture premium direct-view LED displays for almost every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.
Our high-volume relationships with manufacturers and low corporate profile allow us to provide aggressive pricing and personalized service to a worldwide network of principals and project managers in the audio-visual and digital signage industries.
For more than 25 years, we have developed business relationships with thousands of people from every corner of the world.
Many are AV professionals and consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are architects and designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. Some are businesses that select and install their own systems with the assistance of local tradespeople and engineers.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective, and reliable.
And we always keep their secrets to ourselves.
About Desay
Desay Opto: A Global Leader in Optoelectronics
Desay Opto, a public corporation (002920) with a nine billion dollar market valuation, has quietly emerged as an industry leader in the optoelectronics sector. Ranked #1 in Asia and #3 worldwide for the past decade, Desay's Optoelectronic division has achieved remarkable success, with annual sales measured in tens of thousands of panels and cabinets.
Extensive Manufacturing Capabilities
Desay boasts three industrial zones with a total area exceeding one and a half million square meters. The company's headquarters, factory, and offices are located in Huizhou, with additional offices in Shenzhen. This extensive manufacturing footprint enables Desay to develop and produce some of the highest-quality LED displays in the world, earning the company a well-deserved reputation for excellence.
Cutting-Edge Technology
Desay's success is driven by its leading technology in Optoelectronic Control and Non-linear Alignment Techniques. By combining these technologies with rapid image compensation and point-to-point image data processing technology, Desay balances the light intensity of the frame, creating vivid pictures and distinct gradations. This results in an immersive experience for viewers, both indoors and outdoors.
Moreover, Desay has developed and patented the most advanced pixel enhancement technique in the industry. This system can improve the resolution of a full Desay display by a factor of four without degrading the contrast, further enhancing the visual experience.
Uncompromising Quality
Desay understands that cutting corners on build quality can have long-term consequences. While some manufacturers may opt for low-grade two-layer PCBs with tin plating and flammable materials to reduce costs, Desay chooses four- to six-layer boards with gold plating and fire retardants. This commitment to quality ensures that Desay's displays are not only superior but also safer, longer-lasting, and require less service, ultimately providing greater value to customers.
As Sir Henry Royce famously said, "The quality will remain long after the price is forgotten." Desay's advanced engineering and precise manufacturing processes result in outstanding products that embody this philosophy, solidifying the company's position as a global leader in optoelectronics.
Desay S Series
Outdoor Display Technology
The Desay S Series provides outdoor digital signage with pixel-to-pixel spacing ranging from 15.240 to 4.762 millimeters. This architecture integrates up to 44,100 SMD lamps per square meter, maintaining visual clarity at close viewing distances in outdoor environments.
Optimized Brightness and Viewing Angles
Engineered for sustained outdoor deployment, the S Series delivers an adjustable brightness range of 5,500 to 9,800 candelas/m². Utilizing premium NationStar SMD, Xindeco, and Cree RGB lamps, the system ensures consistent content legibility with a 140° viewing angle and refresh rates up to 5500 Hz for camera-ready video.
System Architecture and Content Management
Powered by NovaStar Armor receiver technology integrated with ViPlex Express software and Taurus media players, the system facilitates structured content creation, scheduling, and playback. VNNOX cloud publishing and CARE display monitoring services provide remote control and real-time operational oversight.
Modular Architecture and Cabinet Integration
The S Series utilizes a modular architecture featuring custom-built aluminum cabinets weighing 36 kilograms. These cabinets are configured using 305 × 305 millimeter or 200 × 400 millimeter LED modules, allowing for integration into exact concave or convex display surfaces and continuous 90° corner configurations.
Customization and Technical Support
Desay provides extensive customization options, including bespoke panel geometries, specialized structural framing, and custom rigging hardware. Our engineering team delivers precise quote turnarounds and detailed schematics in standard industry formats to ensure structural integration with existing infrastructure.
Installation Flexibility and Lifespan
The S Series utilizes a secure 12mm bolt mounting system. Power and data cabling are routed internally to eliminate environmental exposure. The architecture permits front-service module extraction via a specialized tool, granting direct access to internal power supply units and receiver cards. Engineered for endurance, the system maintains high operational uptime over a projected ten-year life cycle.
