Desay QF Series LED Cabinets · 2.604 to 3.906mm ·
USD /m² ⁞ The 2026 QF Series is a unique indoor or outdoor LED display that combines independent modules with custom cabinet configurations, ideal for bespoke projects with precise concave or convex surfaces. The lightweight Desay QF Series LED modules attach magnetically to cabinets or steel surfaces for seamless installation to deliver high-brightness outdoor displays.
Quite Fantastic. Priced To Fit ·
Pixels
Pixel-to-pixel spacing ranges from 3.906 to a very compact 2.604 millimeters to create high-resolution displays that align up to 147,456 SMD lamps into a single square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the QF Series will look great from less than 3 steps away.
Dimensions

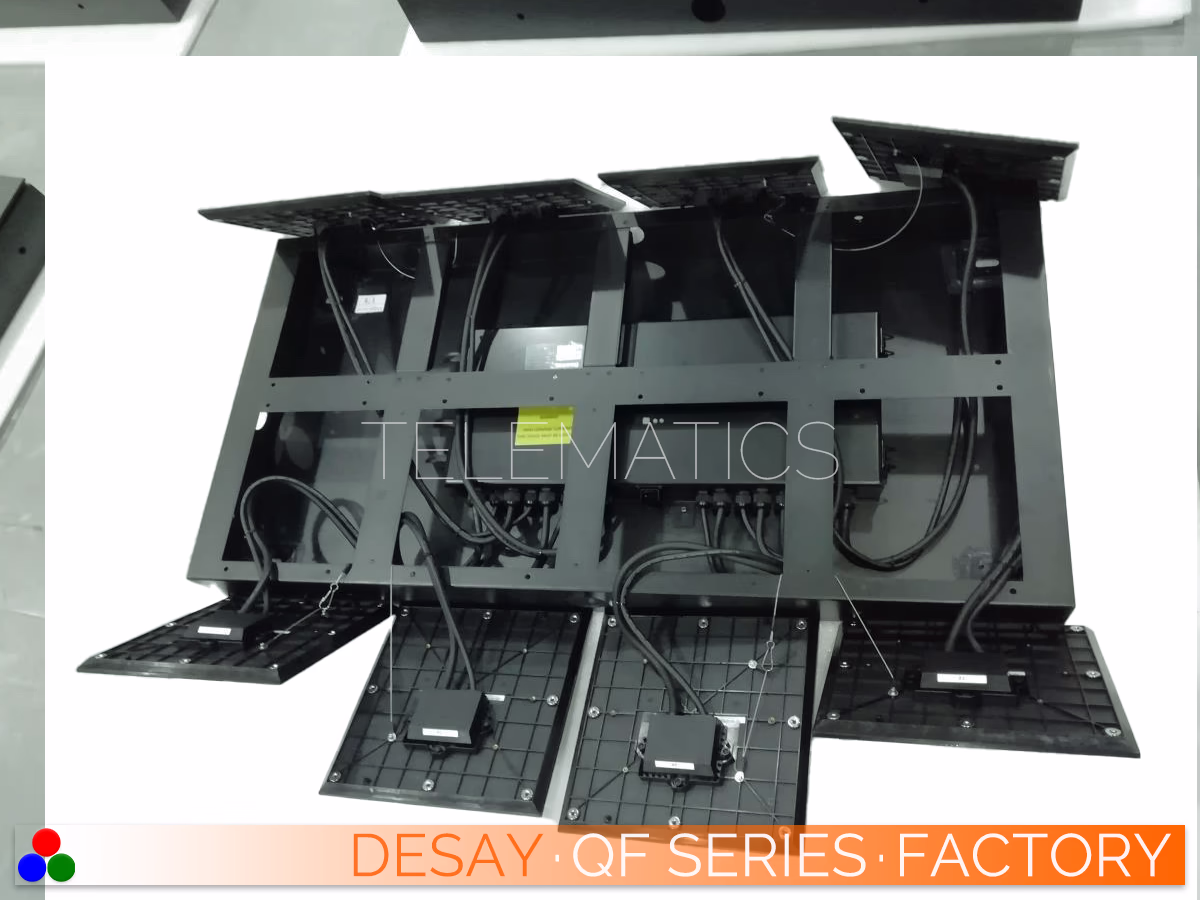

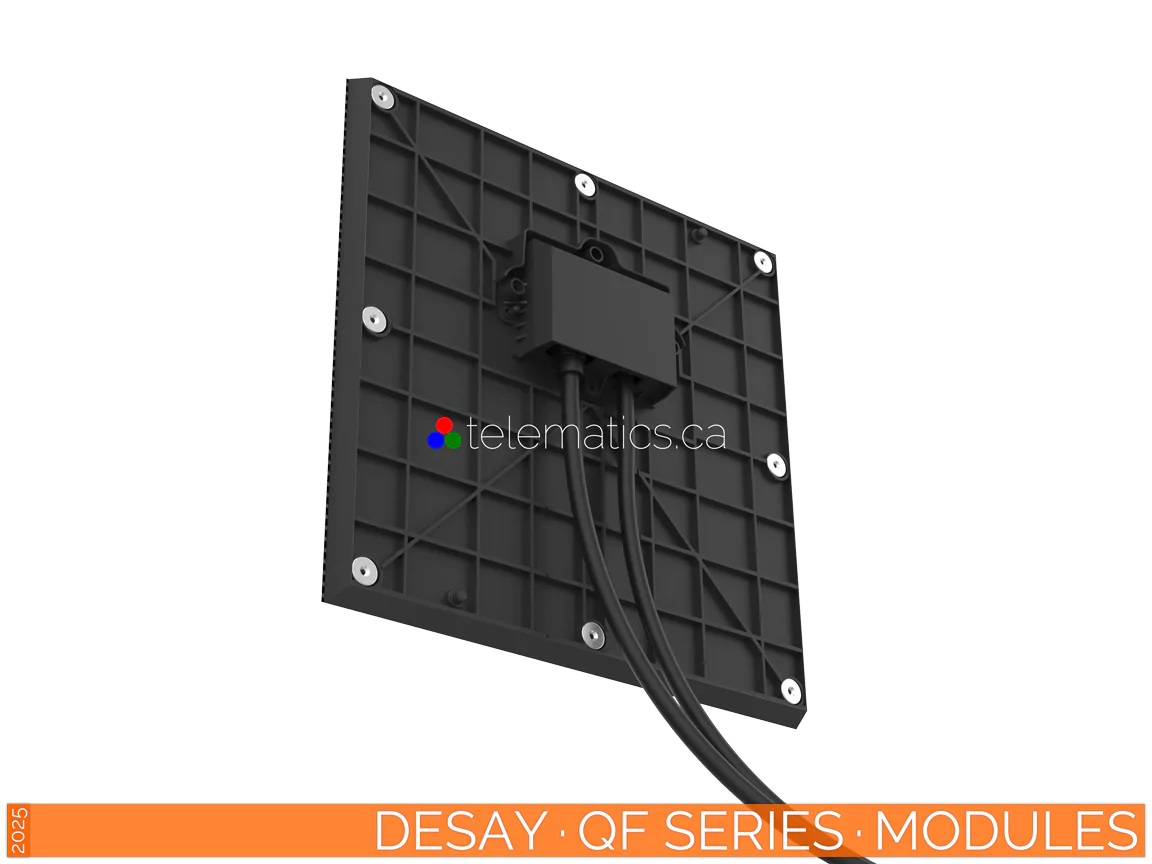

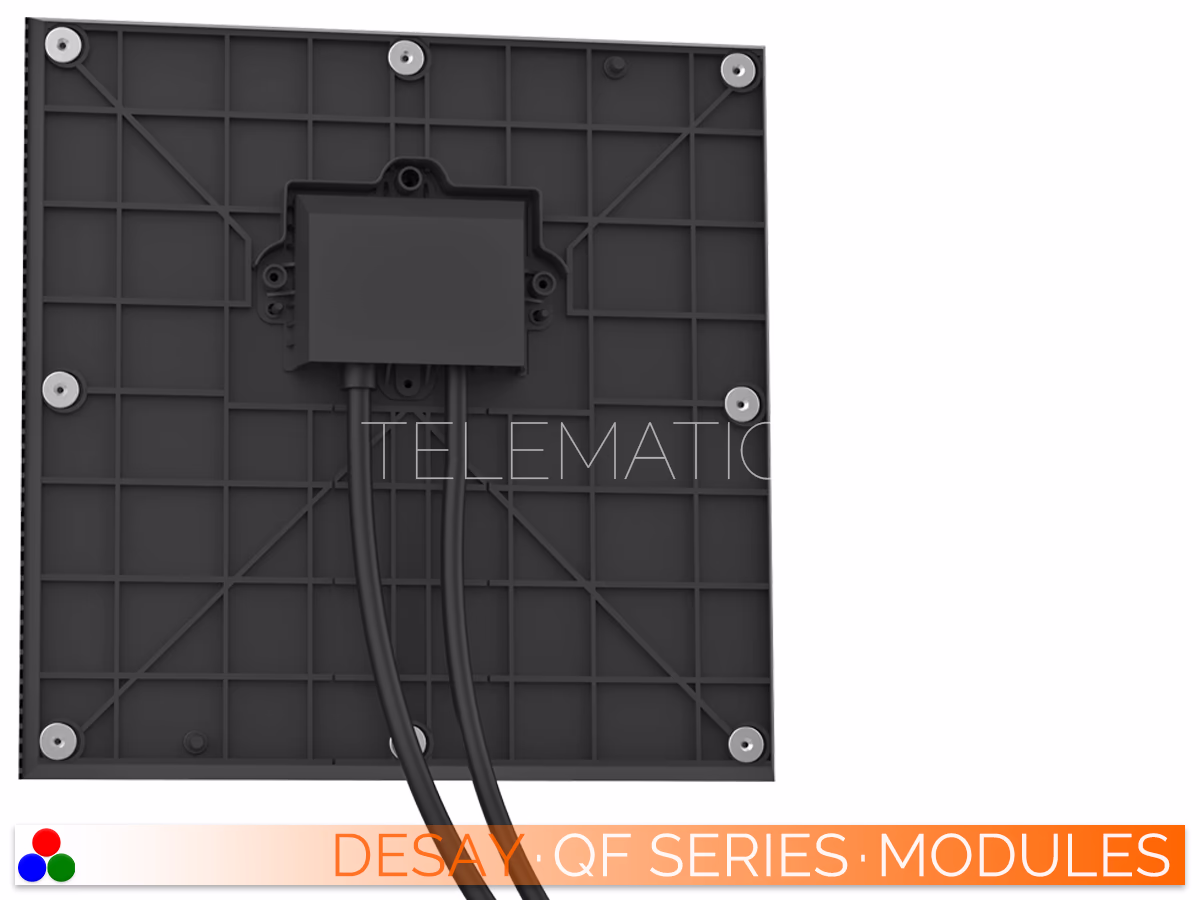

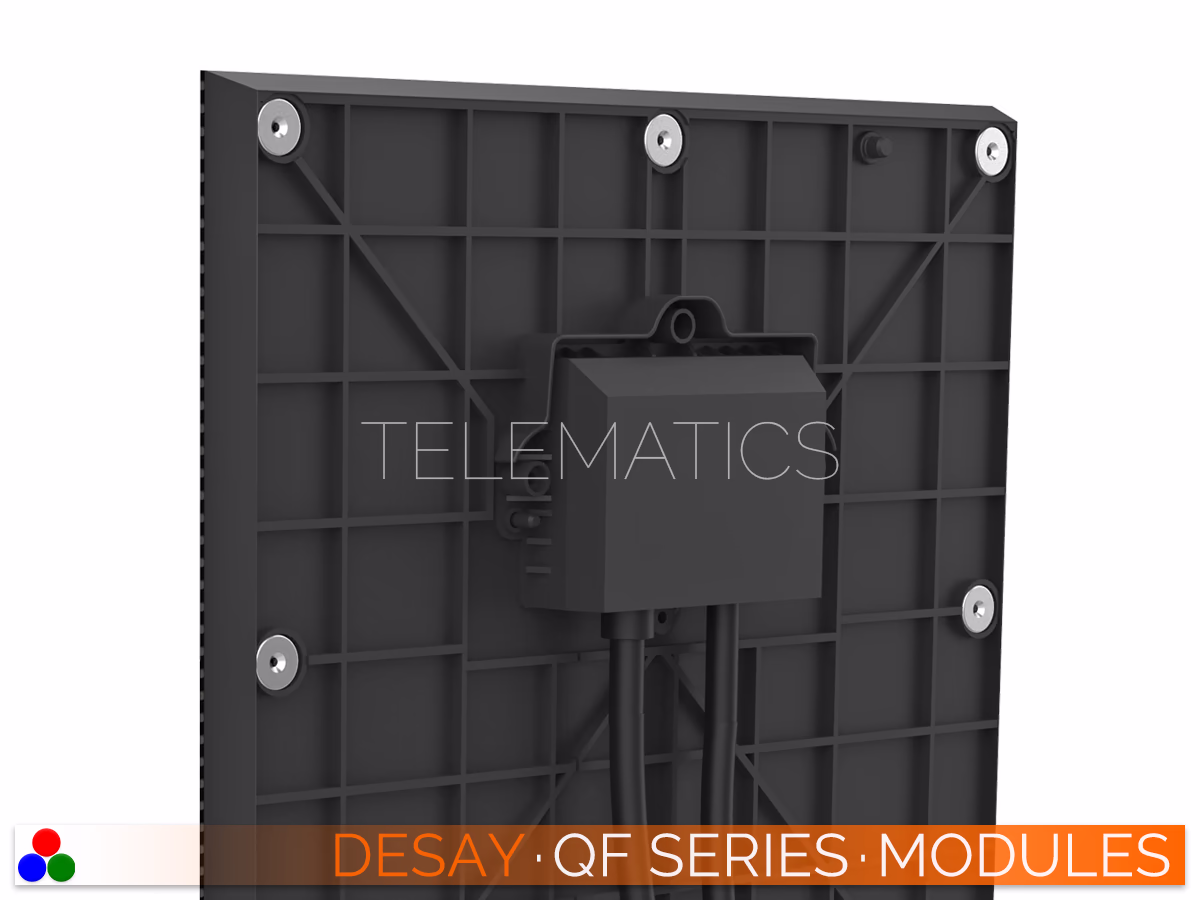

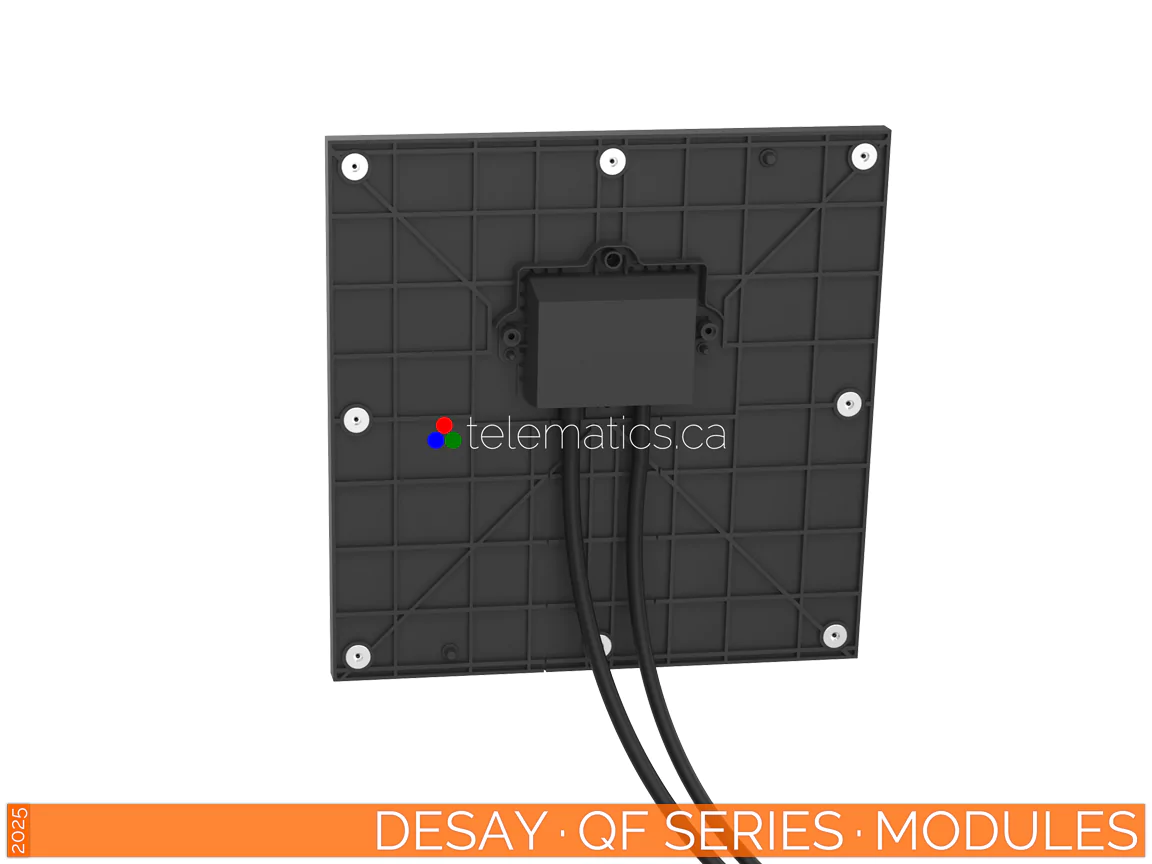

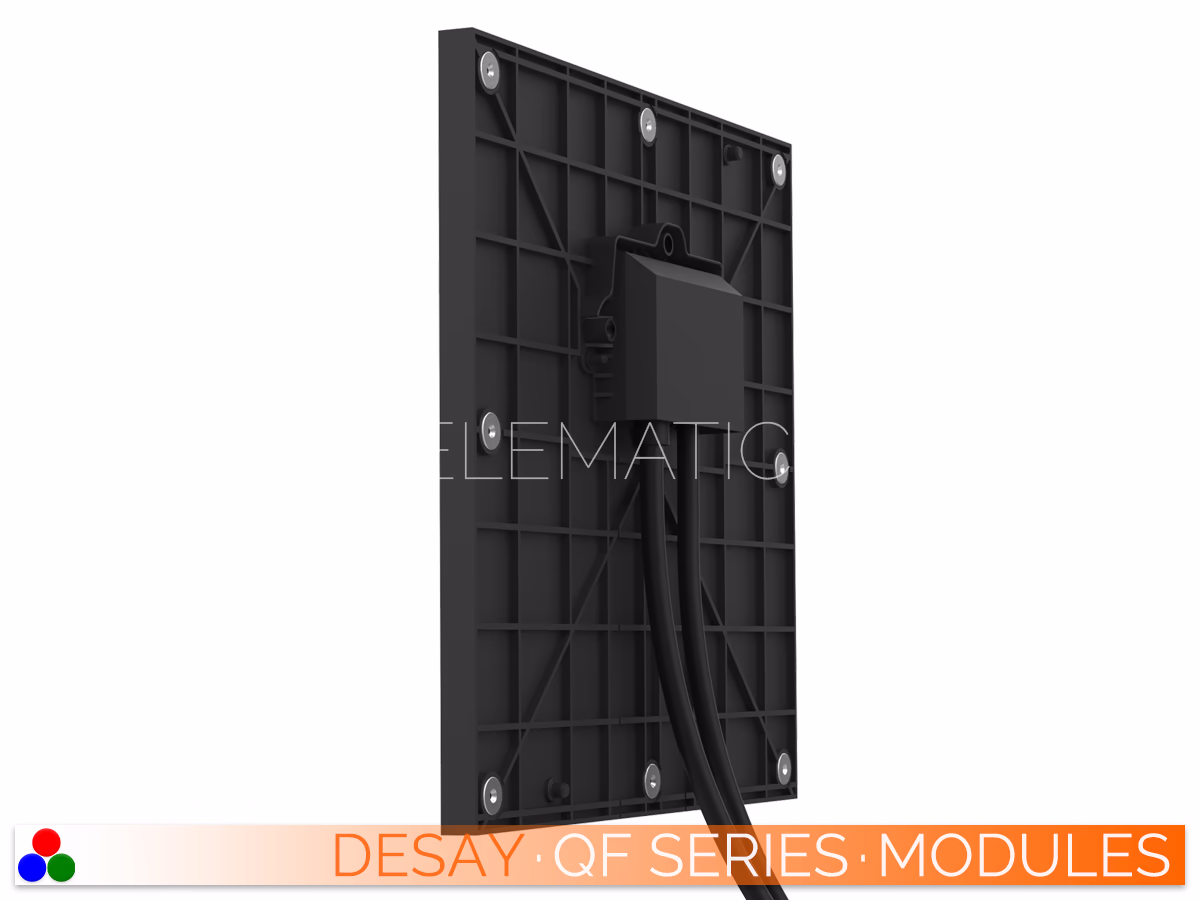

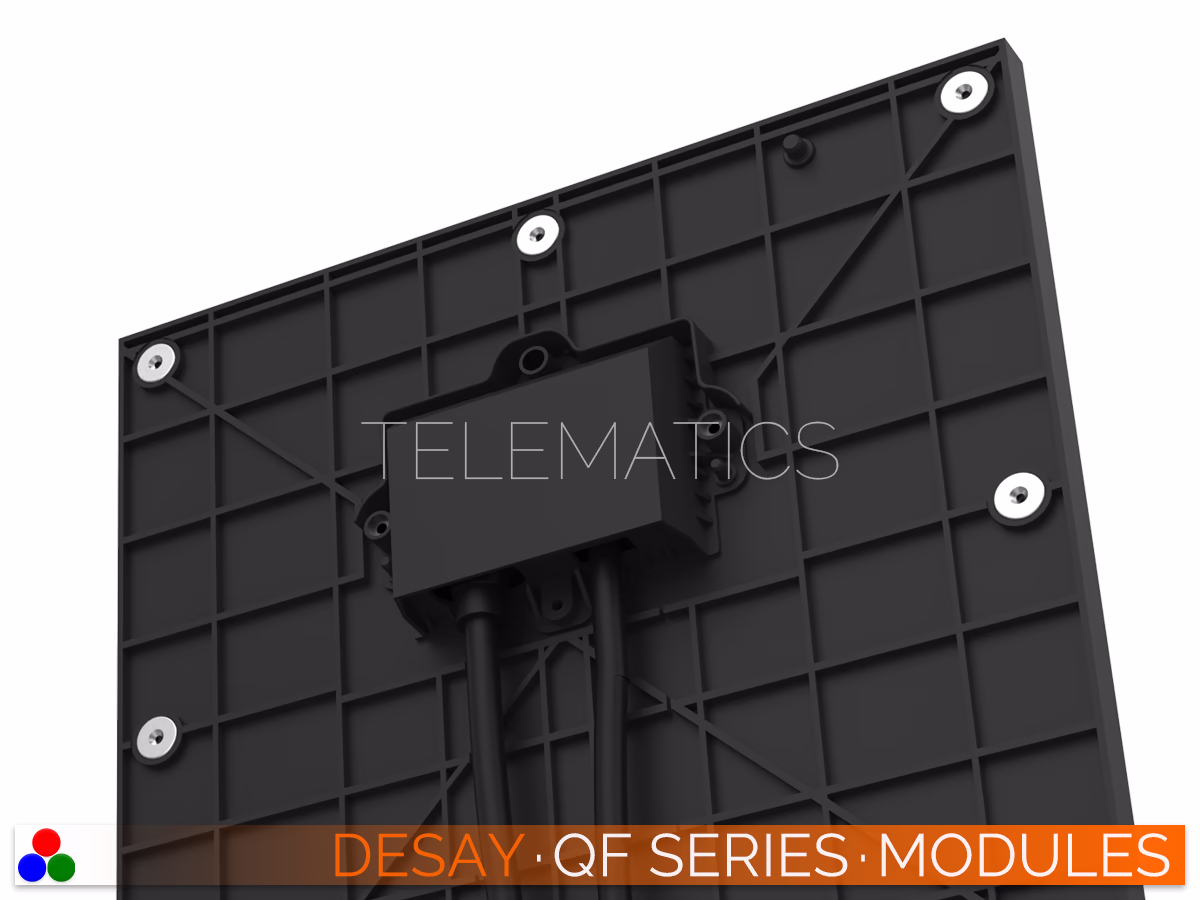

The QF Series is a unique solution for creative displays. Each module weighs less than 1 kilogram with x·y·z dimensions of 250 × 250 × 62 millimeters and connected to a power box.

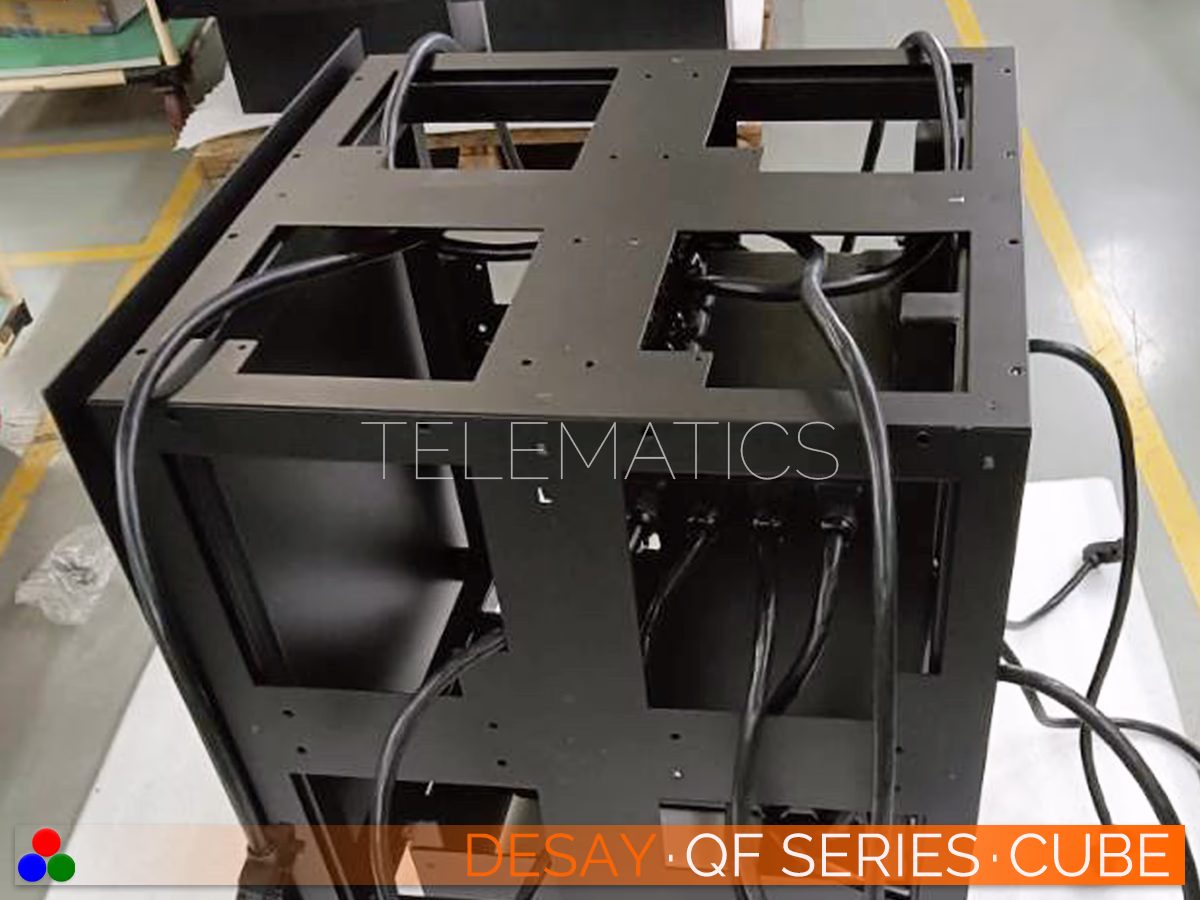

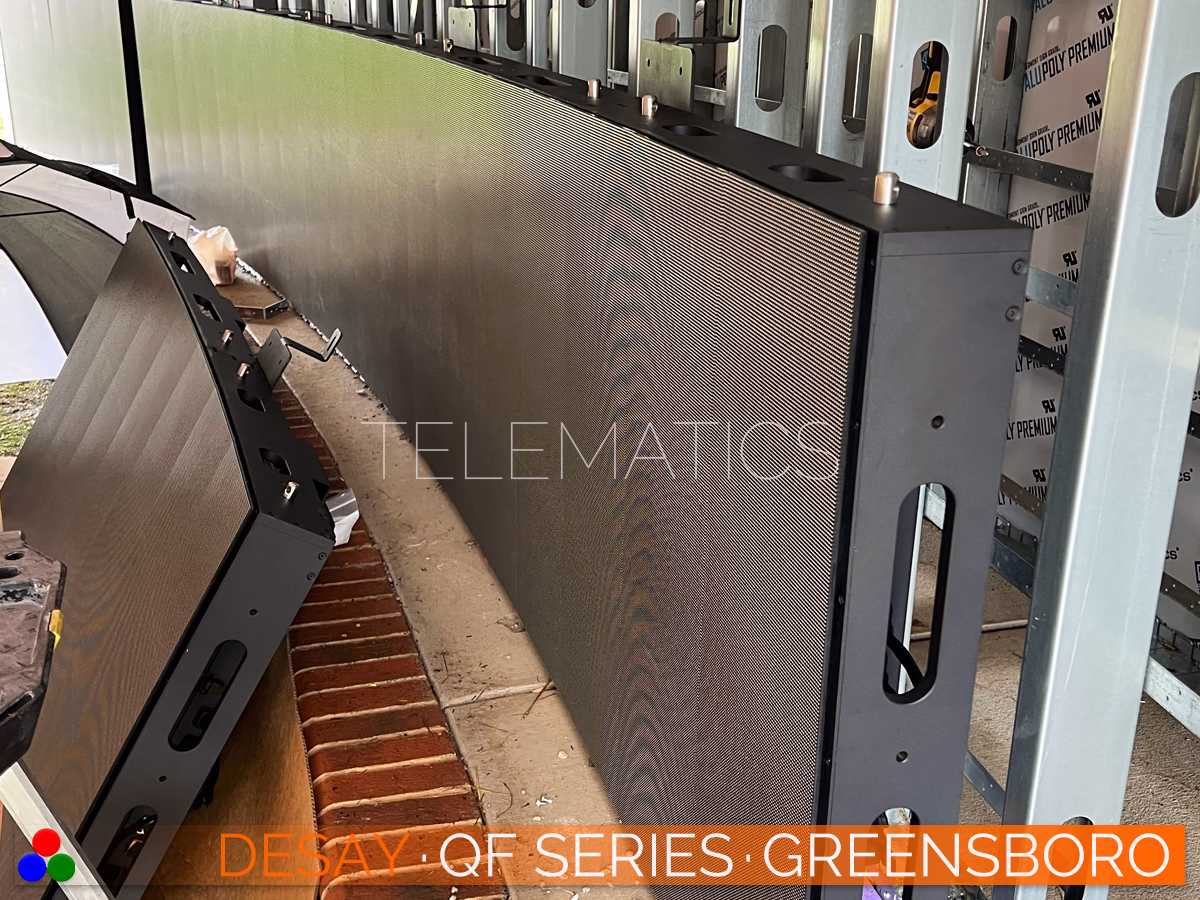

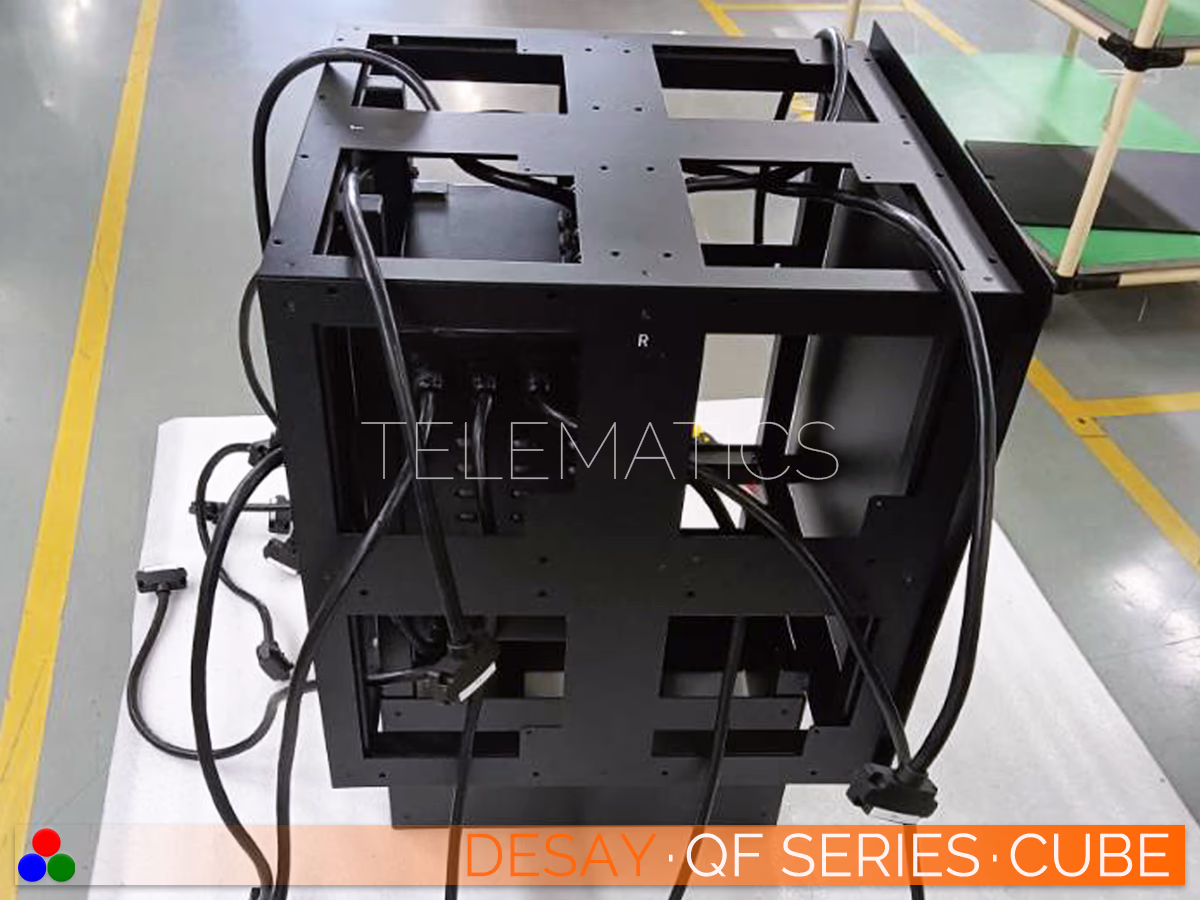

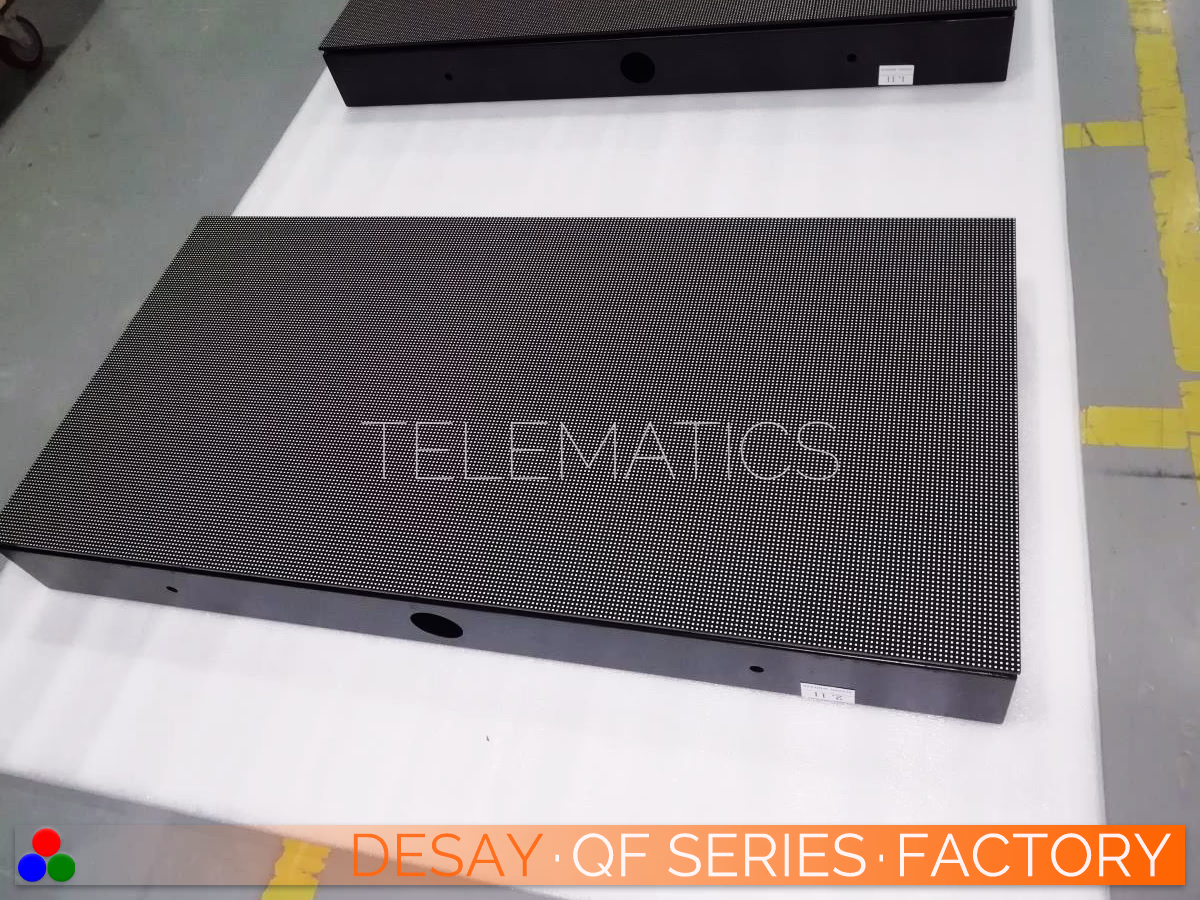

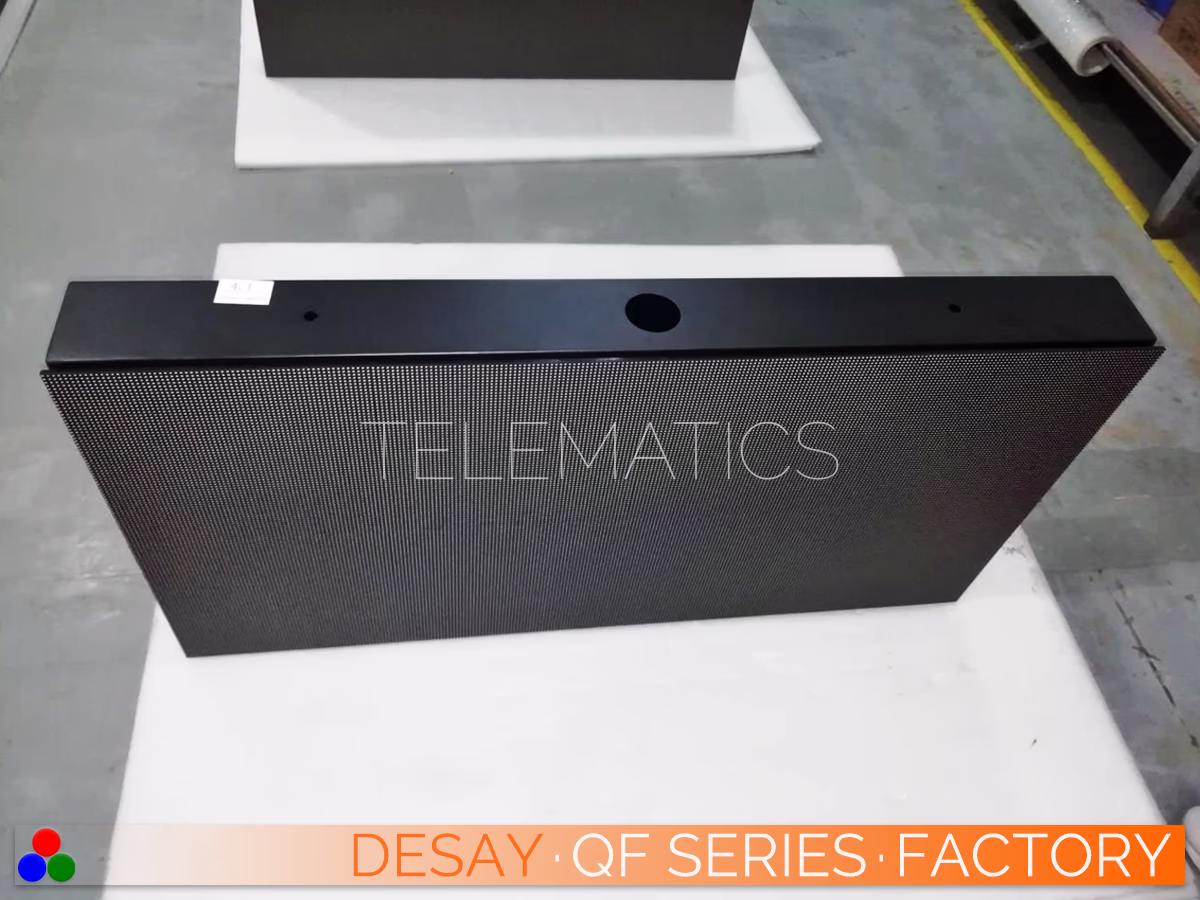

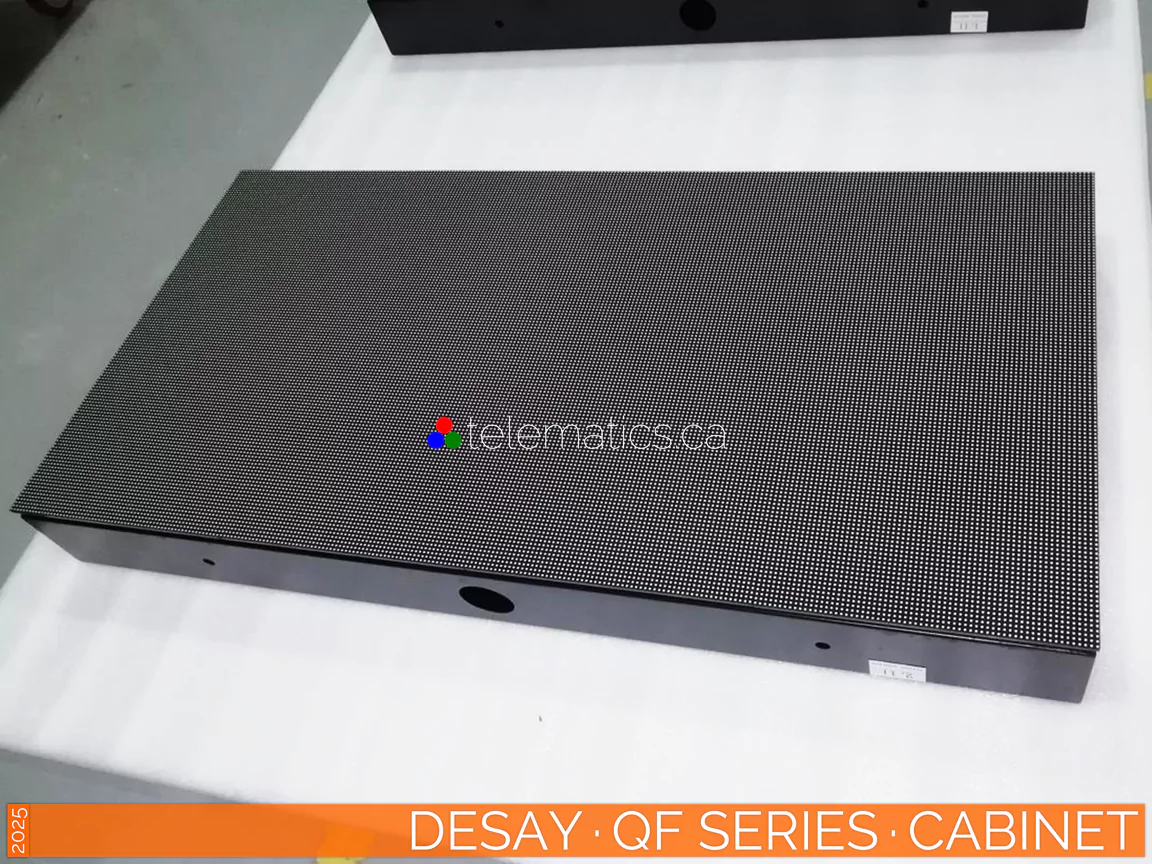

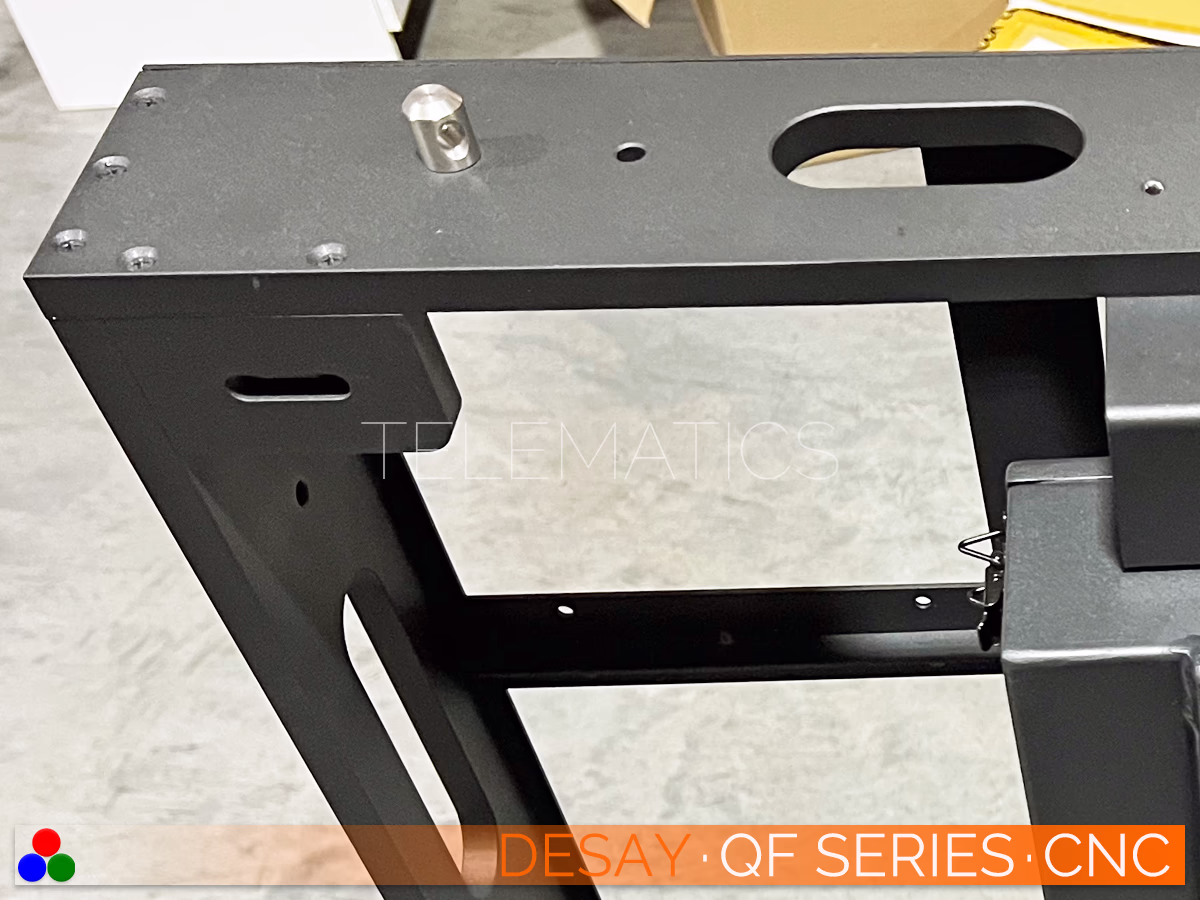

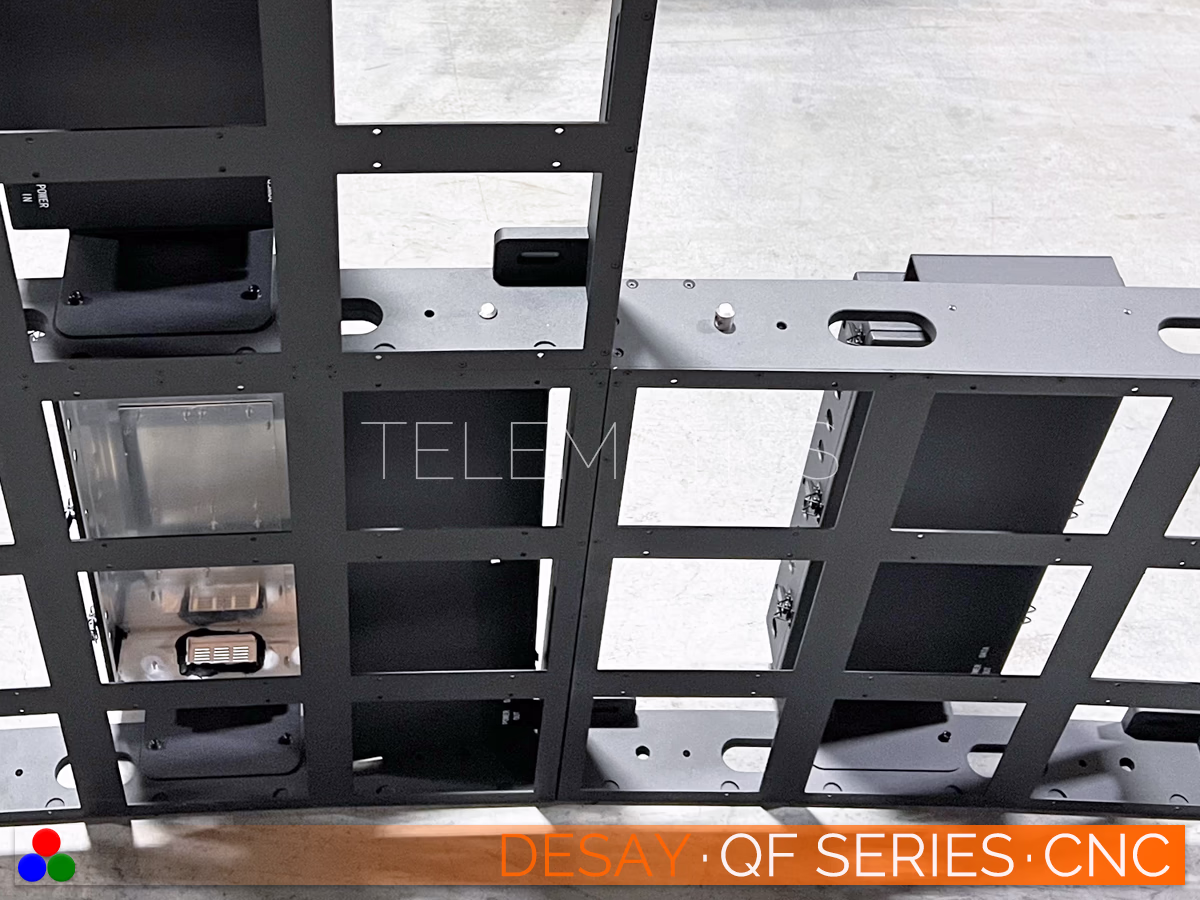

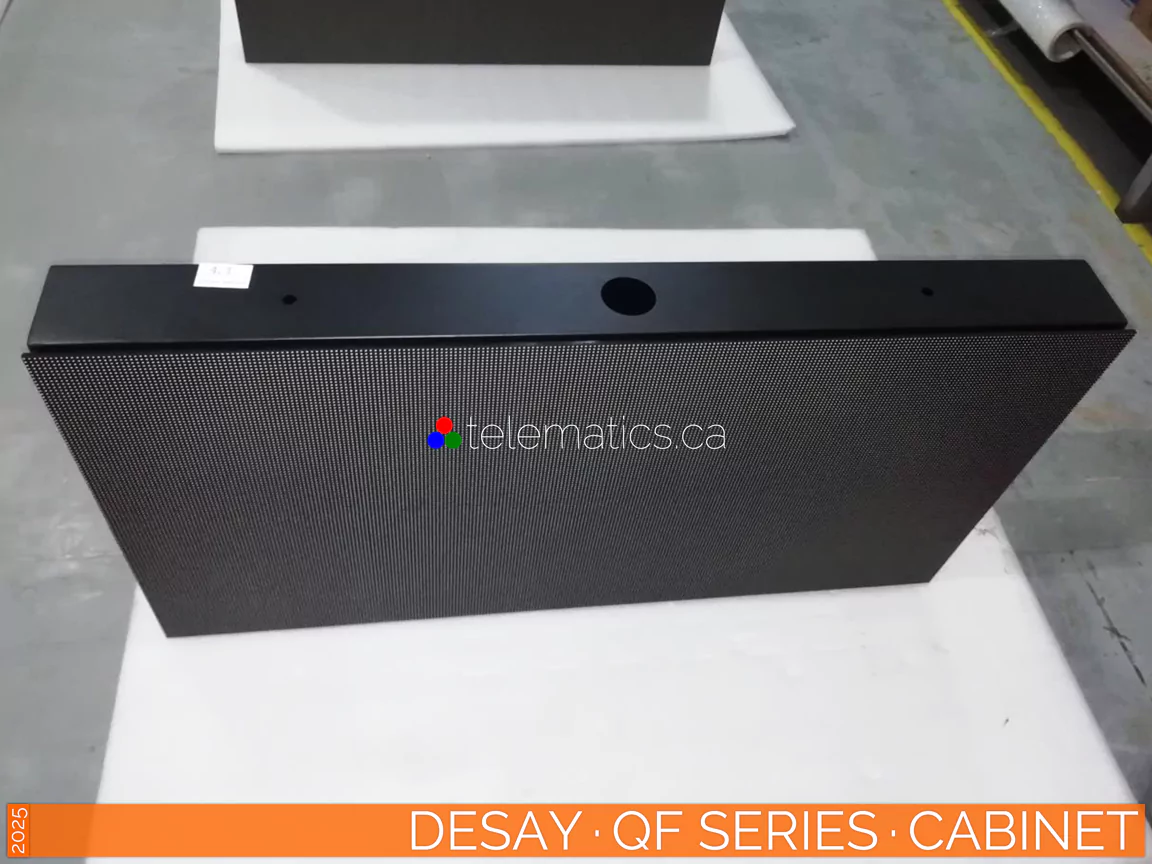

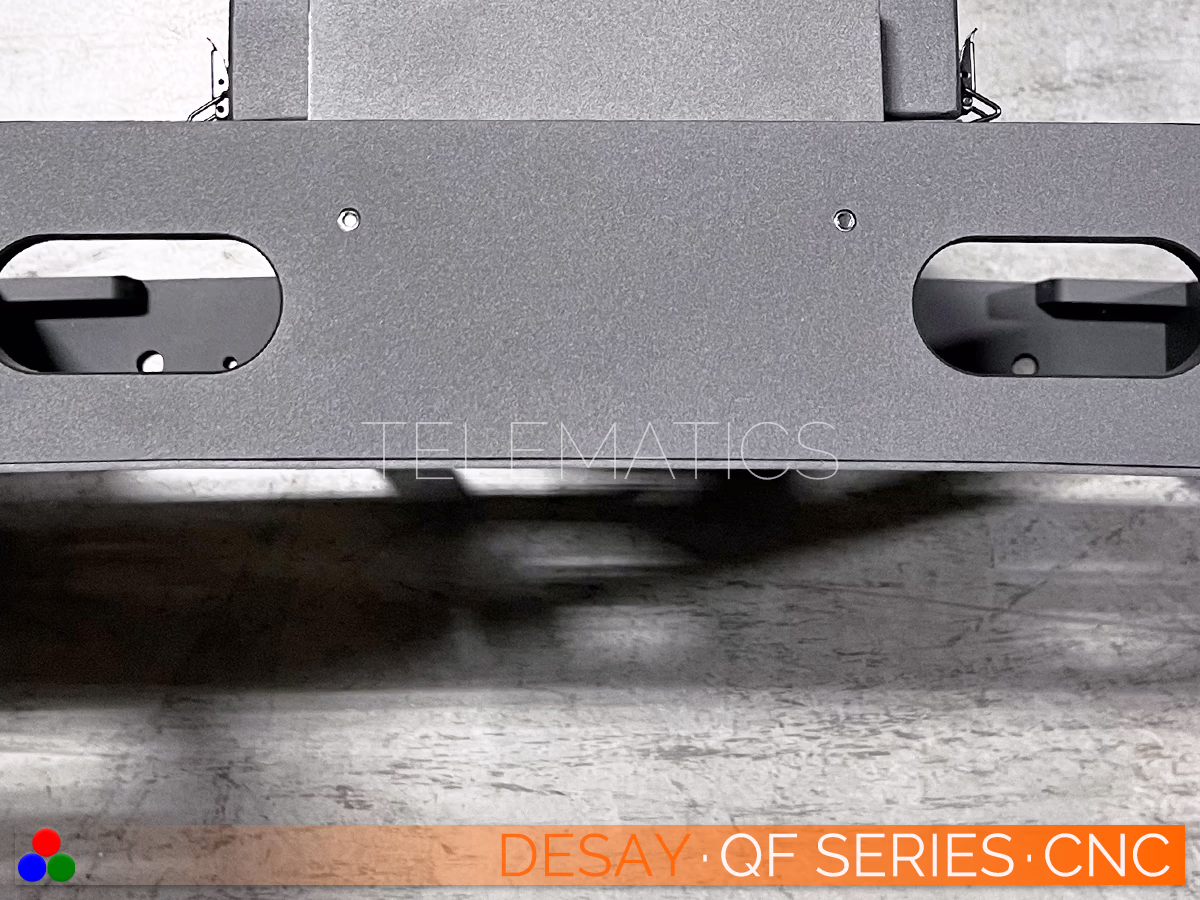

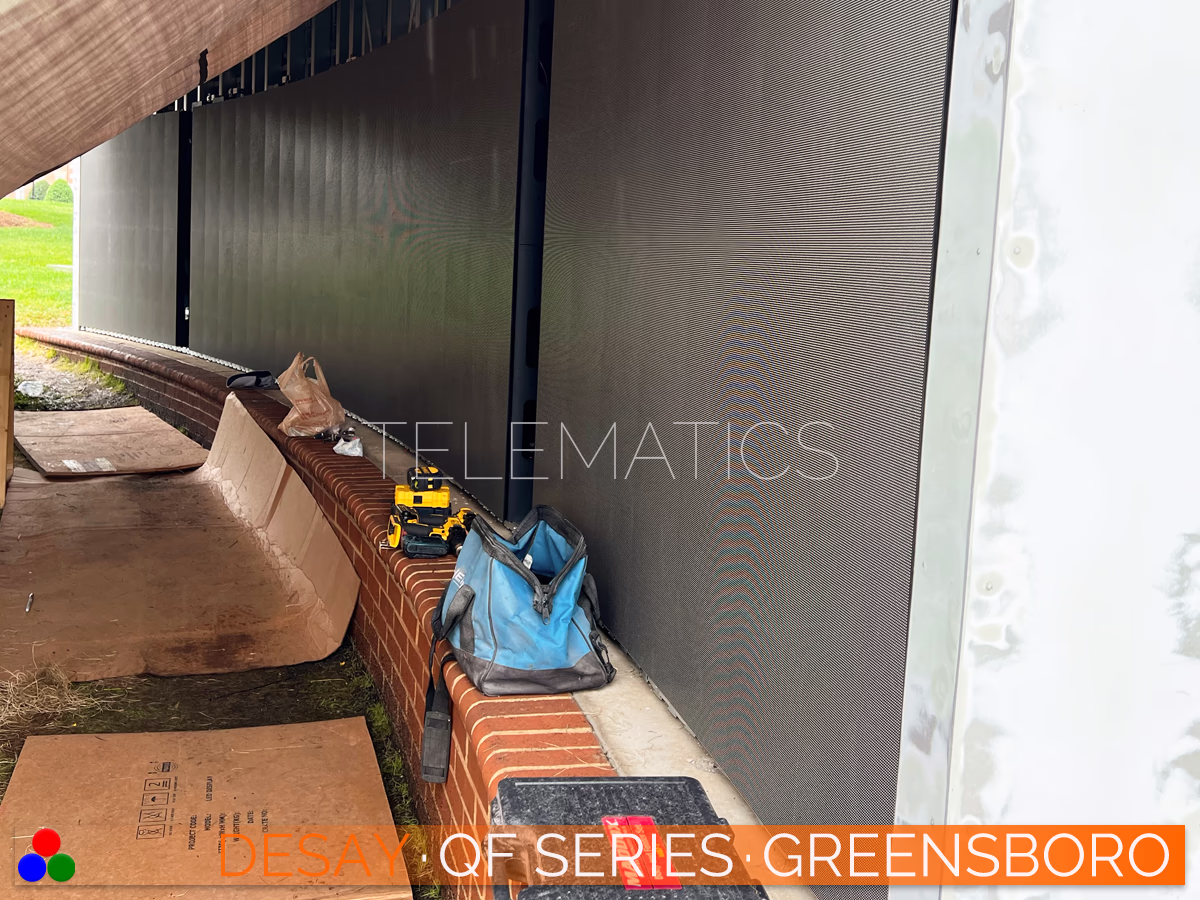

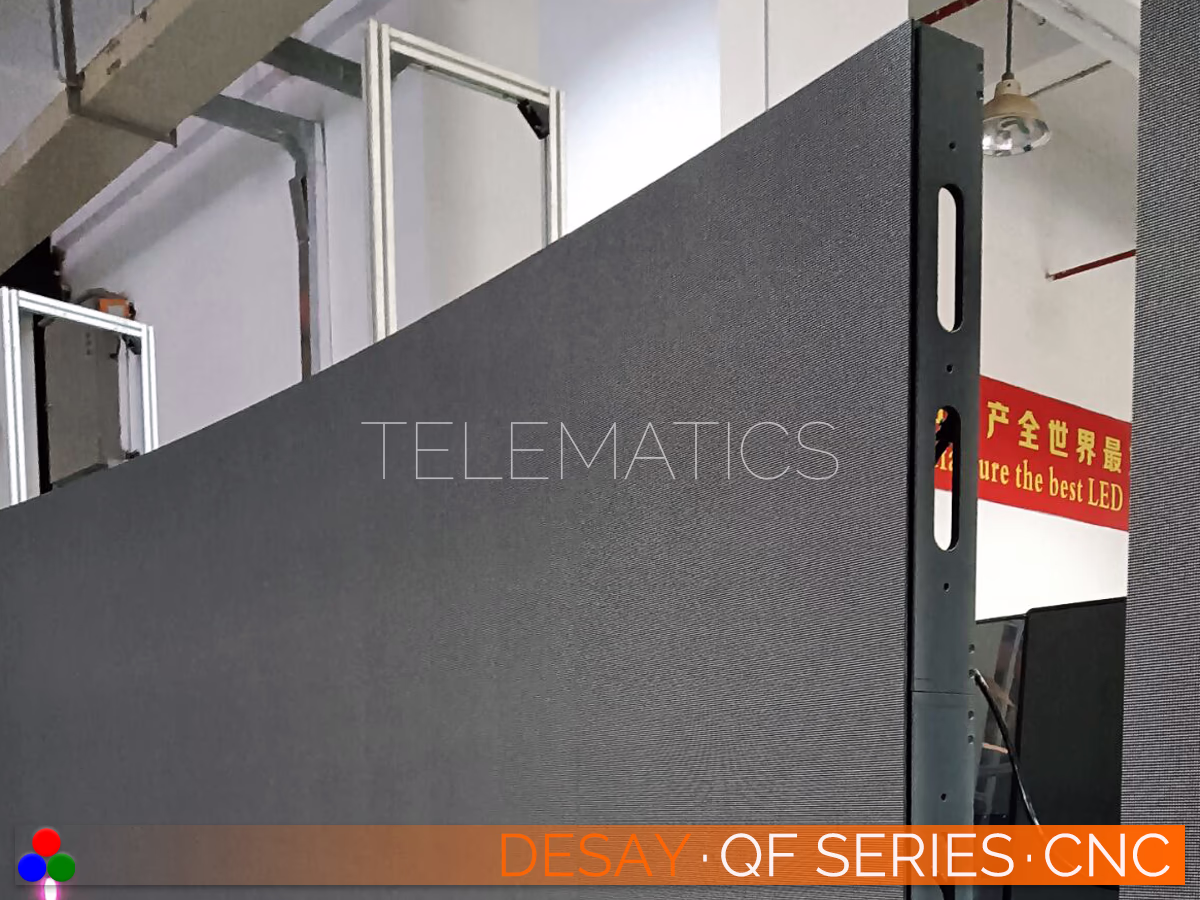

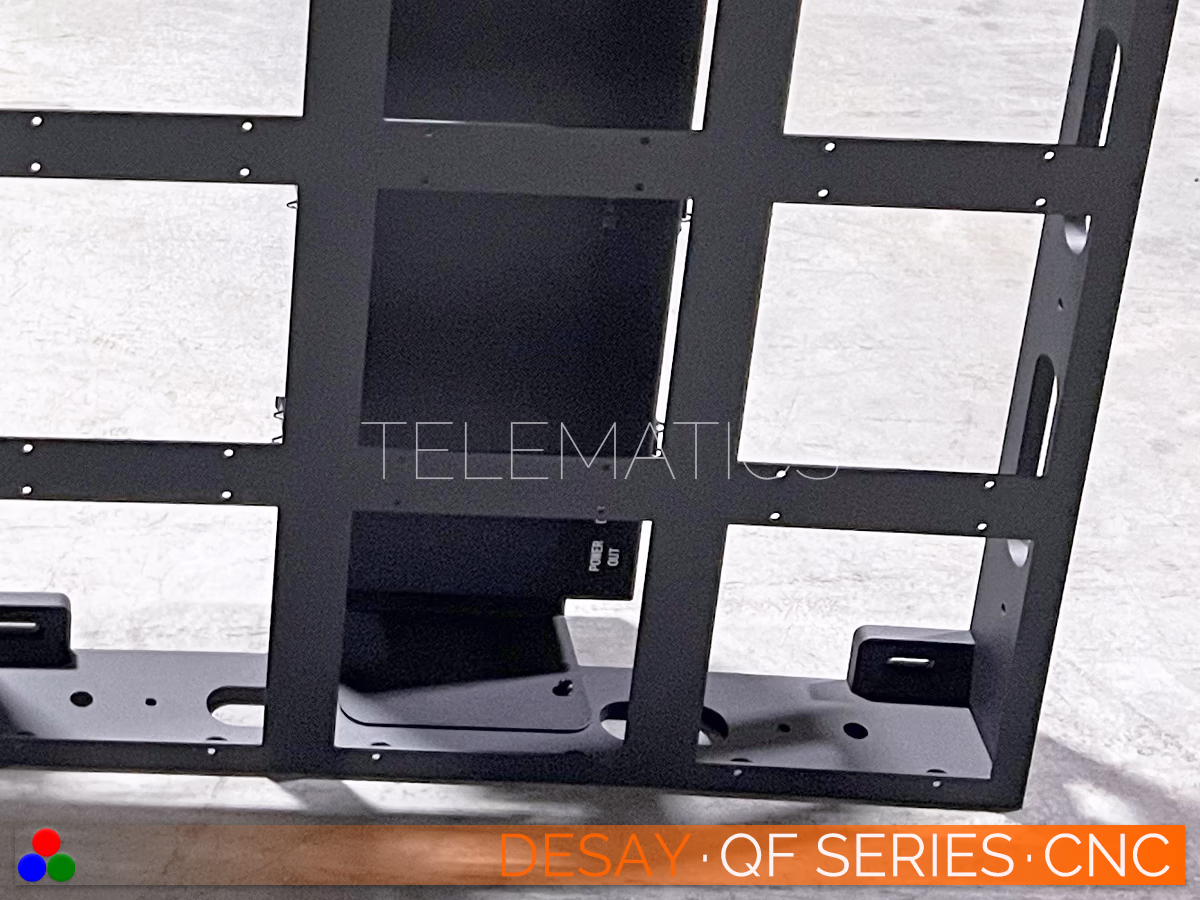

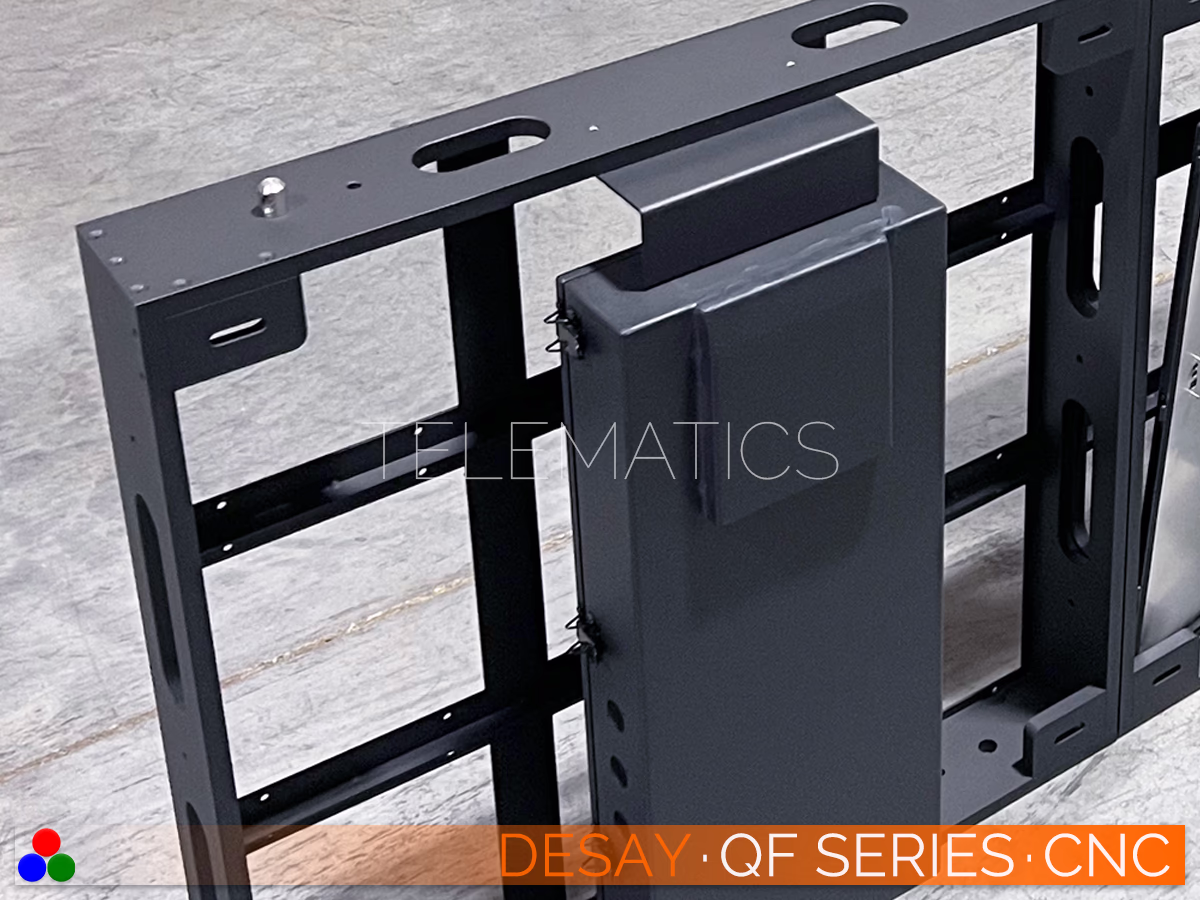

Standard and custom cabinets are built to your specifications and can be machined using CNC to create a precise concave or convex display surface for your project.
Schematics
We provide our Engineers with a detailed description of your project. They provide mechanical and electrical drawings based on your Desay Series selection and configured to best match the parameters of the installation.
Those drawings are generated in industry-standard Adobe PDF and Autodesk DWG formats to share with your team.
Lamps
The QF Series is equipped for indoor or outdoor applications with 3500 to ≥ 6,000 candelas/m2 of fully-adjustable brightness from Nationstar and Kinglight SMD lamps.
Refresh rates are set at up to 7680 Hz for broadcast video. 160° of indirect viewing means that everyone in your audience can see the QF Series whether they are coming or going.
Options
Once you have selected a Desay Series display that provides the resolution and brightness you need for your target audience, we have a short list of options to consider.
We offer custom panels with corners and contours, frames and rigging, spare components and warranty extensions. Pretty much anything you need. Just ask.

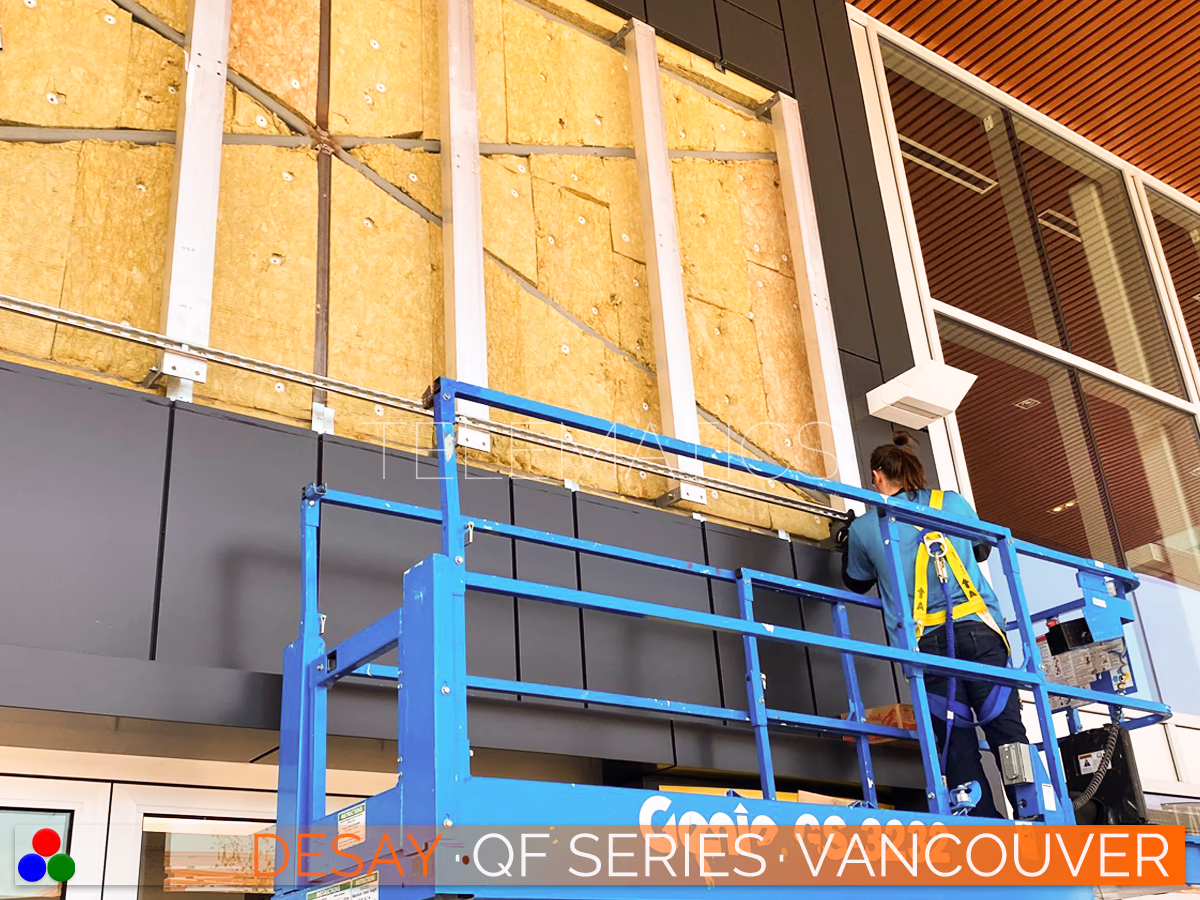

Installation

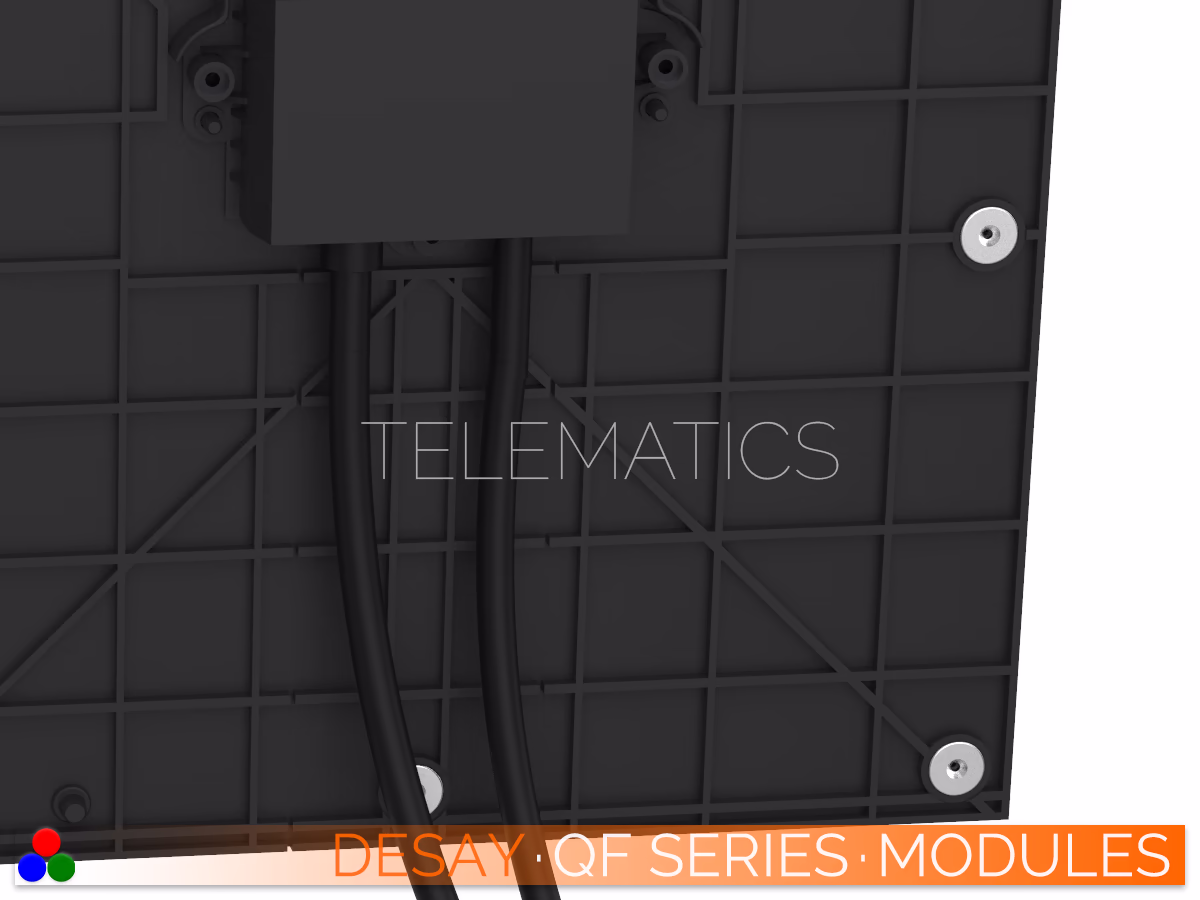

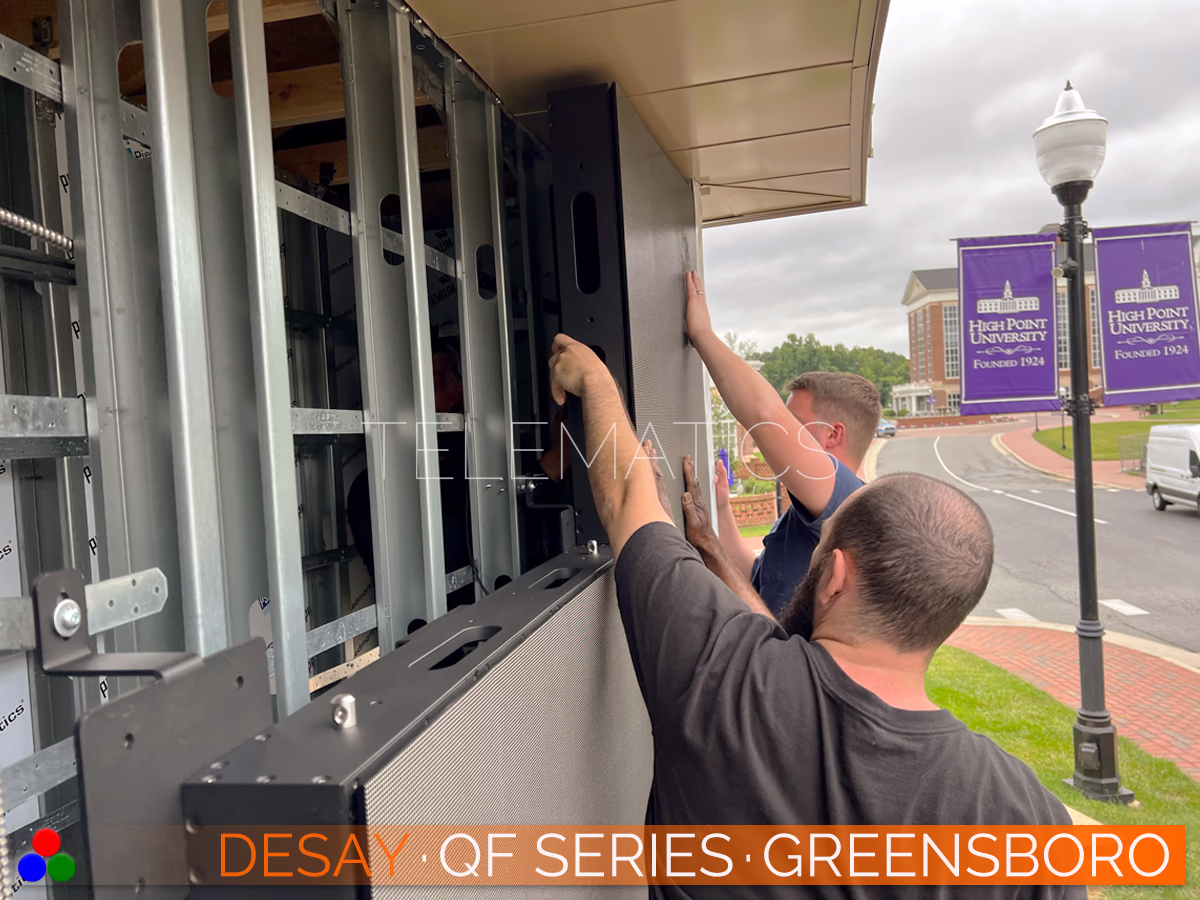

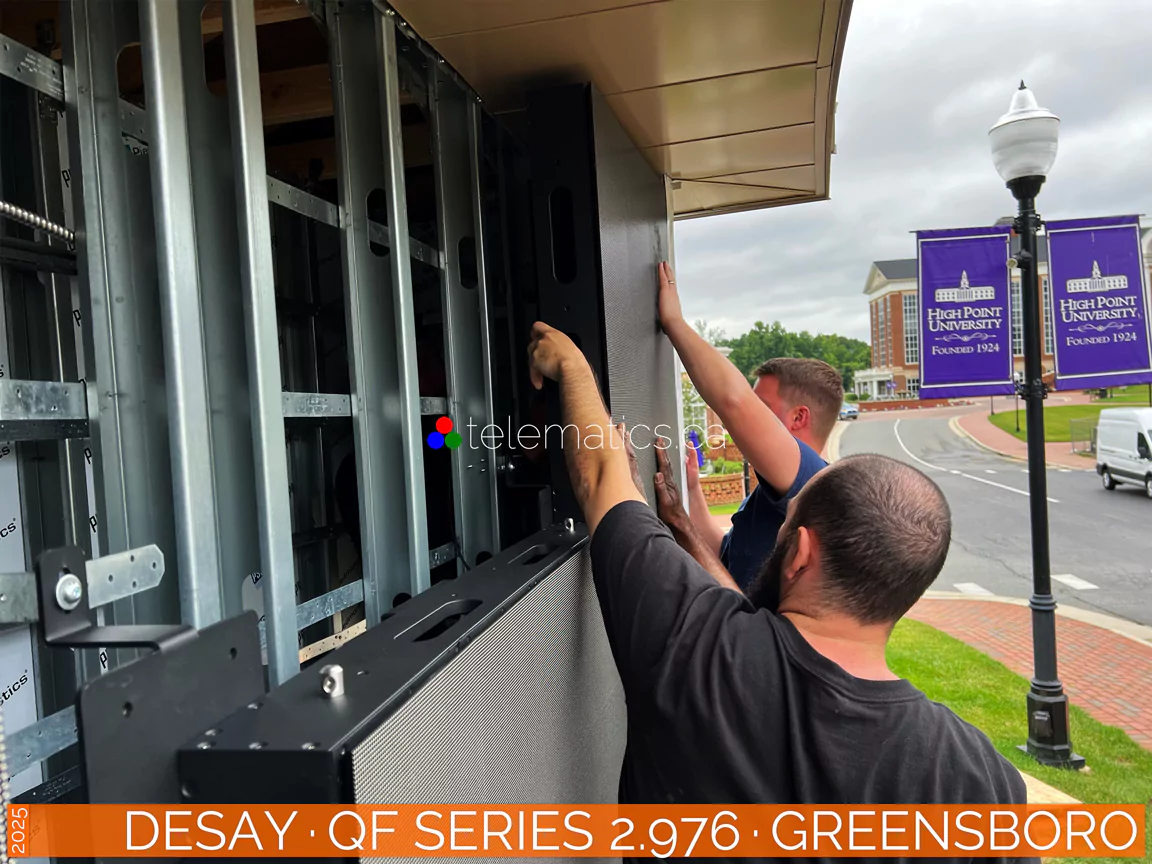

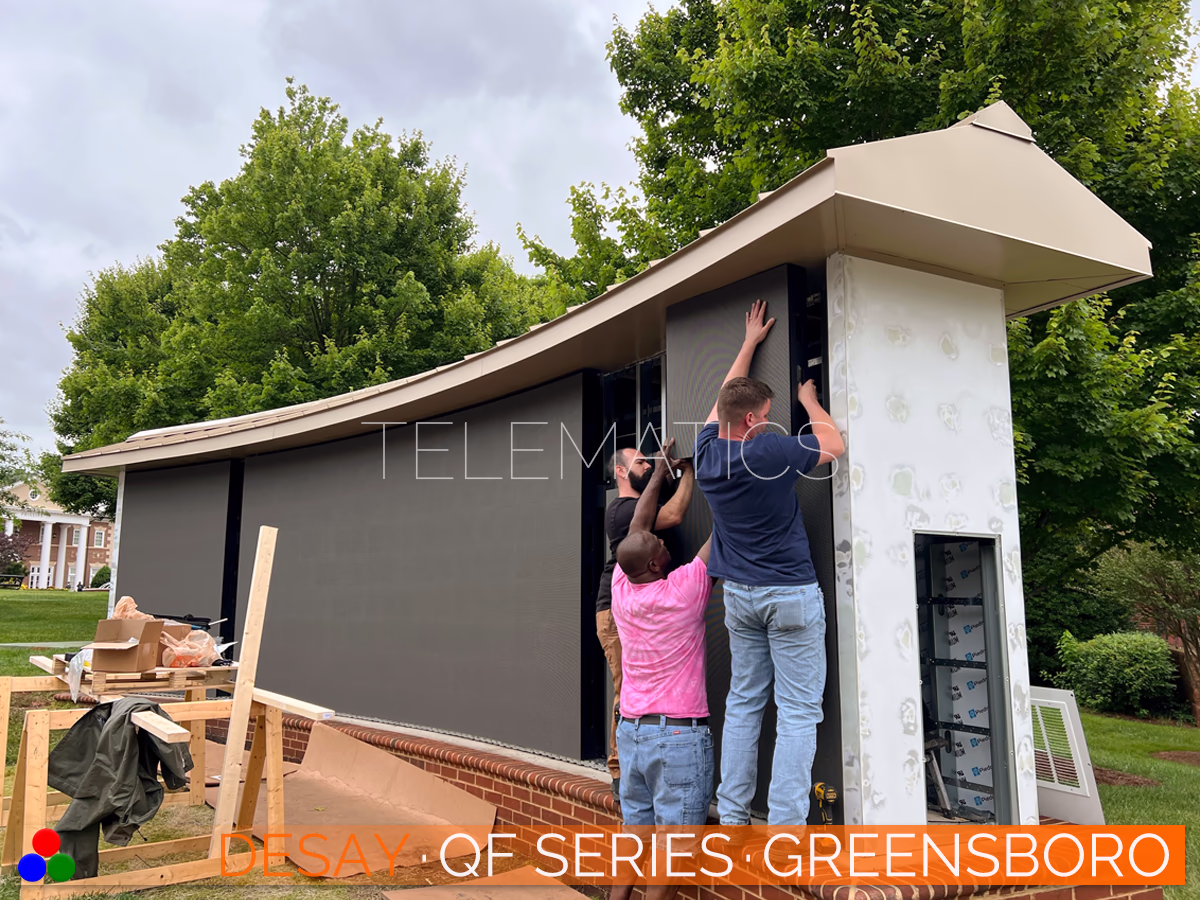

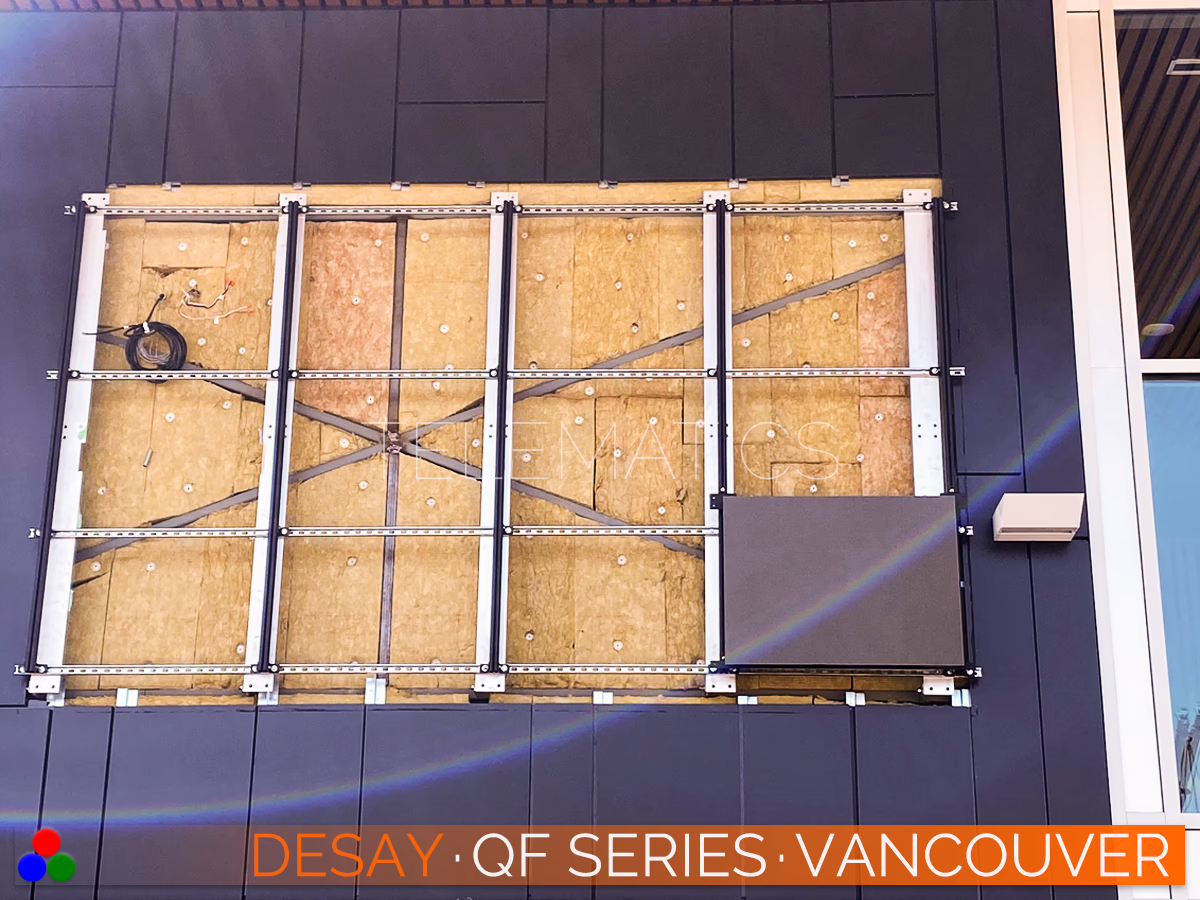

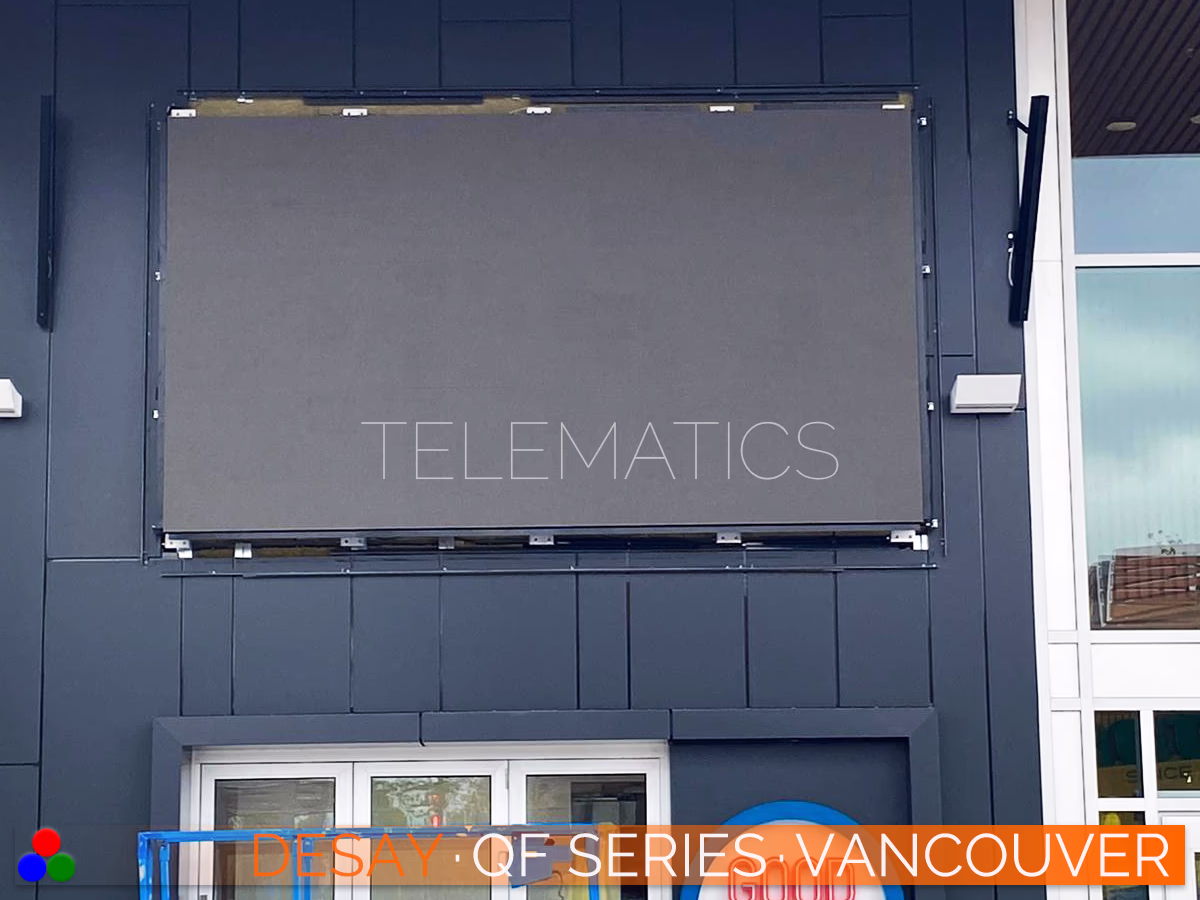

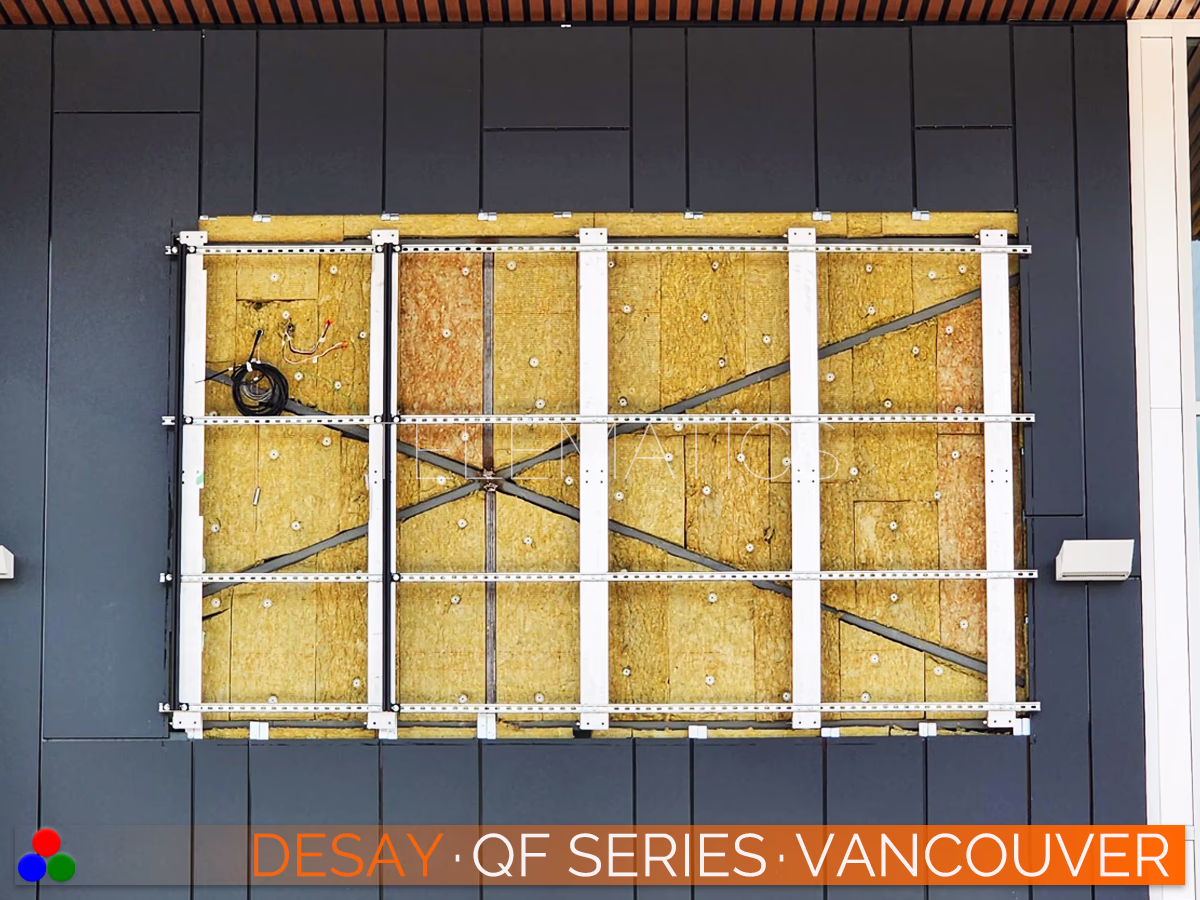

QF Series modules are magnetically attached to your custom cabinet or to a unique steel surface of your design and connected to a remote power box.

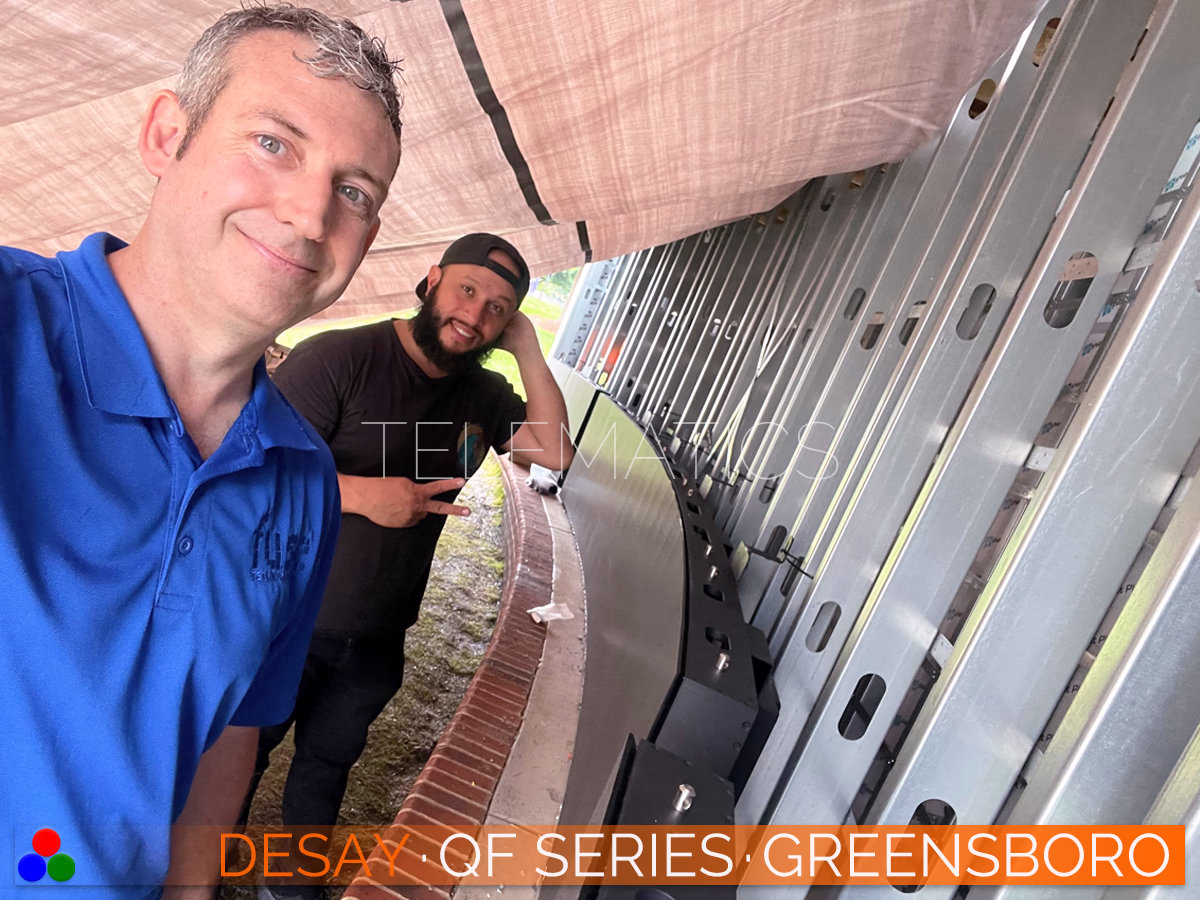

Follow any concave or convex line, wrap around a corner or a column, or fill out a simple rectangle within a cabinet secured to a lightweight frame bolted to a wall.
Cards
The QF Series relies on NovaStar's Armor and COEX receiver cards combined with Vision Management Platform software to provide Dynamic Booster, Full Grayscale Calibration and Image Booster functions to your display.
VMP supports Image Enhancement and frame-by-frame Pixel Analysis to reduce power consumption by >20%.
Quotes
We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.
At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.
Performance
Every redn × greenn × bluen lamp creates many times more color combinations than our eyes can see, along with an abundance of silky smooth shades of grey.
Display life is projected to be 100,000 hours or about 11 years of full-time use. Which means we look forward to hearing from you again sometime in 2037.
The Specifications· Modules ·· Prices ·· Extras ·· Pixels ·· Dimensions ·· Catalogs ·Desay · QF Series
Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead
QF Series | 2.604 | 2.976 | 3.906 | |||
|---|---|---|---|---|---|---|
Pixel Pitch · 2.604
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 2.604 is best viewed from 2.5 meter or more for optimal results. Calculate pixel density by dividing 2.604 into 1000 millimeters for 384 pixels per linear meter. Square this result for a product of 147,456 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 2.976
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 2.976 is best viewed from 3 meters or more for optimal results. Calculate pixel density by dividing 2.976 into 1000 millimeters for 336 pixels per linear meter. Square this result for a product of 112,896 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 3.906
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 3.906 is best viewed from 4 meters or more for optimal results. Calculate pixel density by dividing 3.906 into 1000 millimeters for 256 pixels per linear meter. Square this result for a product of 65,536 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. |
Panels · m² | ||||||
|---|---|---|---|---|---|---|
1415 · white smd
cu · ≥ 4000 cd/m²
| ||||||
1415 · black smd
cu · ≥ 3000 cd/m²
| ||||||
1415 · white smd
au · ≥ 5000 cd/m²
| ||||||
1515 · white smd
cu · ≥ 5000 cd/m²
| ||||||
1515 · white smd
au · ≥ 5000 cd/m²
| ||||||
1820 · white smd
cu · ≥ 5500 cd/m²
| ||||||
1820 · white smd
au · ≥ 5500 cd/m²
| ||||||
1921 · white smd
cu · ≥ 5500 cd/m²
| ||||||
1921 · white smd
au · ≥ 5500 cd/m²
|
Cards · Controllers | ||||||
|---|---|---|---|---|---|---|
card · novastar armor · a8s-n
1 card per panel
| ✓ | ✓ | ||||
card · novastar armor · a10s pro
1 card per panel
| ✓ | ✓ | ||||
controller · novastar · ku20
3,900,000 pixels
| ✓ | ✓ | ||||
controller · novastar · vx400 pro
2,600,000 pixels
| ✓ | ✓ | ||||
controller · novastar · vx1000 pro
6,500,000 pixels
| ✓ | ✓ | ||||
controller · novastar · mx30
6,500,000 pixels
| ✓ | ✓ |
Extras · Options | ||||||
|---|---|---|---|---|---|---|
cabinet · cnc
custom · m²
| ✓ | ✓ | ||||
cabinet · 90° corner
corner · m²
| ✓ | ✓ | ||||
rigging · service tool
vacuum · display
| ✓ | ✓ | ||||
rigging · french cleat
18mm · m²
| ✓ | ✓ | ||||
rigging · aluminum extrusion
40mm · m²
| ✓ | ✓ |
The Configurator· Our Pixels ·· Our Widths ·· Our Heights ·· Our Sizes ·· Our Powers ·· Our Options ·· Our Warranties ·· Our Freight ·· Our Prices ·· Our Quotes ·Desay · QF Series
Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson
Software | ||||||
|---|---|---|---|---|---|---|
software · vmp
configure · customize · manage
| ✓ | ✓ | ||||
software · novalct
configure · map · calibrate
| ✓ | ✓ | ||||
software · viplex
content · create · schedule
| ✓ | ✓ | ||||
software · v-can
switch · layer · preset
| ✓ | ✓ | ||||
cloud · vnnox media
publish · schedule
| ✓ | ✓ | ||||
cloud · vnnox care
manage · monitor
| ✓ | ✓ |
Documents | ||||||
|---|---|---|---|---|---|---|
pdf · specifications
hardware · power · dimensions
| ✓ | ✓ | ||||
pdf · manual
install · operate · troubleshoot
| ✓ | ✓ | ||||
files · factory warranty
standard · extended
| ✓ | ✓ | ||||
files · fine print
legal · certifications
| ✓ | ✓ |
The Sales Pitch· About Us ·· About The QF ·· About Desay ·Desay · QF Series
Dreaming, after all, is a form of planning. ~ Gloria Steinem
About Telematics Canada
Telematics Canada is a federally incorporated company based in Vancouver since 2000.
Our global partners manufacture premium direct-view LED displays for almost every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.
Our high-volume relationships with manufacturers and low corporate profile allow us to provide aggressive pricing and personalized service to a worldwide network of principals and project managers in the audio-visual and digital signage industries.
For more than 25 years, we have developed business relationships with thousands of people from every corner of the world.
Many are AV professionals and consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are architects and designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. Some are businesses that select and install their own systems with the assistance of local tradespeople and engineers.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective, and reliable.
And we always keep their secrets to ourselves.
About Desay
Desay Opto: A Global Leader in Optoelectronics
Desay Opto, a public corporation (002920) with a nine billion dollar market valuation, has quietly emerged as an industry leader in the optoelectronics sector. Ranked #1 in Asia and #3 worldwide for the past decade, Desay's Optoelectronic division has achieved remarkable success, with annual sales measured in tens of thousands of panels and cabinets.
Extensive Manufacturing Capabilities
Desay boasts three industrial zones with a total area exceeding one and a half million square meters. The company's headquarters, factory, and offices are located in Huizhou, with additional offices in Shenzhen. This extensive manufacturing footprint enables Desay to develop and produce some of the highest-quality LED displays in the world, earning the company a well-deserved reputation for excellence.
Cutting-Edge Technology
Desay's success is driven by its leading technology in Optoelectronic Control and Non-linear Alignment Techniques. By combining these technologies with rapid image compensation and point-to-point image data processing technology, Desay balances the light intensity of the frame, creating vivid pictures and distinct gradations. This results in an immersive experience for viewers, both indoors and outdoors.
Moreover, Desay has developed and patented the most advanced pixel enhancement technique in the industry. This system can improve the resolution of a full Desay display by a factor of four without degrading the contrast, further enhancing the visual experience.
Uncompromising Quality
Desay understands that cutting corners on build quality can have long-term consequences. While some manufacturers may opt for low-grade two-layer PCBs with tin plating and flammable materials to reduce costs, Desay chooses four- to six-layer boards with gold plating and fire retardants. This commitment to quality ensures that Desay's displays are not only superior but also safer, longer-lasting, and require less service, ultimately providing greater value to customers.
As Sir Henry Royce famously said, "The quality will remain long after the price is forgotten." Desay's advanced engineering and precise manufacturing processes result in outstanding products that embody this philosophy, solidifying the company's position as a global leader in optoelectronics.
Desay QF Series
High-Resolution Outdoor Display Technology
The Desay QF Series provides high-resolution outdoor digital signage with pixel-to-pixel spacing ranging from 3.906 to 2.604 millimeters. This architecture integrates up to 112,896 SMD lamps per square meter, maintaining precise visual clarity at close viewing distances in outdoor environments.
Optimized Brightness and Viewing Angles
Engineered for sustained outdoor deployment, the QF Series delivers an adjustable brightness range of 3,500 to over 5,000 candelas/m². Utilizing premium Nationstar, Refond, and Kinglight SMD lamps, the system ensures consistent content legibility with a 160° viewing angle and refresh rates up to 3840 Hz.
System Architecture and Image Processing
Powered by NovaStar Armor and COEX receiver cards integrated with the Vision Management Platform, the QF Series features Dynamic Booster, Full Grayscale Calibration, and Image Booster functions. Frame-by-frame Pixel Analysis optimizes visual output while reducing system power consumption by over 20%.
Modular Architecture and CNC Integration
The QF Series utilizes a highly adaptable modular architecture featuring 250 × 250 × 62 millimeter LED modules weighing less than 1 kilogram. These modules interface with decentralized power boxes, allowing integration with precision CNC-machined custom cabinets to form exact concave or convex display surfaces.
Customization and Technical Support
Desay provides extensive customization options, including bespoke panel geometries, specialized structural framing, and custom rigging hardware. Our engineering team delivers precise quote turnarounds and detailed schematics in standard industry formats to ensure structural integration with existing infrastructure.
Installation Flexibility and Lifespan
QF Series modules utilize a magnetic front-service attachment system, mounting directly to custom cabinets or prepared steel infrastructures. This unique design allows the display to wrap around 90° corners and columns or follow continuous architectural curves. Engineered for endurance, the system maintains high operational uptime over a projected ten-year life cycle.
The Portfolio· Our Photos ·· Our Videos ·· Our Projects ·Desay · QF Series
Seeing is believing, but feeling is the truth. ~ Thomas Fuller
The Frequently Asked Questions· Who· What· When· Where· Why· How?
Seeing is believing, but feeling is the truth. ~ Thomas Fuller
Frequently Asked Questions
Telematics Canada Inc. is an authorized factory distributor for Huizhou Desay Intelligent Technology Co., Ltd. and Xi'an NovaStar Tech Co., Ltd..
With over 25 years of operation as a federally incorporated Canadian entity, we serve as the direct commercial link between the manufacturer and the North American market. We provide the legal standing for contracts, import logistics, and authorized warranty execution for both brands.
What do you need? And what do you want?
You need a high-performance, high-quality LED display at a price that meets your budget.
You want it delivered sooner, not later. You want the installation to go smooth and fast and deployed without headaches.
And you need your investment to be backed by a solid warranty from a world-class manufacturer with local support from a domestic distributor.
Which is exactly what we offer.
When do you need it?
With few exceptions, every Desay Series display is custom-built for your specific project. This takes time, but the schedule is precise.
We design the display to match your exact installation parameters, generating schematics and wiring diagrams for your approval.
Manufacturing, performance testing, and packaging require three to four weeks. Freight adds one week by air or one month by sea. Also, China has a generous number of holidays throughout the year that can delay production scheddules.
With more than 20 years experience with this process, our advice is always the same: do not wait until the last minute before ordering.
So far, no one has taken our advice.
Where is everyone?
Don't you hate trying to figure out where everyone you want to work with is located? Why is that ever even a question?
Telematics Canada has offices in Vancouver, BC and in Montreal, QC, Canada. Our full contact information is at the bottom of every page.
Desay Optoelectronics designs, develops, and manufactures the Desay Series in Huizhou City and Shenzhen, Guangdong Province, China.
Xi'an NovaStar Tech Co. designs and develops their control architecture at the Nova Science and Technology Park in Xi'an, Shaanxi Province, with additional direct sales and logistics operations in Shenzhen, Guangdong Province, China.
We look forward to hearing from you.
Why are we meeting like this?
Chances are you have followed a link to our site that started with a search for LED display systems or distributors, and some other terms that landed us on the front page.
We recently asked Gemini Deep Research: What is the current estimated number of LED display manufacturers in China?. Here is a snippet of that response:
Mapping the Specialized Manufacturing Tiers
I have successfully categorized the Chinese LED display industry into a defined hierarchy, identifying a core group of approximately 1,000 specialized manufacturers. While regional registries in hubs like Shenzhen often list over 10,000 LED-related entities, I've distinguished that the specialized display market consists of roughly 10-20 top-tier global leaders, followed by 100-200 mid-sized professional manufacturers, and a broader base of roughly 800 smaller assembly-focused shops. I’ve also clarified corporate structures, such as ROE Visual's position as a premium arm of a larger conglomerate and the specific optoelectronic focus of groups like Desay, to ensure the census reflects true full-service providers.
The number of choices in this industry is daunting. And only a handful of these manufacturers will be operating a decade from now.
With a market capitalization of 10 billion USD, Desay is one of those top-tier companies.
We look forward to hearing from you.
How do we proceed?
Our first step should be an introduction to your Team, or at least those tasked with initiating the project.
We can do so with a spontaneous phone call or schedule a Teams or Zoom meeting if that is your preference.
We will need to know if this will be (✓) an indoor or outdoor LED display, (✓) how close your audience will be, if the display is (✓) a permanent or temporary installation, and (✓) how soon do you need your LED display up and running.
With this information, we can quickly generate an estimated price range for your consideration and go from there.
We look forward to your call.
