Desay B Series LED Strip Curtains · 15.625 to 100.000mm ·
USD ⁞ The 2026 B Series is a highly-transparent LED display for large-scale creative applications including billboards, building façades, and architectural displays. The daytime-brightness Desay B Series LED are configured in 3-meter-long lightweight strips aligned with custom steel cables or aluminum frames, providing an innovative solution for the most challenging installations.
Go Big. Priced To Fit. · USD /m²
Pixels
Pixel-to-pixel spacing ranges from 100.00 to a more compact 15.625 millimeters to create mostly transparent displays that align up to 4,096 SMD or DIP lamps into a single square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the B Series will look great from across the street or across the city.
Dimensions
The B Series is an aluminum LED curtain strip weighing less than a kilogram with x·y·z dimensions of 3400 × 12 × 13 millimeters with an option for various lengths and custom configurations to match your project.

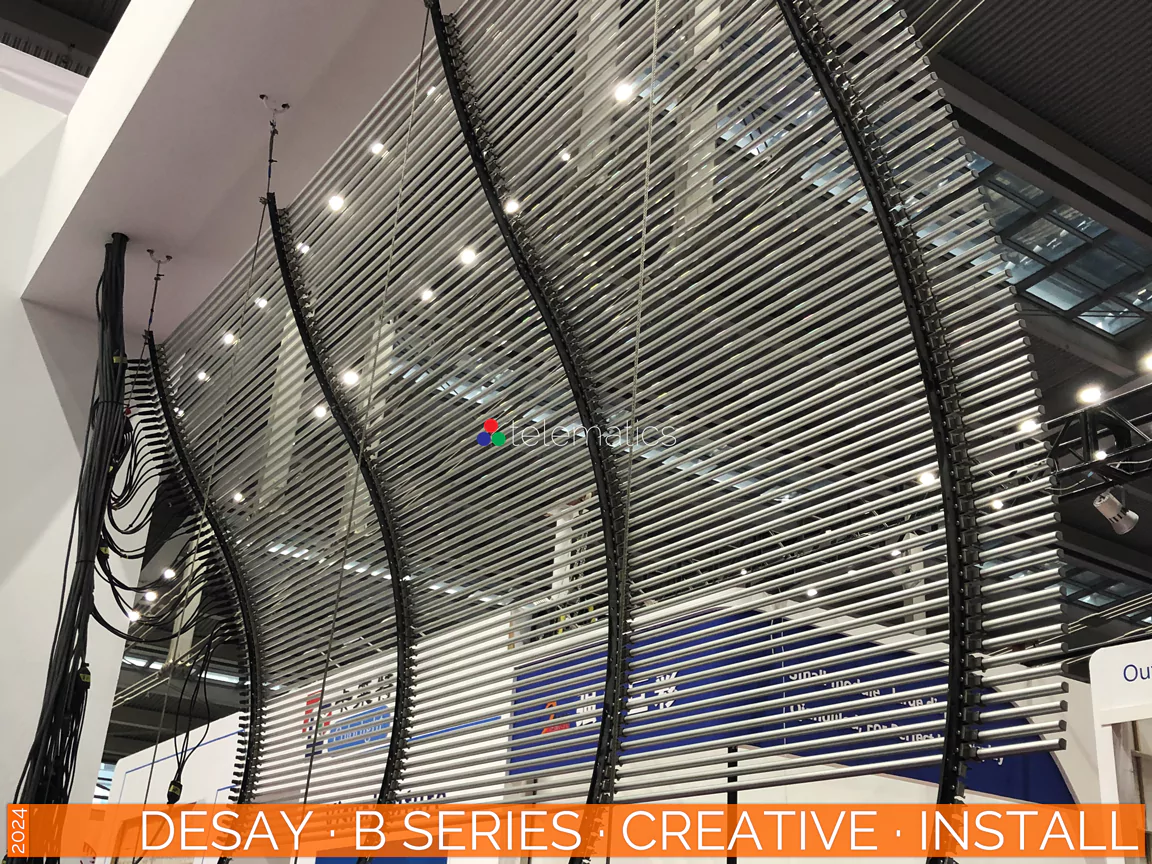

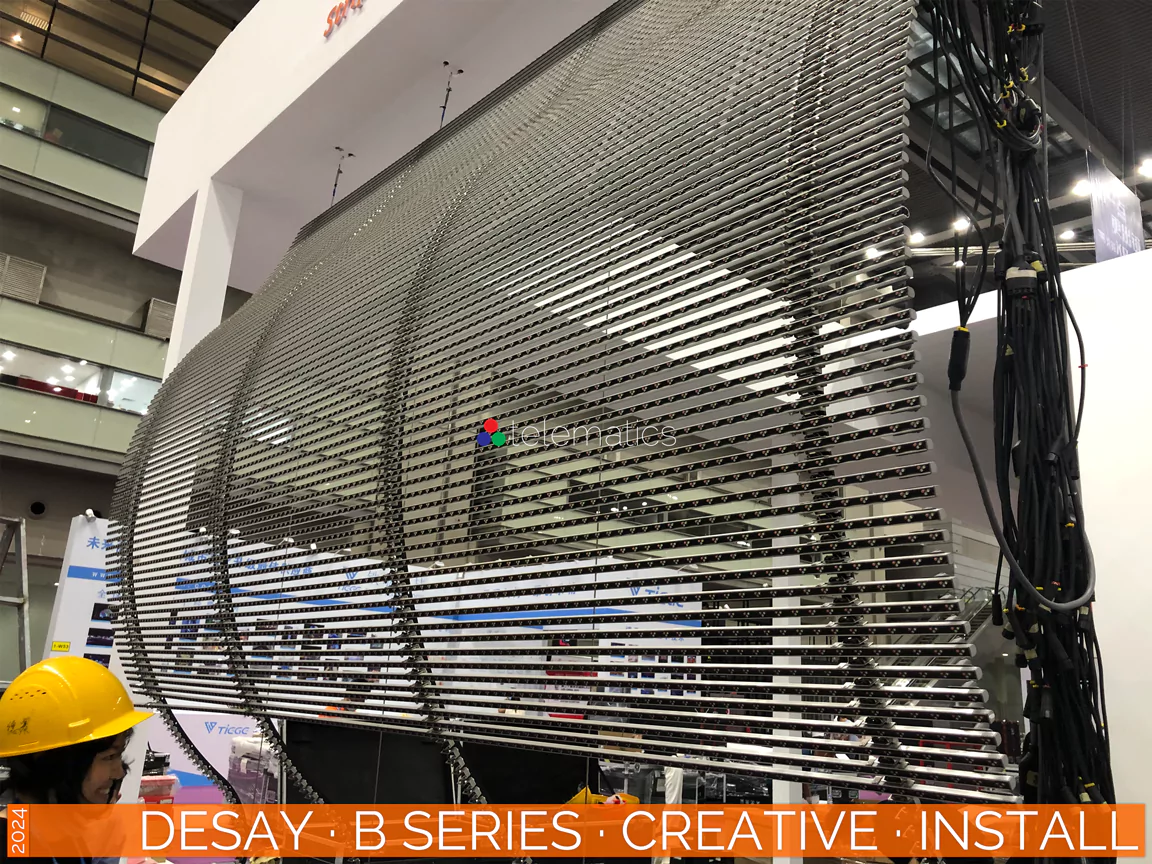

These strips create fantastically beautiful flat or curved displays that are visible for miles in every direction.
Schematics
We provide our Engineers with a detailed description of your project. They provide mechanical and electrical drawings based on your Desay Series selection and configured to best match the parameters of the installation.
Those drawings are generated in industry-standard Adobe PDF and Autodesk DWG formats to share with your team.
Lamps
B Series curtains are outdoor-equipped with 5,500 to ≥ 7,000 candelas/m2 of fully-adjustable brightness from a selection of Xindeco and Cree RGB lamps.
Refresh rates are set at up to 5000 Hz for broadcast video. 100° of indirect viewing means that everyone in your audience can see the B Series from anear and afar.
Options
Once you have selected a Desay Series display that provides the resolution and brightness you need for your target audience, we have a short list of options to consider.
We offer custom panels with corners and contours, frames and rigging, spare components and warranty extensions. Pretty much anything you need. Just ask.
Installation

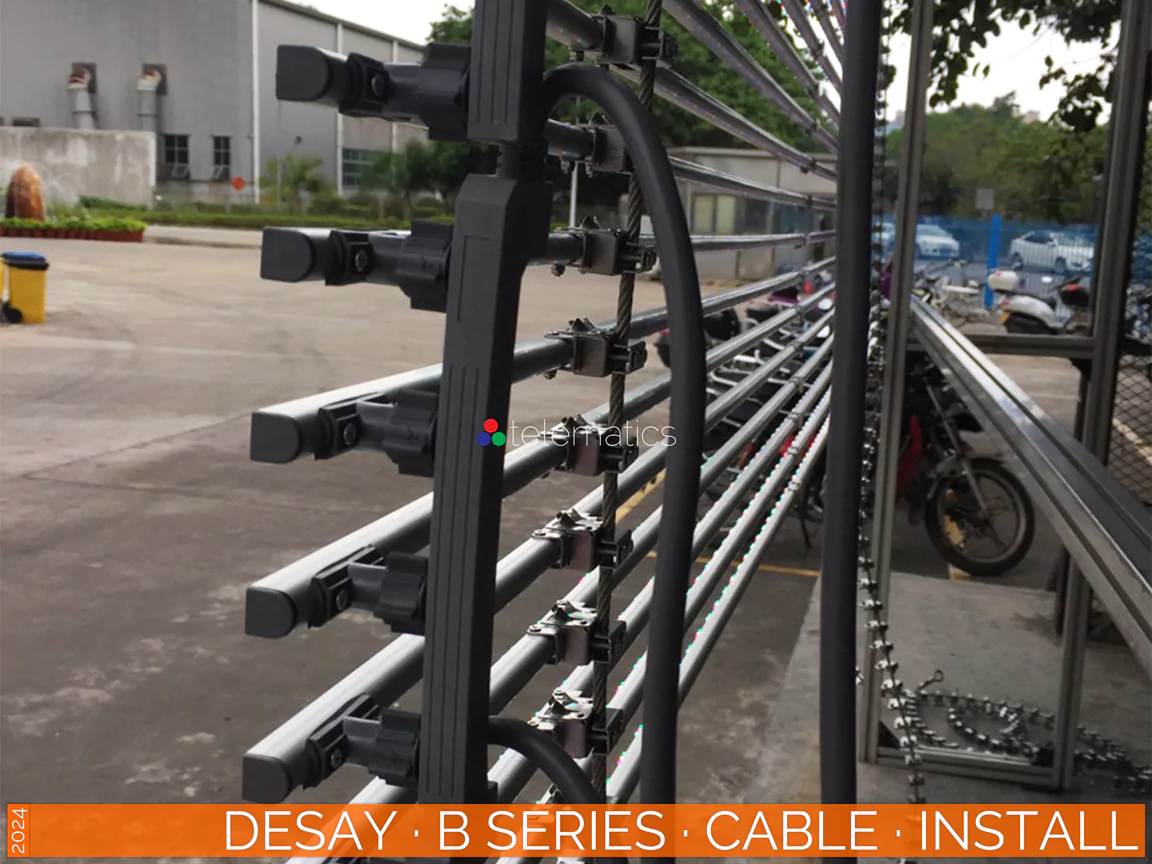

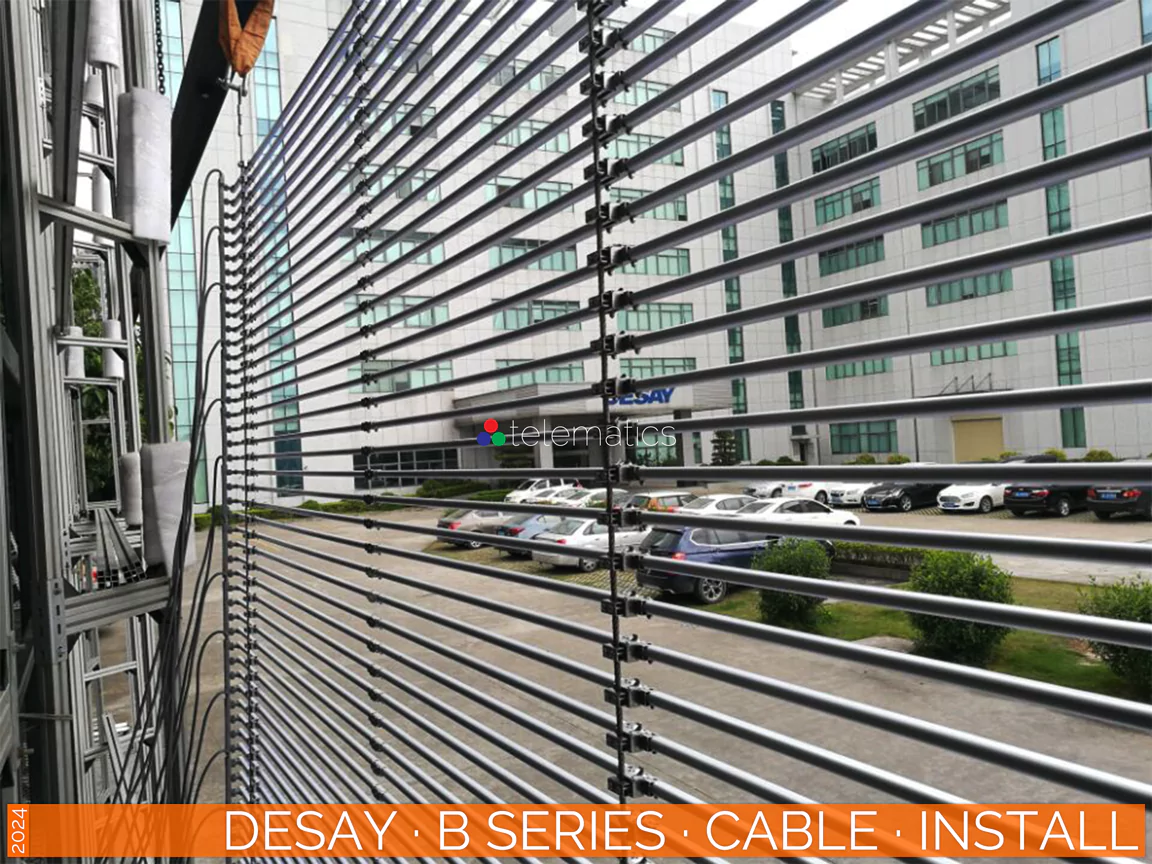

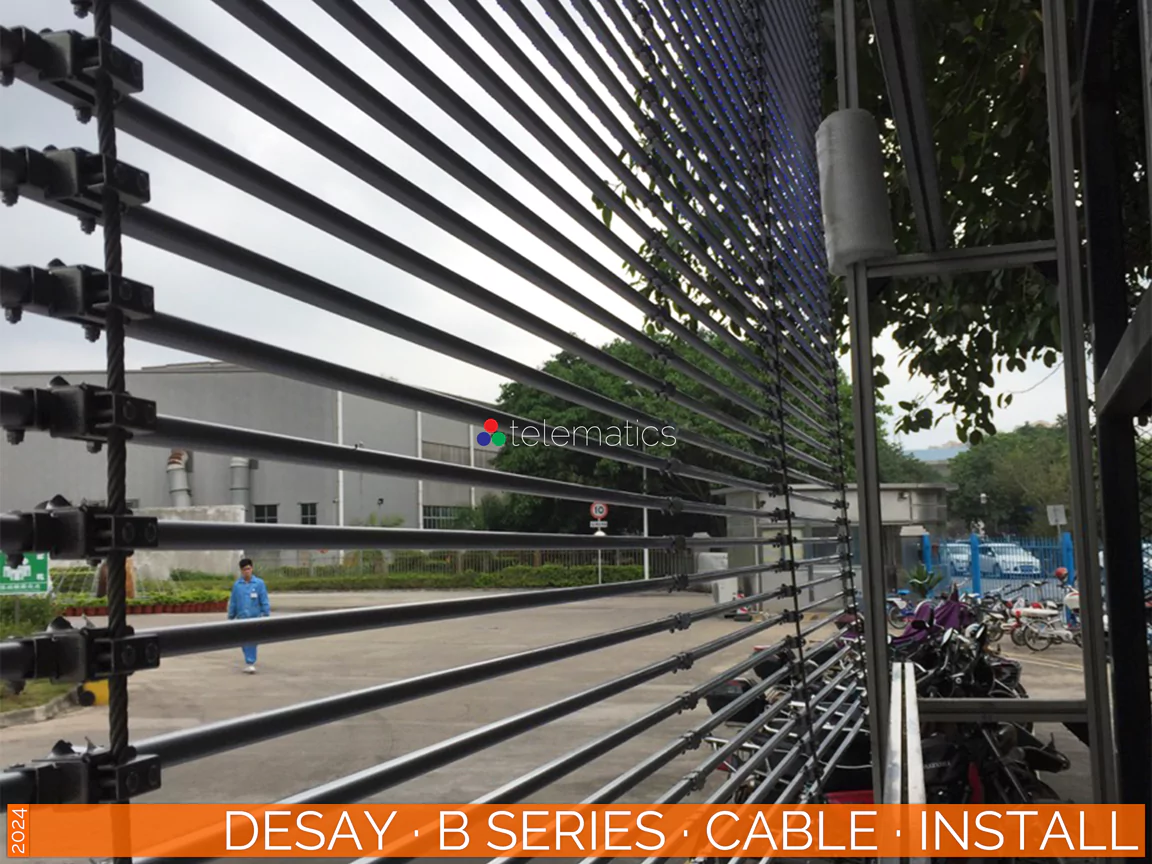

The B Series is equipped with steel cables that are anchored and provide a mounting system for the LED strips which are then easily installed and connected to create a large-format display surface.

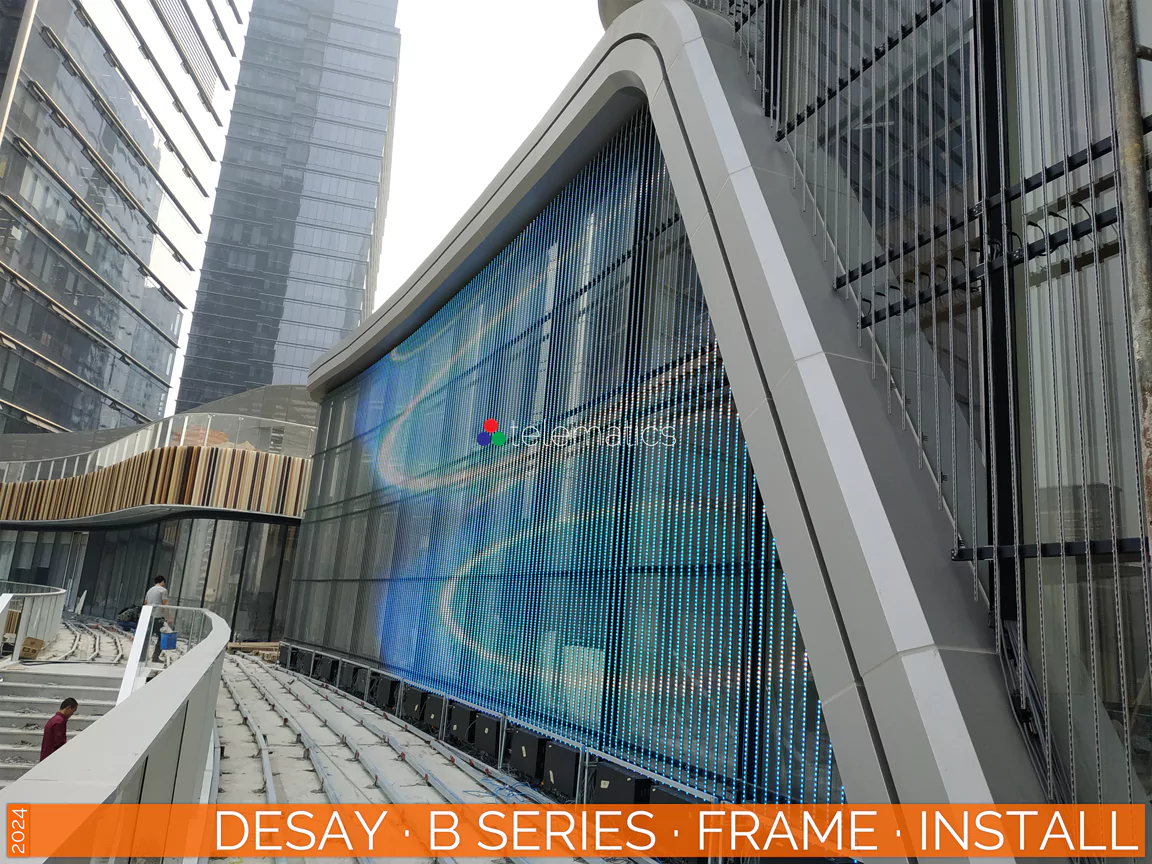

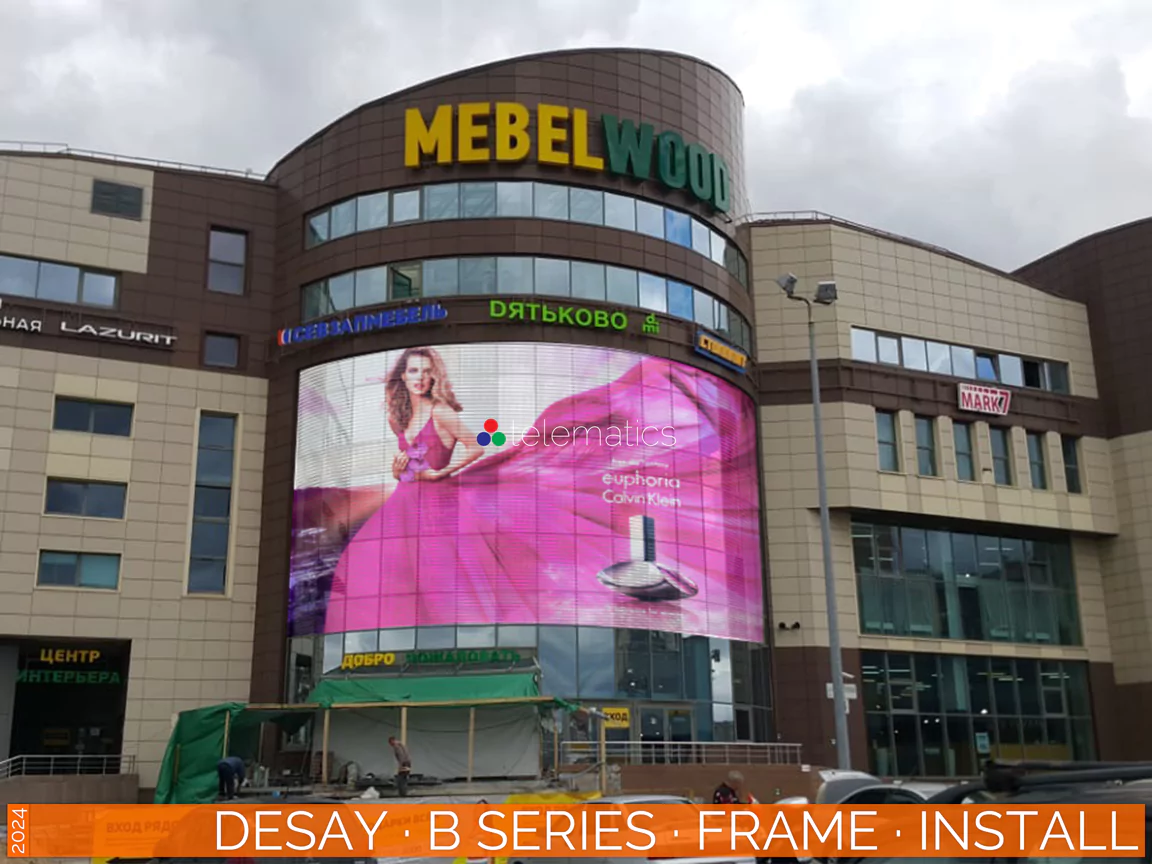

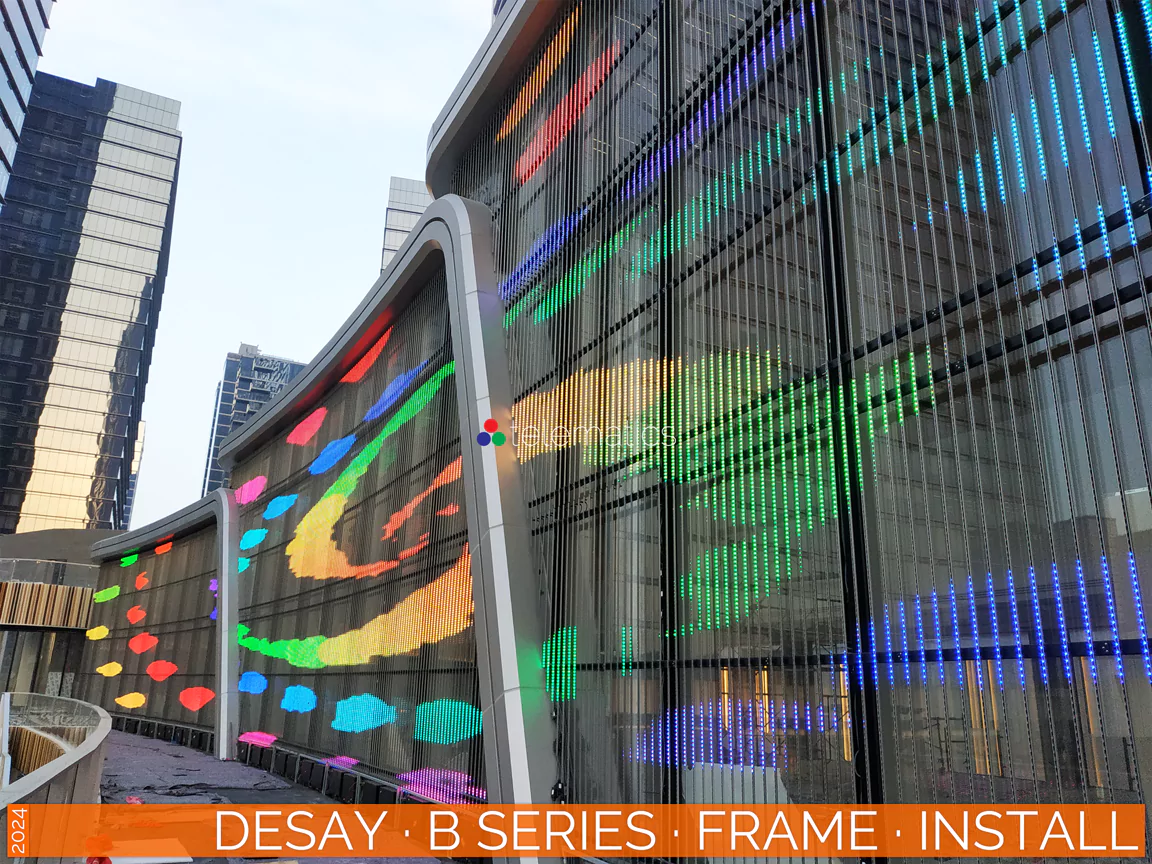

We offer the option of a lightweight frame structure that serves the same function with added flexibility.
Cards
The B Series relies on NovaStar's Armor receiver cards combined with ViPlex Express software to create and send publishing solutions to Taurus media players where digital content is stored and scheduled to play at set times.
Viplex Express combines with NovaStar's VNNOX cloud publishing and CARE display status monitoring service.
Quotes
We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.
At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.
Performance
Every redn × greenn × bluen lamp creates many times more color combinations than our eyes can see, along with an abundance of silky smooth shades of grey.
Display life is projected to be 100,000 hours or about 11 years of full-time use. Which means we look forward to hearing from you again sometime in 2037.
The Specifications· Modules ·· Prices ·· Extras ·· Pixels ·· Dimensions ·· Catalogs ·Desay · B Series
Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead
Matrix Series | 15.625 | 25.000 | 31.250 | 42.500 | 75.000 | 100.000 |
|---|---|---|---|---|---|---|
Pixel Pitch · 15.625
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 15.625 is best viewed from 16 meters or more for optimal results. Calculate pixel density by dividing 15.625 into 1000 millimeters for 64 pixels per linear meter. Square this result for a product of 4,069 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 25.000
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 25.000 is best viewed from 25 meters or more for optimal results. Calculate pixel density by dividing 25.000 into 1000 millimeters for 40 pixels per linear meter. Square this result for a product of 1,600 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 31.250
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 31.250 is best viewed from 32 meters or more for optimal results. Calculate pixel density by dividing 31.250 into 1000 millimeters for 32 pixels per linear meter. Square this result for a product of 1,024 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 42.250
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 42.250 is best viewed from 43 meters or more for optimal results. Calculate pixel density by dividing 42.250 into 1000 millimeters for 23 pixels per linear meter. Square this result for a product of 554 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 75.000
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 75.000 is best viewed from 75 meters or more for optimal results. Calculate pixel density by dividing 75.000 into 1000 millimeters for 13 pixels per linear meter. Square this result for a product of 178 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. | Pixel Pitch · 100.000
Pixel pitch, measured in millimeters, is the distance from the center of one LED pixel to the next, determining image clarity, resolution, and optimal viewing distance. The industry rule of thumb is that for every millimeter of pixel pitch, the corresponding viewing distance is one meter. A pixel pitch of 100.0006 is best viewed from 100 meters or more for optimal results. Calculate pixel density by dividing 100.000 into 1000 millimeters for 10 pixels per linear meter. Square this result for a product of 100 pixels per square meter and multiply by your display height and width to determine your total resolution.
For further information or to discuss your project, please contact Telematics Canada. |
Panels · m² | ||||||
|---|---|---|---|---|---|---|
1921 · white smd
cu · ≥ 5000 cd/m²
| ||||||
1r1g1b · white dip
au · ≥ 7000 cd/m²
| ||||||
2r2g2b · white dip
au · ≥ 5500 cd/m²
| ||||||
4r4g4b · white dip
au · ≥ 5500 cd/m²
|
Extras · Options | ||||||
|---|---|---|---|---|---|---|
strip · 3000 × 12 × 12
standard · m²
| ✓ | ✓ | ||||
strip · 3200 × 12 × 12
standard · m²
| ✓ | |||||
strip · 3375 × 12 × 12
standard · m²
| ✓ | |||||
strip · 3400 × 12 × 12
standard · m²
| ✓ | ✓ | ||||
rigging · steel cables
fly · m²
| ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
rigging · aluminum extrusion
frame · m²
| ✓ | ✓ | ✓ | ✓ | ✓ |
The Configurator· Our Pixels ·· Our Widths ·· Our Heights ·· Our Sizes ·· Our Powers ·· Our Options ·· Our Warranties ·· Our Freight ·· Our Prices ·· Our Quotes ·Desay · B Series
Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson
Software | ||||||
|---|---|---|---|---|---|---|
software · vmp
configure · customize · manage
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · novalct
configure · map · calibrate
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · viplex
content · create · schedule
| ✓ | ✓ | ✓ | ✓ | ✓ | |
software · v-can
switch · layer · preset
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cloud · vnnox media
publish · schedule
| ✓ | ✓ | ✓ | ✓ | ✓ | |
cloud · vnnox care
manage · monitor
| ✓ | ✓ | ✓ | ✓ | ✓ |
Documents | ||||||
|---|---|---|---|---|---|---|
pdf · specifications
hardware · power · dimensions
| ✓ | ✓ | ✓ | ✓ | ✓ | |
pdf · manual
install · operate · troubleshoot
| ✓ | ✓ | ✓ | ✓ | ✓ | |
files · factory warranty
standard · extended
| ✓ | ✓ | ✓ | ✓ | ✓ | |
files · fine print
legal · certifications
| ✓ | ✓ | ✓ | ✓ | ✓ |
The Sales Pitch· About Us ·· About The B ·· About Desay ·Desay · B Series
Dreaming, after all, is a form of planning. ~ Gloria Steinem
About Telematics Canada
Telematics Canada is a federally incorporated company based in Vancouver since 2000.
Our global partners manufacture premium direct-view LED displays for almost every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.
Our high-volume relationships with manufacturers and low corporate profile allow us to provide aggressive pricing and personalized service to a worldwide network of principals and project managers in the audio-visual and digital signage industries.
For more than 25 years, we have developed business relationships with thousands of people from every corner of the world.
Many are AV professionals and consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are architects and designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. Some are businesses that select and install their own systems with the assistance of local tradespeople and engineers.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective, and reliable.
And we always keep their secrets to ourselves.
About Desay
Desay Opto: A Global Leader in Optoelectronics
Desay Opto, a public corporation (002920) with a nine billion dollar market valuation, has quietly emerged as an industry leader in the optoelectronics sector. Ranked #1 in Asia and #3 worldwide for the past decade, Desay's Optoelectronic division has achieved remarkable success, with annual sales measured in tens of thousands of panels and cabinets.
Extensive Manufacturing Capabilities
Desay boasts three industrial zones with a total area exceeding one and a half million square meters. The company's headquarters, factory, and offices are located in Huizhou, with additional offices in Shenzhen. This extensive manufacturing footprint enables Desay to develop and produce some of the highest-quality LED displays in the world, earning the company a well-deserved reputation for excellence.
Cutting-Edge Technology
Desay's success is driven by its leading technology in Optoelectronic Control and Non-linear Alignment Techniques. By combining these technologies with rapid image compensation and point-to-point image data processing technology, Desay balances the light intensity of the frame, creating vivid pictures and distinct gradations. This results in an immersive experience for viewers, both indoors and outdoors.
Moreover, Desay has developed and patented the most advanced pixel enhancement technique in the industry. This system can improve the resolution of a full Desay display by a factor of four without degrading the contrast, further enhancing the visual experience.
Uncompromising Quality
Desay understands that cutting corners on build quality can have long-term consequences. While some manufacturers may opt for low-grade two-layer PCBs with tin plating and flammable materials to reduce costs, Desay chooses four- to six-layer boards with gold plating and fire retardants. This commitment to quality ensures that Desay's displays are not only superior but also safer, longer-lasting, and require less service, ultimately providing greater value to customers.
As Sir Henry Royce famously said, "The quality will remain long after the price is forgotten." Desay's advanced engineering and precise manufacturing processes result in outstanding products that embody this philosophy, solidifying the company's position as a global leader in optoelectronics.
Desay B Series
Transparent Architectural Display Technology
The Desay B Series provides high-transparency digital signage with pixel-to-pixel spacing ranging from 100.00 down to 15.625 millimeters. This architecture integrates up to 4,096 SMD lamps per square meter, maintaining visibility across cityscapes and large-scale outdoor environments.
Outdoor Brightness and Visibility Standards
The B Series delivers an architectural brightness baseline of 5,500 to 7,000 candelas/m². Utilizing advanced Xindeco and Cree RGB lamps, the system ensures consistent content legibility with a 100° viewing angle and refresh rates up to 5000 Hz for high-impact visual performance.
System Architecture and Network Management
Powered by NovaStar Armor receiver cards integrated with Taurus media players and ViPlex Express software, the system facilitates precise local and remote content scheduling. The infrastructure natively supports VNNOX cloud publishing and CARE display monitoring services for comprehensive real-time network oversight.
Modular Curtain Design and Scalability
The B Series utilizes lightweight aluminum LED curtain strips measuring 3400 × 12 × 13 millimeters. This modular architecture allows the strips to be assembled into expansive flat or arced displays. The hardware is designed for custom configurations to meet specific project geometries while maintaining a low weight-to-surface-area ratio.
Technical Support and Integration
Desay provides extensive engineering support, delivering precise schematics in standard industry formats to ensure structural integration with existing infrastructure. Hardware framing, rigging solutions, and curtain contours can be customized to exact project specifications.
Installation Flexibility and Endurance
The system is engineered for rapid deployment using steel cables or optional lightweight frame structures. This architecture permits the creation of expansive visual surfaces with minimal structural interference. Engineered for endurance, the B Series maintains high operational uptime over a projected 100,000-hour life cycle.
The Portfolio· Our Photos ·· Our Videos ·· Our Projects ·Desay · B Series
Seeing is believing, but feeling is the truth. ~ Thomas Fuller
The Frequently Asked Questions· Who· What· When· Where· Why· How?
Seeing is believing, but feeling is the truth. ~ Thomas Fuller
Frequently Asked Questions
Telematics Canada Inc. is an authorized factory distributor for Huizhou Desay Intelligent Technology Co., Ltd. and Xi'an NovaStar Tech Co., Ltd..
With over 25 years of operation as a federally incorporated Canadian entity, we serve as the direct commercial link between the manufacturer and the North American market. We provide the legal standing for contracts, import logistics, and authorized warranty execution for both brands.
What do you need? And what do you want?
You need a high-performance, high-quality LED display at a price that meets your budget.
You want it delivered sooner, not later. You want the installation to go smooth and fast and deployed without headaches.
And you need your investment to be backed by a solid warranty from a world-class manufacturer with local support from a domestic distributor.
Which is exactly what we offer.
When do you need it?
With few exceptions, every Desay Series display is custom-built for your specific project. This takes time, but the schedule is precise.
We design the display to match your exact installation parameters, generating schematics and wiring diagrams for your approval.
Manufacturing, performance testing, and packaging require three to four weeks. Freight adds one week by air or one month by sea. Also, China has a generous number of holidays throughout the year that can delay production scheddules.
With more than 20 years experience with this process, our advice is always the same: do not wait until the last minute before ordering.
So far, no one has taken our advice.
Where is everyone?
Don't you hate trying to figure out where everyone you want to work with is located? Why is that ever even a question?
Telematics Canada has offices in Vancouver, BC and in Montreal, QC, Canada. Our full contact information is at the bottom of every page.
Desay Optoelectronics designs, develops, and manufactures the Desay Series in Huizhou City and Shenzhen, Guangdong Province, China.
Xi'an NovaStar Tech Co. designs and develops their control architecture at the Nova Science and Technology Park in Xi'an, Shaanxi Province, with additional direct sales and logistics operations in Shenzhen, Guangdong Province, China.
We look forward to hearing from you.
Why are we meeting like this?
Chances are you have followed a link to our site that started with a search for LED display systems or distributors, and some other terms that landed us on the front page.
We recently asked Gemini Deep Research: What is the current estimated number of LED display manufacturers in China?. Here is a snippet of that response:
Mapping the Specialized Manufacturing Tiers
I have successfully categorized the Chinese LED display industry into a defined hierarchy, identifying a core group of approximately 1,000 specialized manufacturers. While regional registries in hubs like Shenzhen often list over 10,000 LED-related entities, I've distinguished that the specialized display market consists of roughly 10-20 top-tier global leaders, followed by 100-200 mid-sized professional manufacturers, and a broader base of roughly 800 smaller assembly-focused shops. I’ve also clarified corporate structures, such as ROE Visual's position as a premium arm of a larger conglomerate and the specific optoelectronic focus of groups like Desay, to ensure the census reflects true full-service providers.
The number of choices in this industry is daunting. And only a handful of these manufacturers will be operating a decade from now.
With a market capitalization of 10 billion USD, Desay is one of those top-tier companies.
We look forward to hearing from you.
How do we proceed?
Our first step should be an introduction to your Team, or at least those tasked with initiating the project.
We can do so with a spontaneous phone call or schedule a Teams or Zoom meeting if that is your preference.
We will need to know if this will be (✓) an indoor or outdoor LED display, (✓) how close your audience will be, if the display is (✓) a permanent or temporary installation, and (✓) how soon do you need your LED display up and running.
With this information, we can quickly generate an estimated price range for your consideration and go from there.
We look forward to your call.
