The Art Of Control· Fiber Converter ·· Single Mode ·· Multi Mode ·· 10G Optical Ports ·· 10 Ethernet Ports ·NovaStar · CVT10 Pro

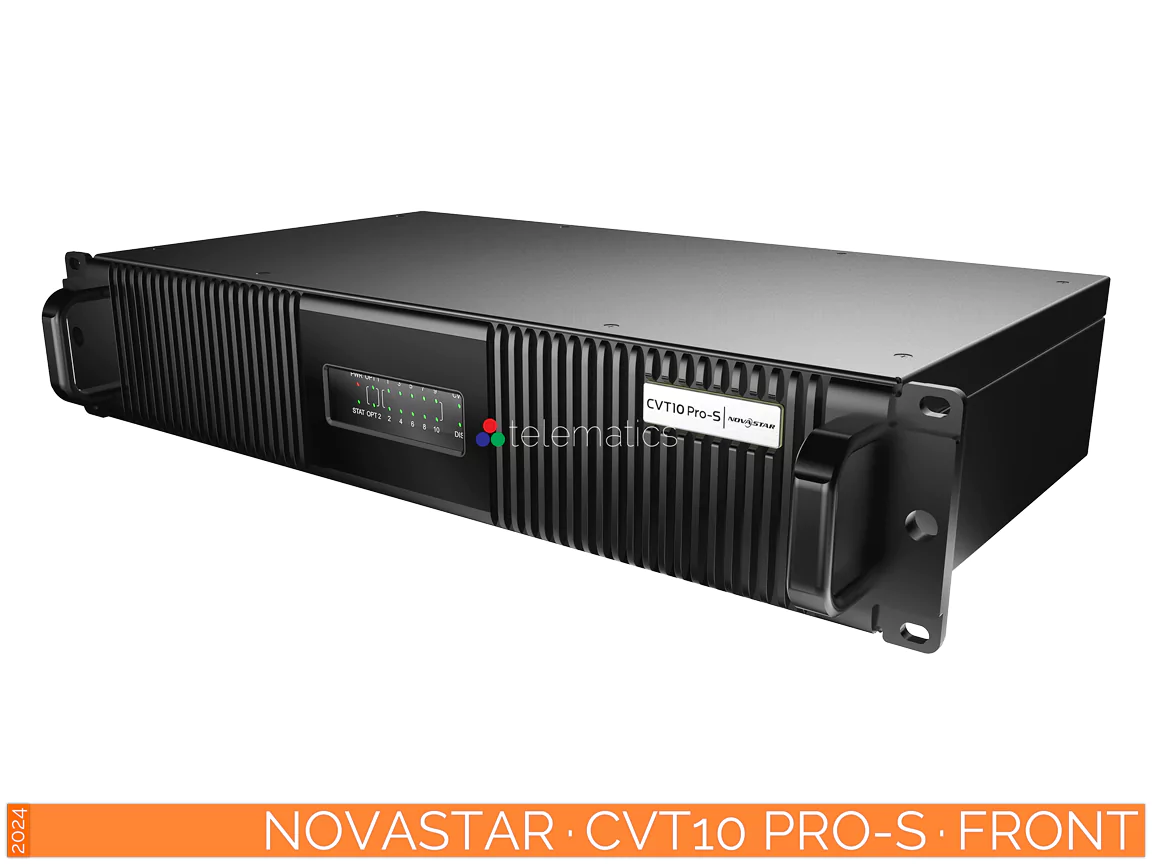

NovaStar CVT10 Pro Fiber Converter ·
⁞ The 2026 NovaStar CVT10 Pro is available in single-mode (CVT10 Pro-S) and multi-mode (CVT10 Pro-M) variants, delivering full-duplex, interference-free data transmission for long-distance fiber runs of 300m to 10km via 2x 10 Gbit/s hot-swappable optical ports and 10x Gigabit Ethernet ports. The NovaStar CVT10 Pro is a cost-effective solution that is compatible with all Desay LED display systems.Pixels
Pixels loaded through your best digital media source and NovaStar controller need to travel several meters, or perhaps many times that distance, to reach your display.
Optical connections on the controller cover that distance with fiber that connects to your CVT at the display, where Ethernet data cables fill out the matching ports.
Dimensions
The CVT10 Pro is offered in an industry-standard full-width rack enclosure weighing 5.9 kilograms with XYZ dimensions of 483 × 88 × 280 millimeters.
Whether for your next road show or a showcase installation, a NovaStar CVT fiber converter turns a case full of cables into a single optical run that is tucked away and out of sight.
Schematics
NovaStar offers concise User Manuals in both quick-start summaries and in comprehensive formats that detail every function. We provide full technical specifications on every product we produce.
NovaStar hardware and software are further described and reviewed in depth on the NovaStar YouTube channel.
Lamps
Those tiny LED lamps work with powerful driver ICs to turn simple RGB into a palette of up to 4,096 super smooth shades of grey and way more colors than your eyes can see.
Higher bit depth means denser data per pixel, which requires added cables to move it. The CVT allows you to keep those cables under control and condensed into a single fiber run.
Options
NovaStar offers a 3-year warranty on all products purchased from an Authorized NovaStar Distributor and certified for use in Canada, the United States, or other corresponding markets.
The factory warranty and online technical support does not cover any NovaStar products purchased through domestic online discount warehouses or overseas bulk resellers.
Installation
NovaStar's advanced hardware and software prioritize intuitive operation and rapid user adoption.
Our robust mechanical dials and digital interfaces enable intuitive control, dedicated setting selection, multiple pre-set configurations, and the user-centric design ensures a smooth learning curve for your team.
Cards
The CVT Series is looking to direct-connect to our NovaStar Armor A10S Pro receiver cards, or match up with the newest 5G NovaStar XA50 Pro for the highest resolution displays.
The A10S Pro and XA50 Pro each bring stepless output scaling, low latency, 3D support, and pixel-level brightness and chroma calibration to your audience.
Quotes
We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.
At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.
Performance
NovaStar products are built to perform under demanding conditions for many years.
Whether your installation is a single media player controlling a handful of receiver cards in a billboard, or a massive virtual studio creating a stage for your next theatrical release, you can count on NovaStar to be your reliable partner.
The Specifications· Prices ·· Single Mode ·· Multi Mode ·· Input ·· Output ·· Features ·· Control ·· PDF ·NovaStar · CVT10 Pro
Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead
Specifications | ||||||
|---|---|---|---|---|---|---|
optical ports
available · quantity
|
1
|
4
|
2
|
2
|
1
|
1
|
optical bandwidth
gigabits/s · each
|
40
|
10
|
10
|
10
|
1
|
1
|
ethernet ports
available · quantity
|
8
|
16
|
10
|
10
|
1
|
1
|
ethernet bandwidth
gigabits/s · each
|
5
|
1
|
1
|
1
|
1
|
1
|
transmission · single-mode
kilometers · distance
|
10
|
10
|
10
|
10
|
20
| |
transmission · multi-mode
meters · distance
|
100
|
300
|
300
|
300
|
550
| |
power · dual
redundant
|
✗
|
✓
|
✗
|
✗
|
✗
|
✗
|
Models · Cut Sheet |
|---|
| sku | |
|---|---|
| description | |
| inputs | |
| outputs | |
| optical ports | |
| transmission · single-mode | |
| transmission · multi-mode | |
| control port | |
| power · dual | |
| max power | |
| operating temp | |
| ip rating | |
| unit dimensions | |
| pkg dimensions | |
| net weight | |
| gross weight | |
| usd | |
| cad |
The Sales Pitch· About Us ·· About The CVT10 Pro ·· About NovaStar ·NovaStar · CVT Series
Dreaming, after all, is a form of planning. ~ Gloria Steinem
About Telematics Canada
Telematics Canada is a federally incorporated company based in Vancouver since 2000.
Our global partners manufacture premium direct-view LED displays for almost every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.
Our high-volume relationships with manufacturers and low corporate profile allow us to provide aggressive pricing and personalized service to a worldwide network of principals and project managers in the audio-visual and digital signage industries.
For more than 25 years, we have developed business relationships with thousands of people from every corner of the world.
Many are AV professionals and consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are architects and designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. Some are businesses that select and install their own systems with the assistance of local tradespeople and engineers.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective, and reliable.
And we always keep their secrets to ourselves.
About NovaStar
NovaStar: The Foundational Intelligence of LED Displays
NovaStar (SZSE: 301589), with an enterprise value of approximately 2.4 billion USD, operates as the central intelligence layer of the global optoelectronics industry. Maintaining a market share exceeding 60% in core LED control systems, NovaStar powers visual deployments across more than 140 countries.
Extensive Global Infrastructure
Operations are anchored by the vertically integrated, 30,000-square-meter Nova Science and Technology Park in Xi'an. Supported by dedicated research and development centers in Beijing and Shenzhen, this corporate ecosystem houses a global workforce of over 3,126 personnel. NovaStar maintains 44 branches worldwide, ensuring localized technical engineering and immediate field support.
Algorithmic Calibration Technology
NovaStar's processing architecture utilizes proprietary algorithmic calibration and computational intelligence. Dynamic Booster technology and 22bit+ grayscale enhancement execute frame-by-frame signal analysis to modulate localized power distribution. This increases contrast ratios while reducing system-wide power consumption and thermal exhaust by over 20%.
Furthermore, NovaCLB and CalCube systems calculate unique correction coefficients for individual pixels. These systems mitigate visual variance, rendering uniform canvases with brightness tolerances of less than 1% across massive digital architecture.
Uncompromising Quality Assurance
NovaStar operates independent, CNAS-certified industrial laboratories to execute rigorous environmental and mechanical stress testing. Hardware is subjected to extreme thermal cycling from -20 to 50 degrees Celsius, intense mechanical vibration, and strict EMC Class B certification protocols to prevent failure during mission-critical operations.
Supported by a portfolio exceeding 1,260 domestic patents and a reinvestment of 15.8% of operational revenue into research and development, NovaStar provides an infrastructure engineered for absolute operational stability and long-term technological relevance.
NovaStar CVT Series
Fiber-to-Ethernet Signal Conversion
The NovaStar CVT Series functions as a passive fiber-to-Ethernet converter, translating a controller's optical output back to standard Ethernet at the display end. Each unit sits between the sending card and the receiving cards, with no processing or configuration involved in the signal path.
Models are matched to specific output classes on the controller side — 1G, 5G, and 10G — so the converter is selected to match the sending card's fiber output and the receiving cards already specified for the display.
Fiber Mode Selection
The CVT Series is available in single-mode and multi-mode configurations, matched to the fiber infrastructure already run to site rather than to the controller. Single-mode variants use OS1/OS2 fiber for the longest transmission distances; multi-mode variants use OM3/OM4 fiber for shorter runs on existing multi-mode plant.
Both modes terminate in an LC connector over twin-core cabling, keeping field termination consistent regardless of which mode a given installation requires.
Field Installation
CVT Series converters require no configuration software or drivers. Connecting the fiber and Ethernet runs and applying power establishes the link directly, with no setup step in between.
Status Indication and Firmware Control
Front-panel indicators report power, optical link, and Ethernet connection status independently, isolating a fault to a specific run without additional test equipment. Larger models add a Type-B USB control port for firmware updates through NovaLCT, separate from the data path.
CVT10 Pro Specifications
The CVT10 Pro bridges a controller's 2x 10G fiber outputs to ten Gigabit Ethernet ports at the display end. It ships with two pre-installed, hot-swappable 10G optical modules, in a full-width rack chassis.
