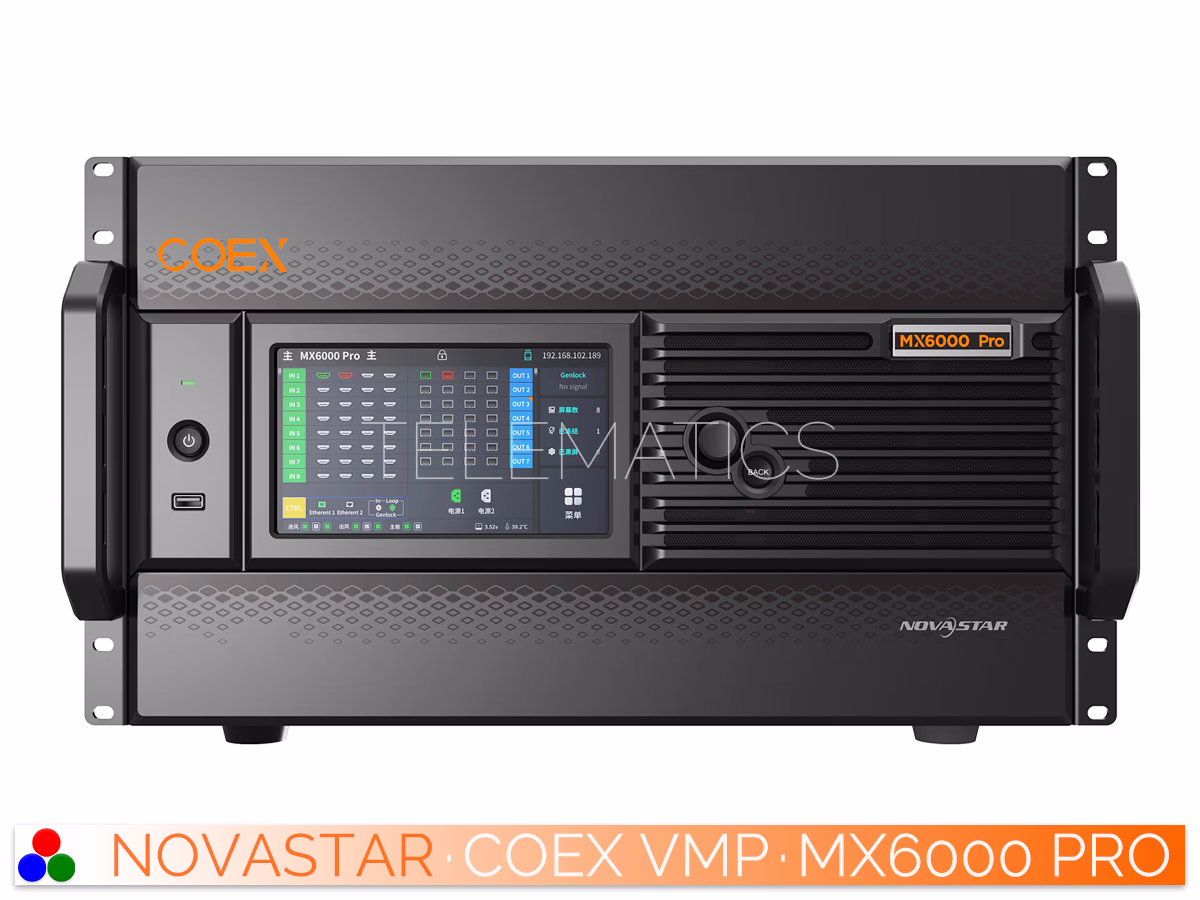

NovaStar MX6000 Pro LED Display Controller ·

⁞ The 2026 NovaStar MX6000 Pro is an 8K LED display controller that features a modular card-based design, 12-bit color depth, 480 Hz capability, HDR support, and real-time multi-screen scaling, providing true-to-life color fidelity and precise brightness control while supporting up to 141 million pixels. NovaStar’s high-performance MX6000 Pro is compatible with all Desay LED display systems.
Always splurge responsibly. Priced to fit:
Pixels

Pixel loading for the COEX MX Pro Series begins at a truly exceptional 35,000,000 for a mind-blowing display, skips an intermediate step for whatever would follow that, and then goes straight to the moon with 141,000,000 pixels.

All of which means you are more than well-equipped for anything that might come alone in the next decade or so.

Dimensions

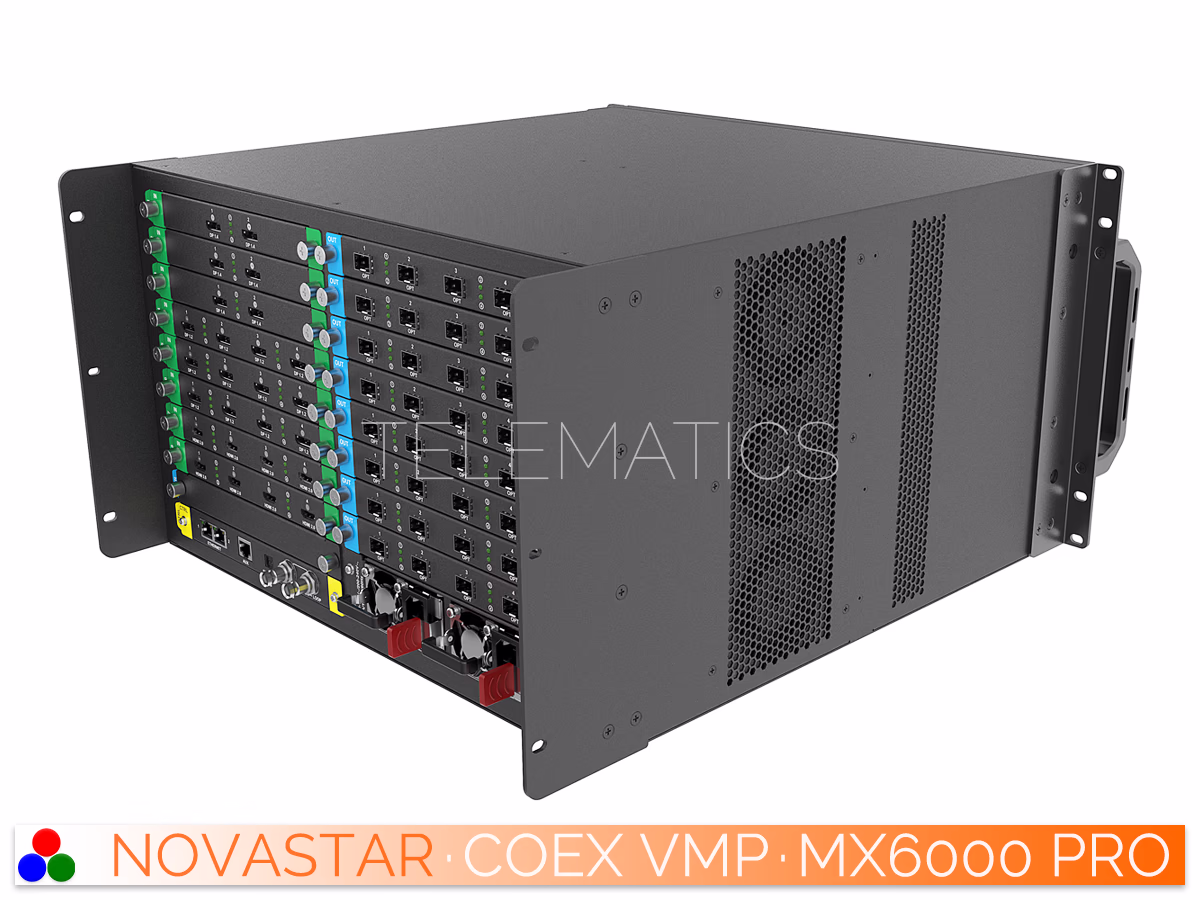

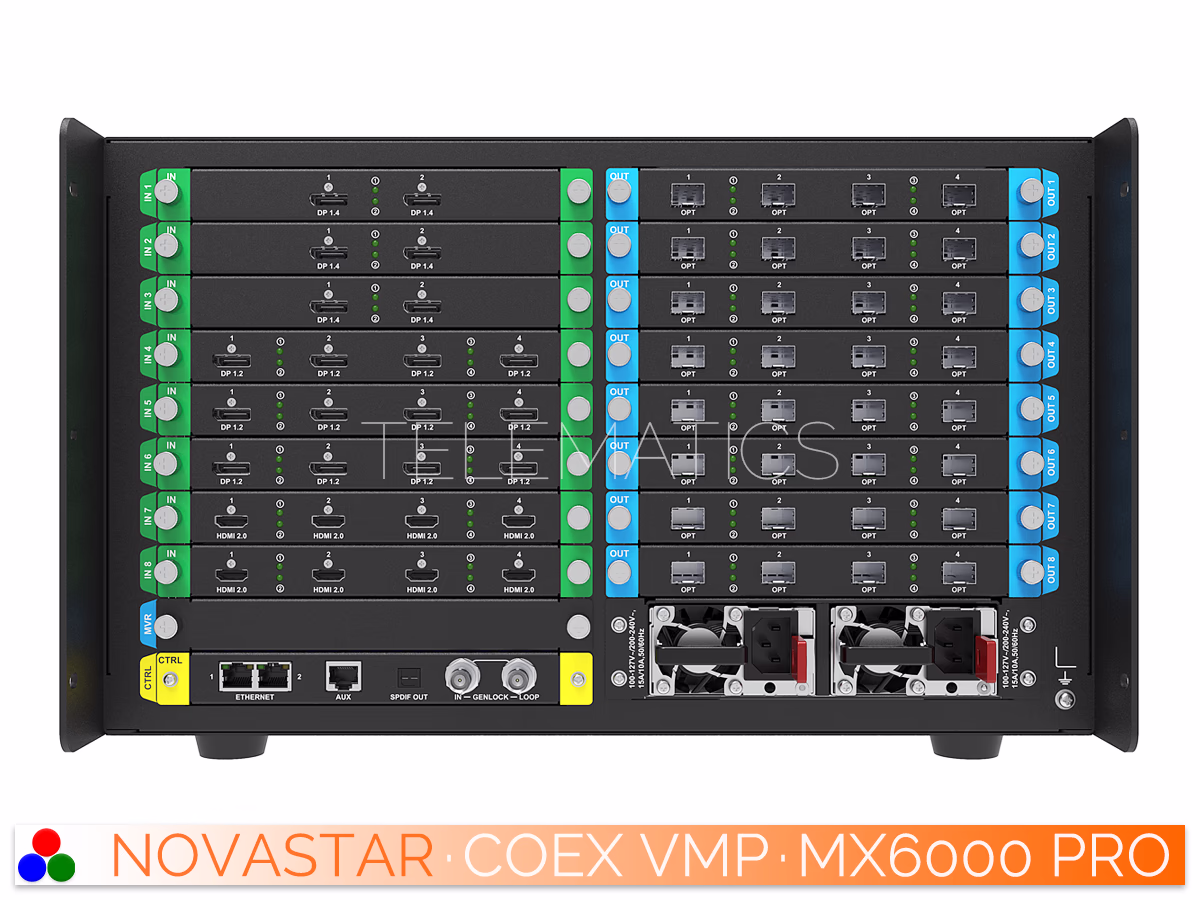

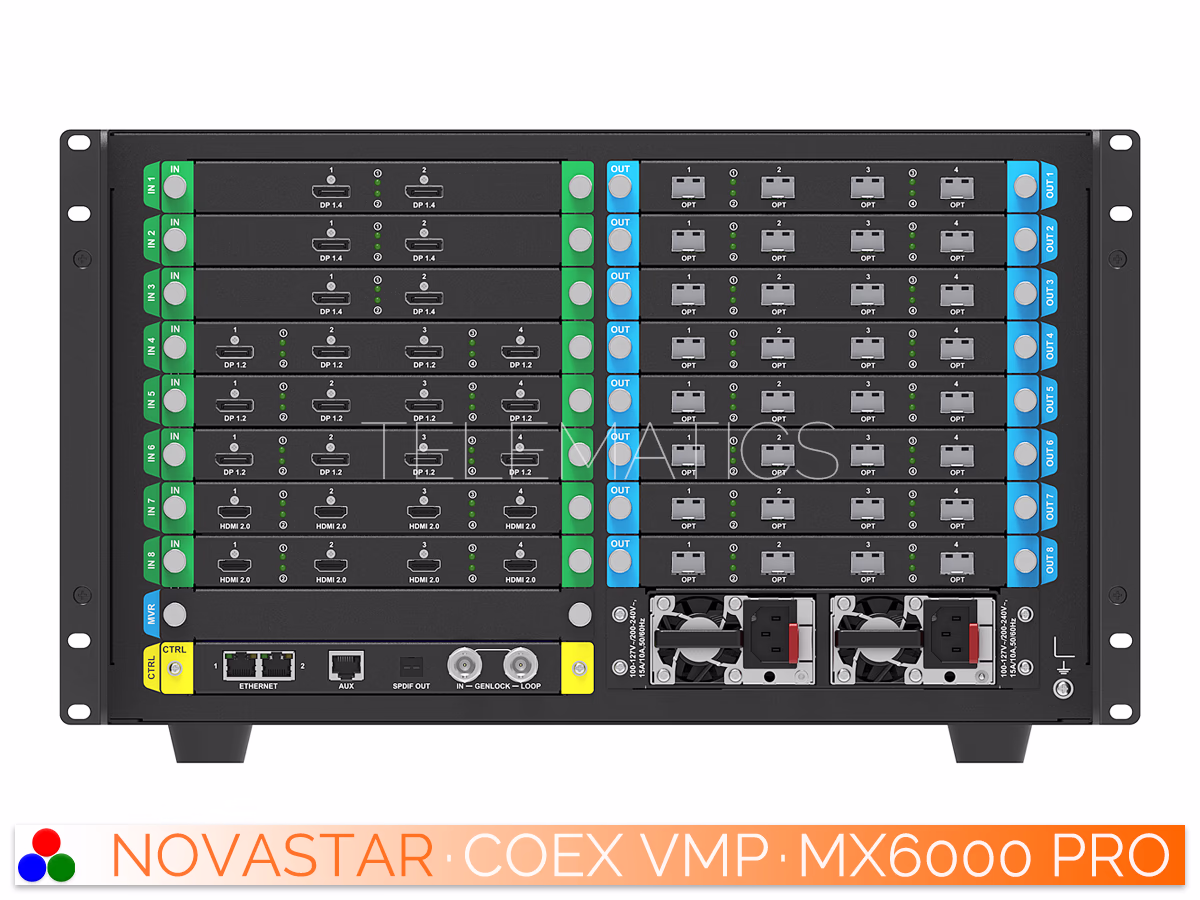

The MX 6000 Pro Series is offered in an industry-standard 2U rack enclosure with dimensions of 483 × 539 × 283 millimeters while weighing in at just under 31.0 kilograms.

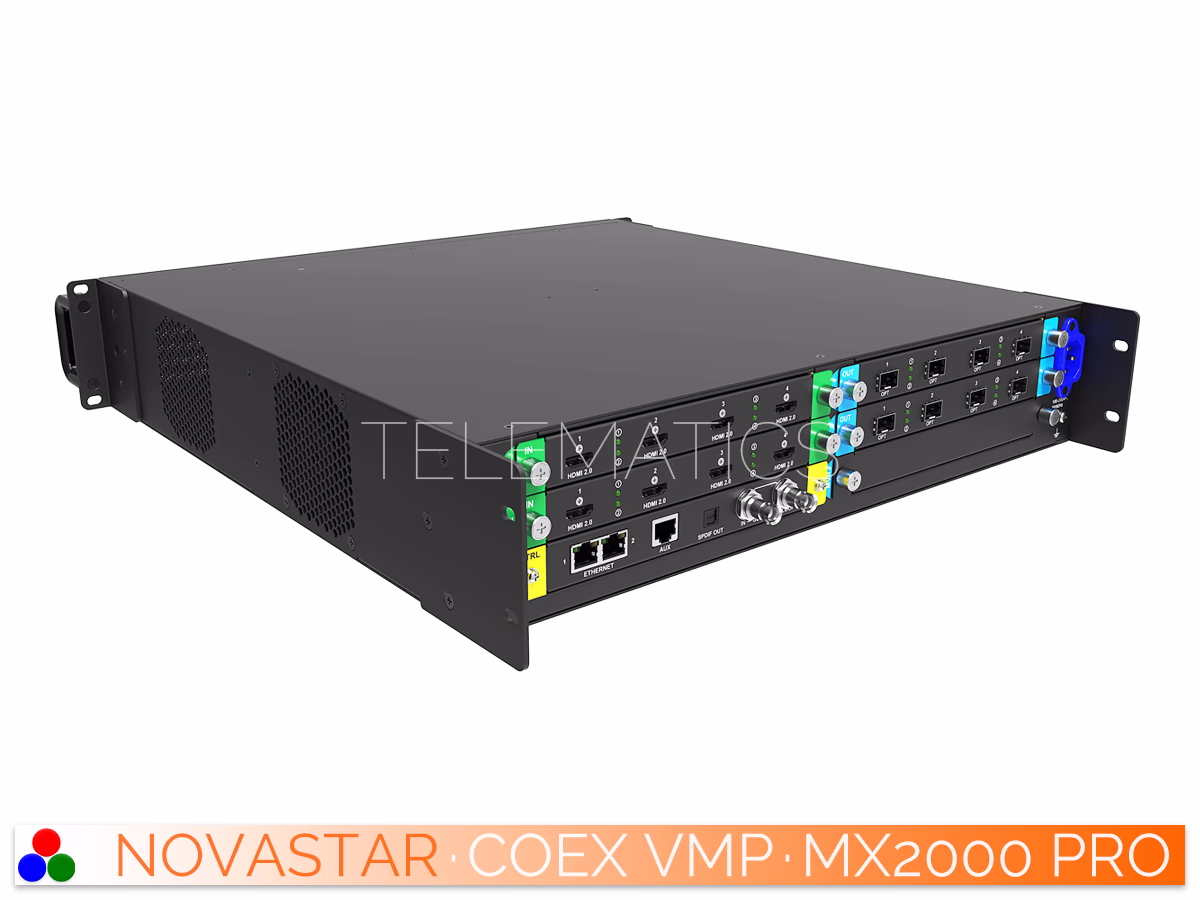

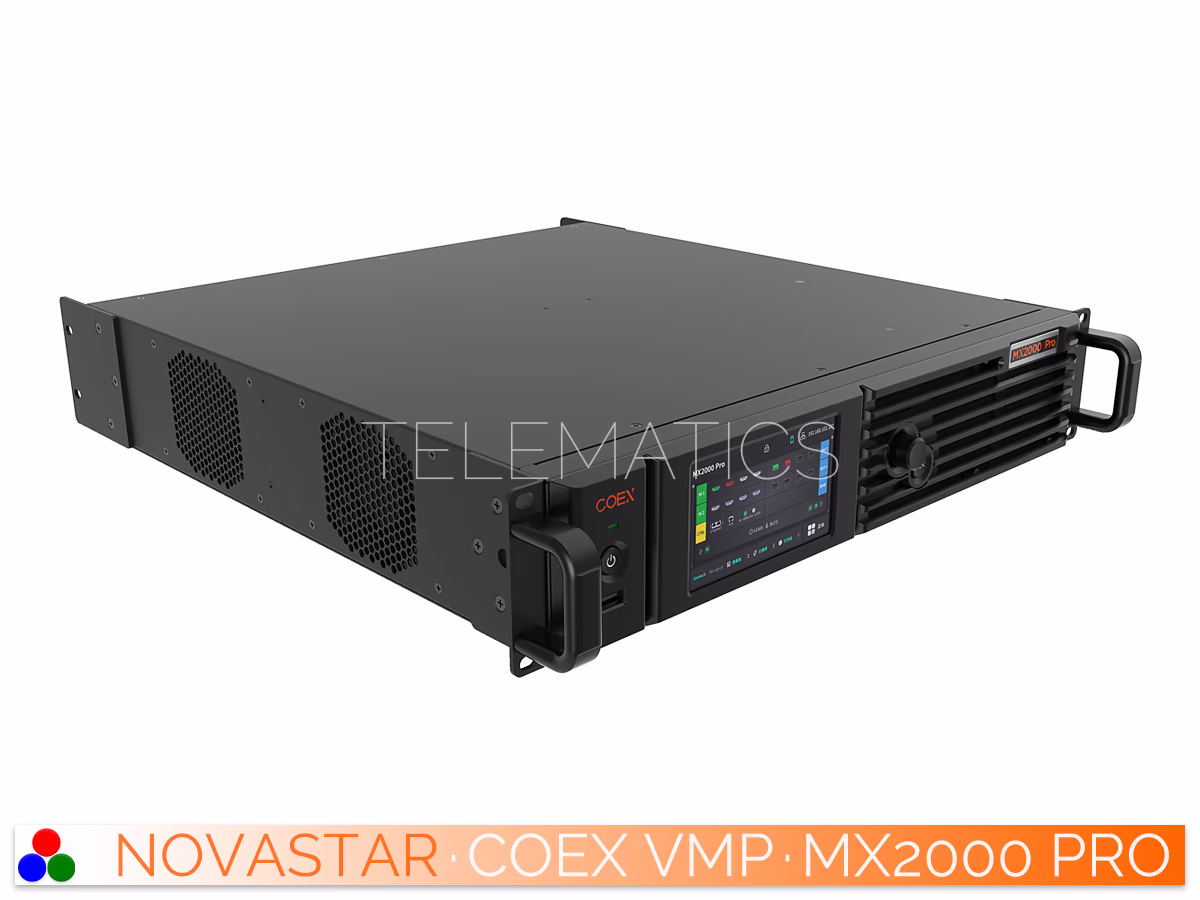

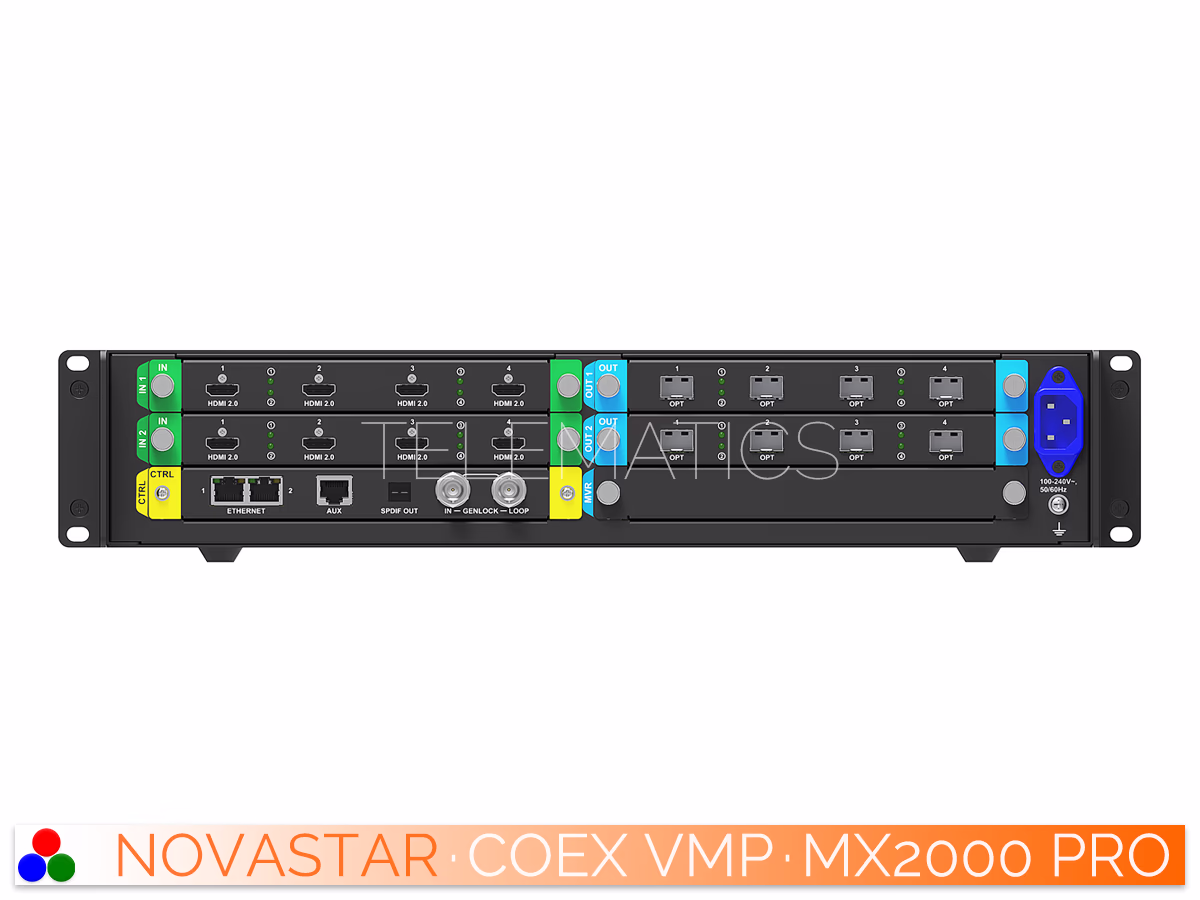

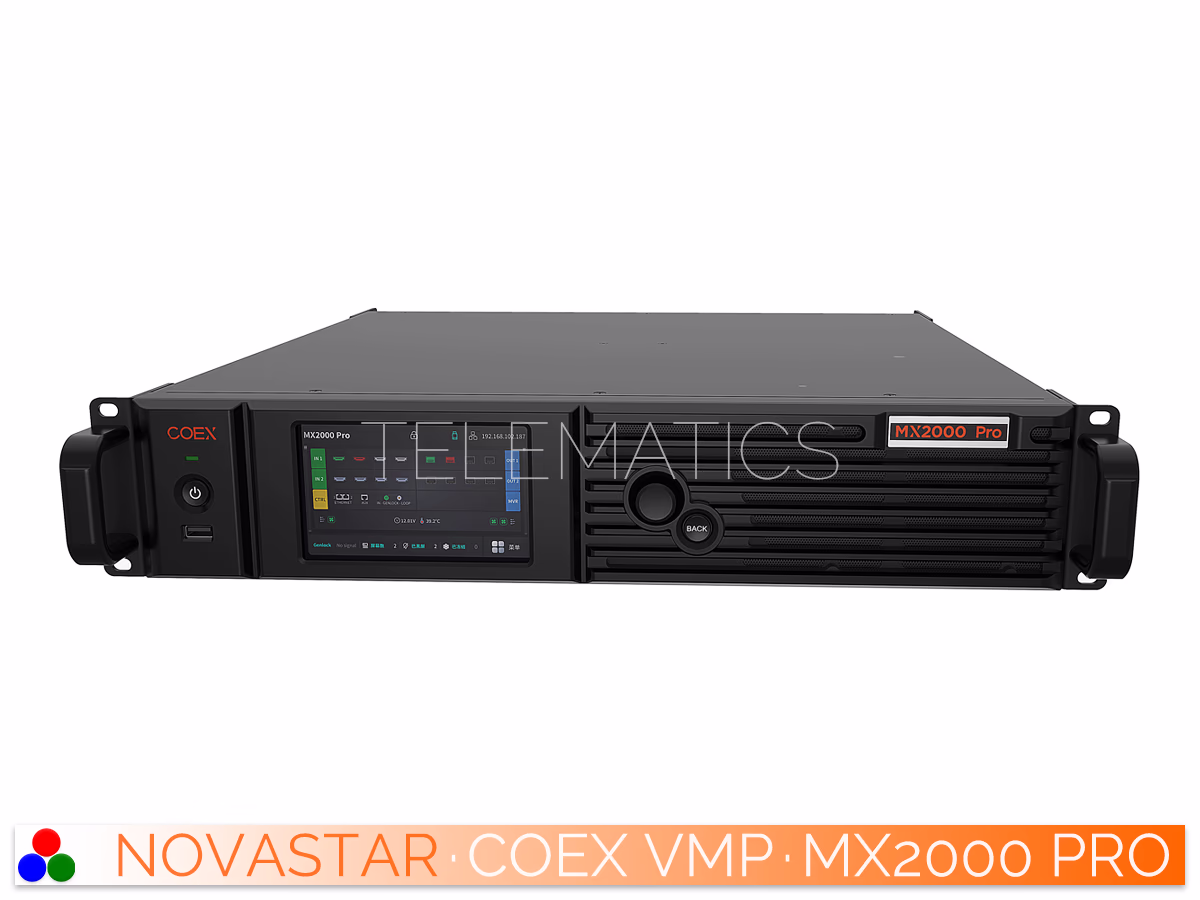

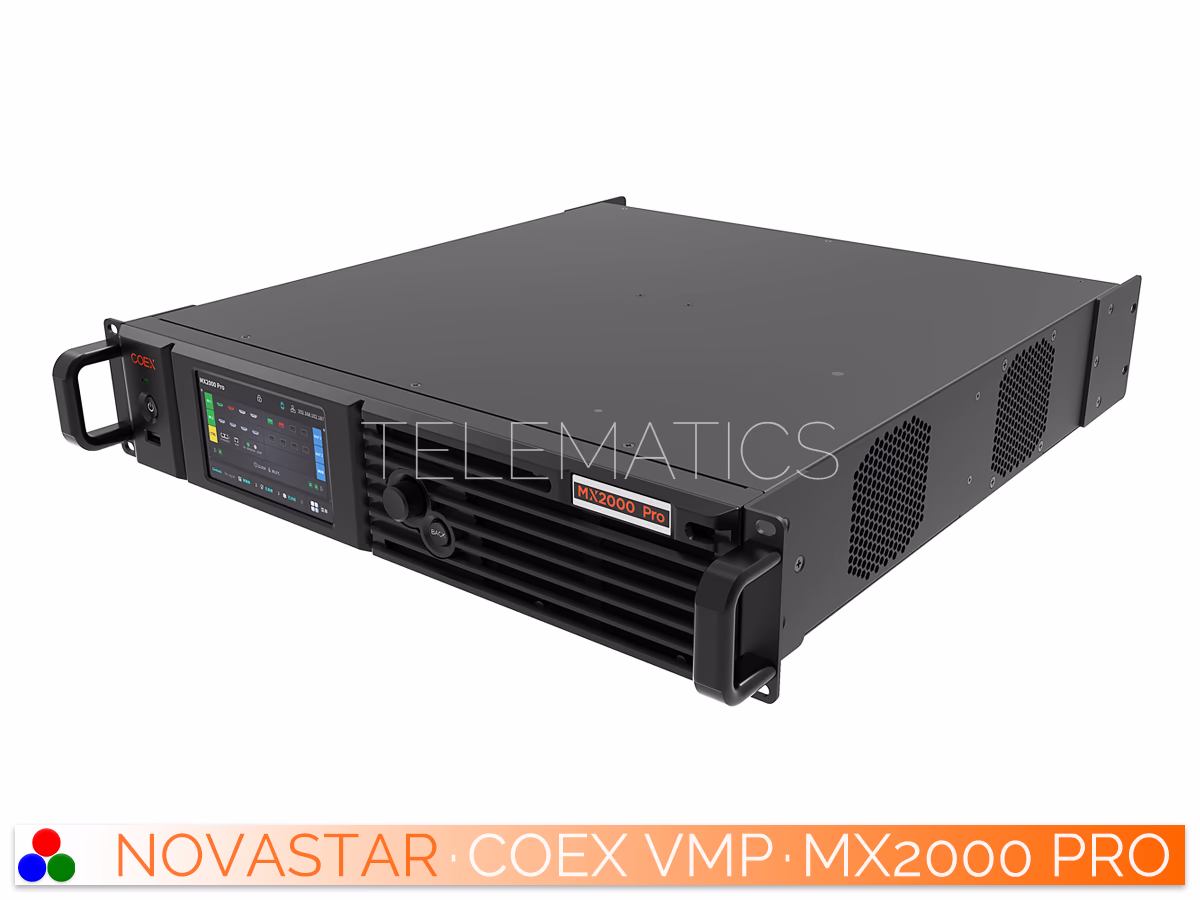

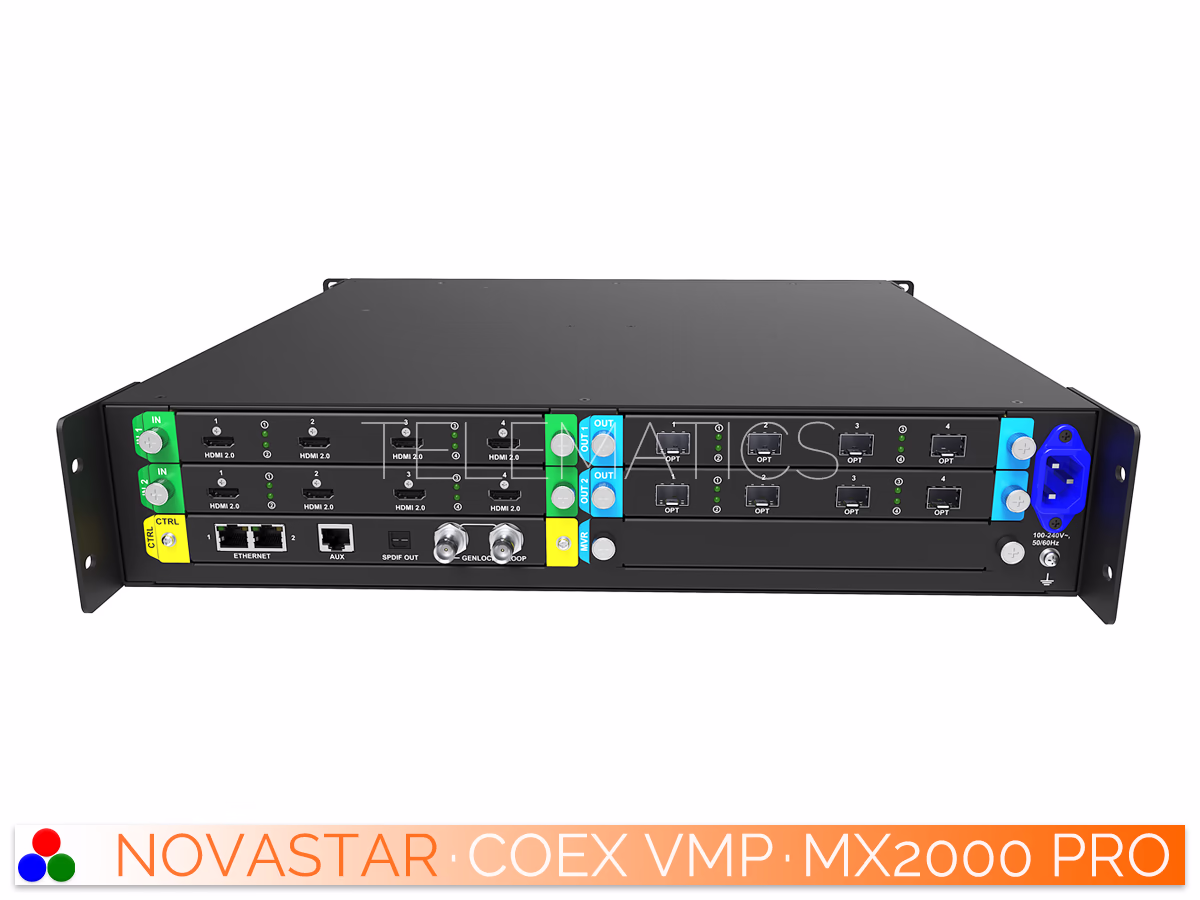

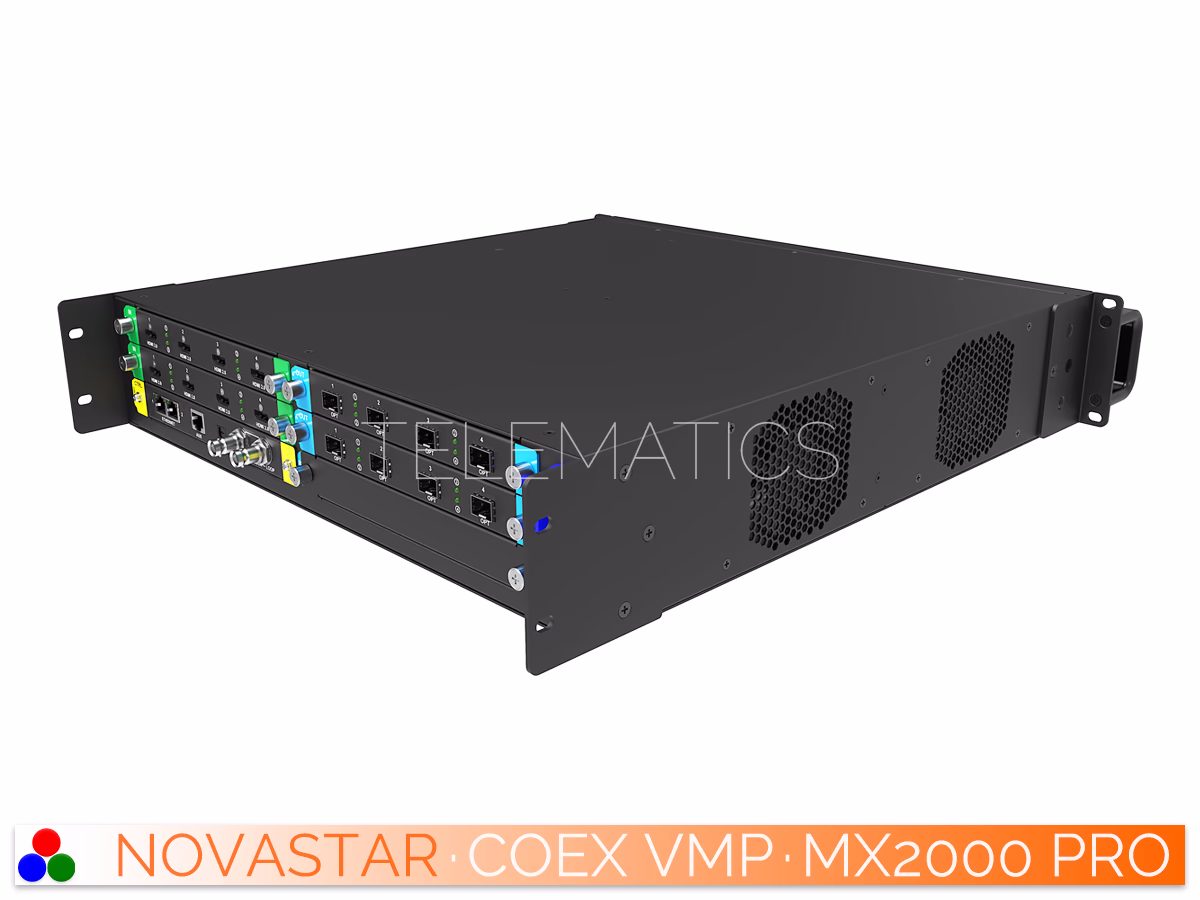

The MX 2000 Pro comes in at just 483 × 530 × 95 millimeters and just 13.0 kilgrams. Be extra nice to whoever you've got moving these valuable assets around before the show.

Schematics

NovaStar offers concise User Manuals in both quick-start summaries and in comprehensive formats that detail every function. We provide full technical specifications on every product we produce.

NovaStar hardware and software are further described and reviewed in depth on the NovaStar YouTube channel.

Lamps

1-bit is black and white, but not grey. 2-bits adds in black-grey and white-grey. 4-bits doubles that to 16 shades of grey and 8-bits brings us to 256 shades and 16,700,000 colours.

The COEX Series starts at 8-bits, and offers 10-bits and 12-bits for 1,024 and 4,096 shades of grey for super smooth gradations and way more colors than your eyes can see.

Options

NovaStar offers a 3-year warranty on all products purchased from an Authorized NovaStar Distributor and certified for use in Canada, the United States, or other corresponding markets.

The factory warranty and online technical support does not cover any NovaStar products purchased through domestic online discount warehouses or overseas bulk resellers.

Installation

NovaStar's advanced hardware and software prioritize intuitive operation and rapid user adoption.

Our robust mechanical dials and digital interfaces enable intuitive control, dedicated setting selection, multiple pre-set configurations, and the user-centric design ensures a smooth learning curve for your team.

Cards

The COEX Series relies on NovaStar's Armor and COEX receiver cards combined with Vision Management Platform software to provide Dynamic Booster, Full Grayscale Calibration and Image Booster functions to your display.

VMP supports Image Enhancement and frame-by-frame Pixel Analysis to reduce power consumption by >20%.

Quotes

We love to provide quotes for clients, so don't hesitate to ask. Formal quotes can typically be ready for your consideration within a few hours.

At your request we can review your project with factory technicians to offer suggestions on solutions specific to your project. The rest is mostly just shipping details.

Performance

NovaStar products are built to perform under demanding conditions for many years.

Whether your installation is a single media player controlling a handful of receiver cards in a billboard, or a massive virtual studio creating a stage for your next theatrical release, you can count on NovaStar to be your reliable partner.

The Specifications· Prices ·· Loading ·· Bit Depth ·· Input ·· Output ·· Features ·· Control ·· PDF ·NovaStar · COEX Series

Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead

Controller · All In One
· Professional Integrator Program
Models
novastar series mx pro
Extras · Options
1.563
1.953
2.500
2.976
2.976
2.976
mx_4×dp 1.2 input card
mx_2×dp 1.4 input card
mx_2×dp1.4 + 2×hdmi2.1 input card
mx_4×hdmi 2.0 input card
mx_2×hdmi 2.1 input card
mx_4×12g sdi input card
mx_1×2110 (25g) input card
mx_2×2110 (25g) input card
mx_1×40g fiber output card
mx_4×10g fiber output card
Pixels
1.563
1.953
2.500
2.976
2.976
2.976
lamps · loading capacity
141,557,760
35,389,440
video source depth · bits
8 · 10 · 12
8 · 10 · 12
video port · input · maximum width
8,192 × h
8,192 × h
video port · input · maximum height
w × 8,192
w × 8,192
video port · input · dp 1.4
card
card
video port · input · dp 1.2
card
card
video port · input · hdmi 2.1
card
card
video port · input · hdmi 2.0
card
card
video port · input · dvi
video port · input · dvi 1.2
video port · input · 12g-sdi
card
card
video port · input · 3g-sdi
video port · input · 10g optical fiber
video port · input · usb
video port · input · genlock
card
card
video port · output · capactiy × port · 8-bit
2,592,000
2,592,000
video port · output · network port
video port · output · 10g optical fiber
card
card
video port · output · hdmi 2.0
video port · output · hdmi 1.4
video port · output · hdmi 1.3
video port · output · dvi loop
video port · output · 12g-sdi loop
card
card
video port · output · 3g-sdi loop
video port · output · hdmi · monitor
features · layers
card
card
features · presets
128
128
features · light sensor
control · coex · vision management platform
control · method · tcp/ip · usb
control · protocol · tcp/ip
Enclosure

width · mm
0.4826
0.4826
height · mm
0.2829
0.0946
depth · mm
0.5388
0.5297
weight · kgs
30.50
13.00
Files

specifications
specifications

The Configurator· Our Pixels ·· Our Widths ·· Our Heights ·· Our Sizes ·· Our Powers ·· Our Options ·· Our Warranties ·· Our Freight ·· Our Prices ·· Our Quotes ·NovaStar · MX6000 Pro

Don't judge each day by the harvest you reap but by the seeds that you plant. ~ Robert Louis Stevenson

Hardware · Input · Output

Extras · Options

The Sales Pitch· About Us ·· About The MX6000 Pro ·· About NovaStar ·NovaStar · MX6000 Pro

Dreaming, after all, is a form of planning. ~ Gloria Steinem

About Telematics Canada

Telematics Canada

Telematics Canada is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture premium direct-view LED displays for most every commercial and creative application, as well as the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry.

24 Years of Relationships

For more than 24 years, we have developed business relationships with thousands of people from every corner of the world. Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are businesses who select and install their own systems with the assistance of local tradesmen and engineers.

Providing Solutions

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable. And we always keep their secrets to ourselves.

About NovaStar

NovaStar: Global Leader in LED Control Systems

NovaStar, headquartered in Xi'an, China, is a global leader in LED display control systems, offering both synchronous and asynchronous solutions.

Founded in 2008 by university students, the company has grown to provide a comprehensive product ecosystem, including high-performance calibration tools and VNNOX + CARE cloud services for media publishing, scheduling, and monitoring.

Its advanced technology has earned the company numerous awards, including the Xi'an and Shaanxi Awards for Science and Technology.

Trusted for Major Events

NovaStar’s control systems have been relied upon for major global events, including the Beijing Olympic Games, the World Cup, WWE events, the Shanghai World Expo, and the Guangzhou Asian Games. This proven track record makes NovaStar a trusted partner for LED display projects worldwide.

Innovative and Award-Winning

NovaStar's dedication to innovation is reflected in over 1,000 proprietary intellectual property patents in LED display control, cloud computing, and related fields. These solutions continue to set industry standards, driving advancements across the entertainment, digital signage, and rental markets.

Global Presence

With 44 branches worldwide and over 10,000 clients, NovaStar delivers localized support and tailored solutions, helping optimize productivity and elevate business performance.

https://www.novastar.tech

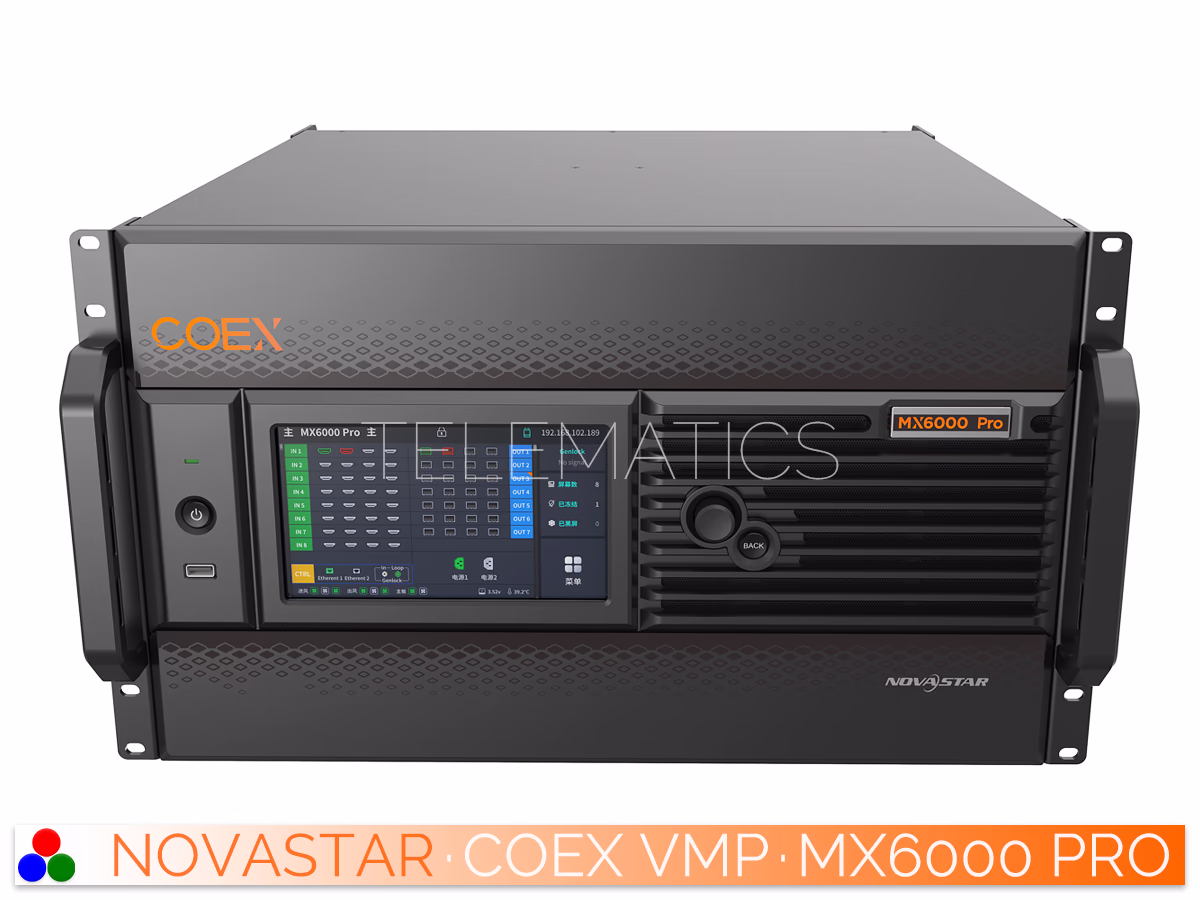

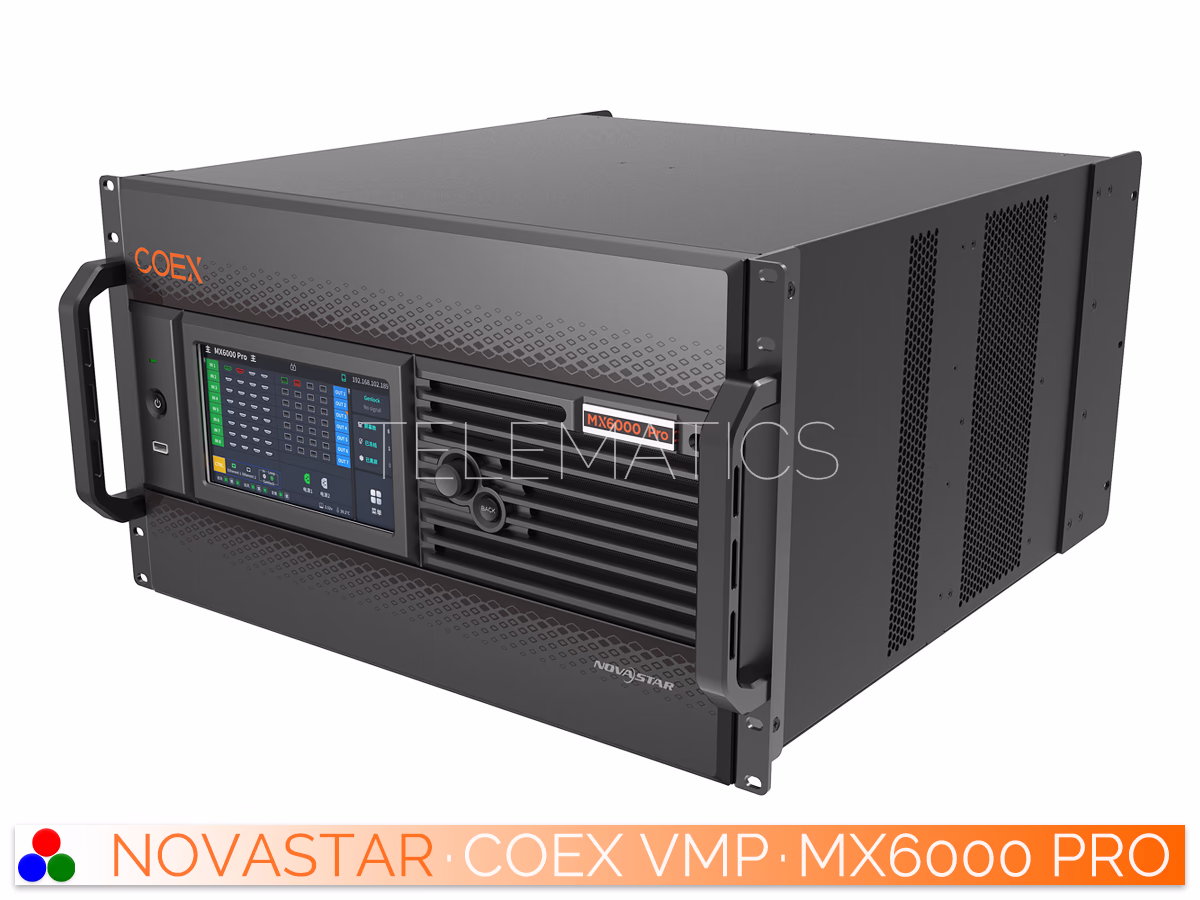

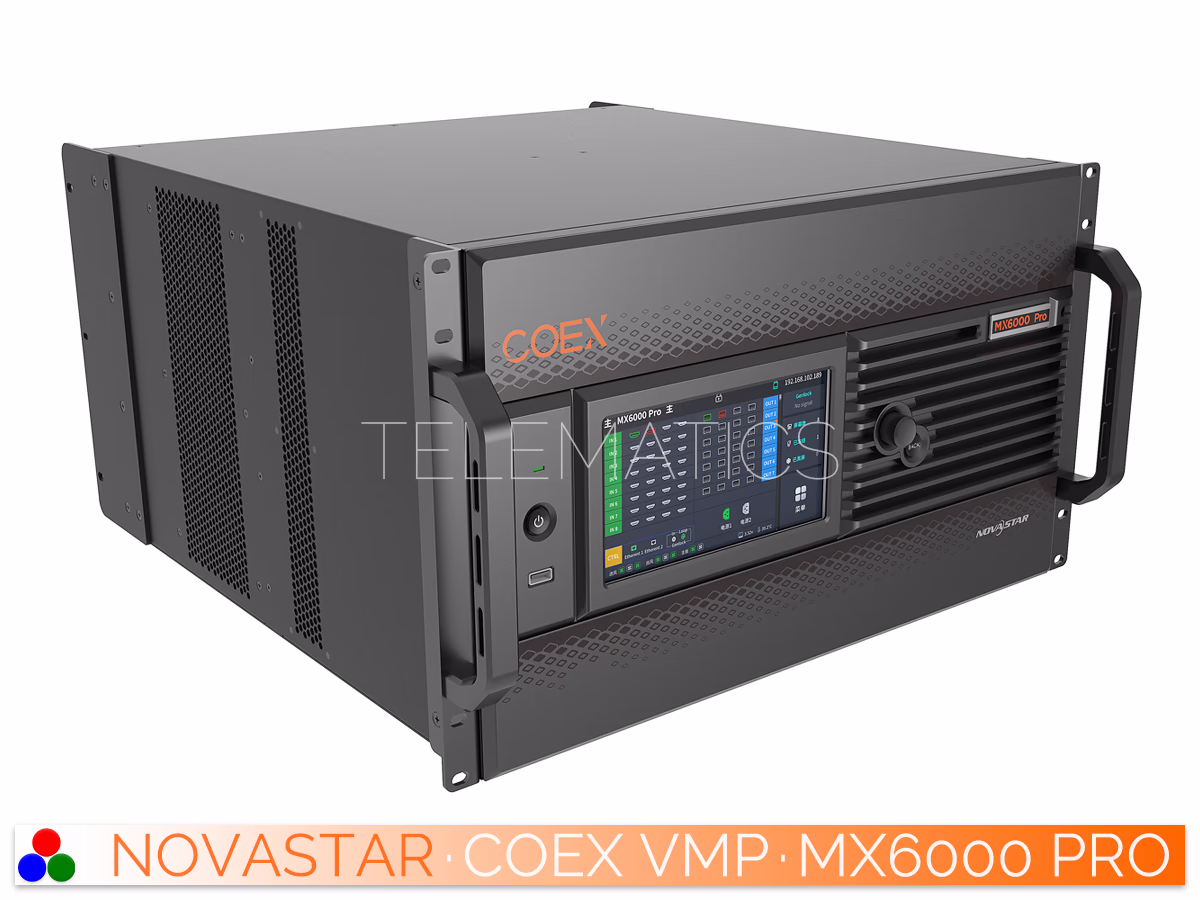

NovaStar MX6000 Pro

NovaStar MX6000 Pro: LED Display Controller

The MX6000 Pro is a high-end 8K LED display controller from NovaStar's COEX series, designed with a modular card-based architecture for flexibility and scalability. It supports up to 32 4K or 16 8K inputs, with a maximum load capacity of 141 million pixels, making it suitable for large-screen configurations and professional-grade LED display applications.

Key Features

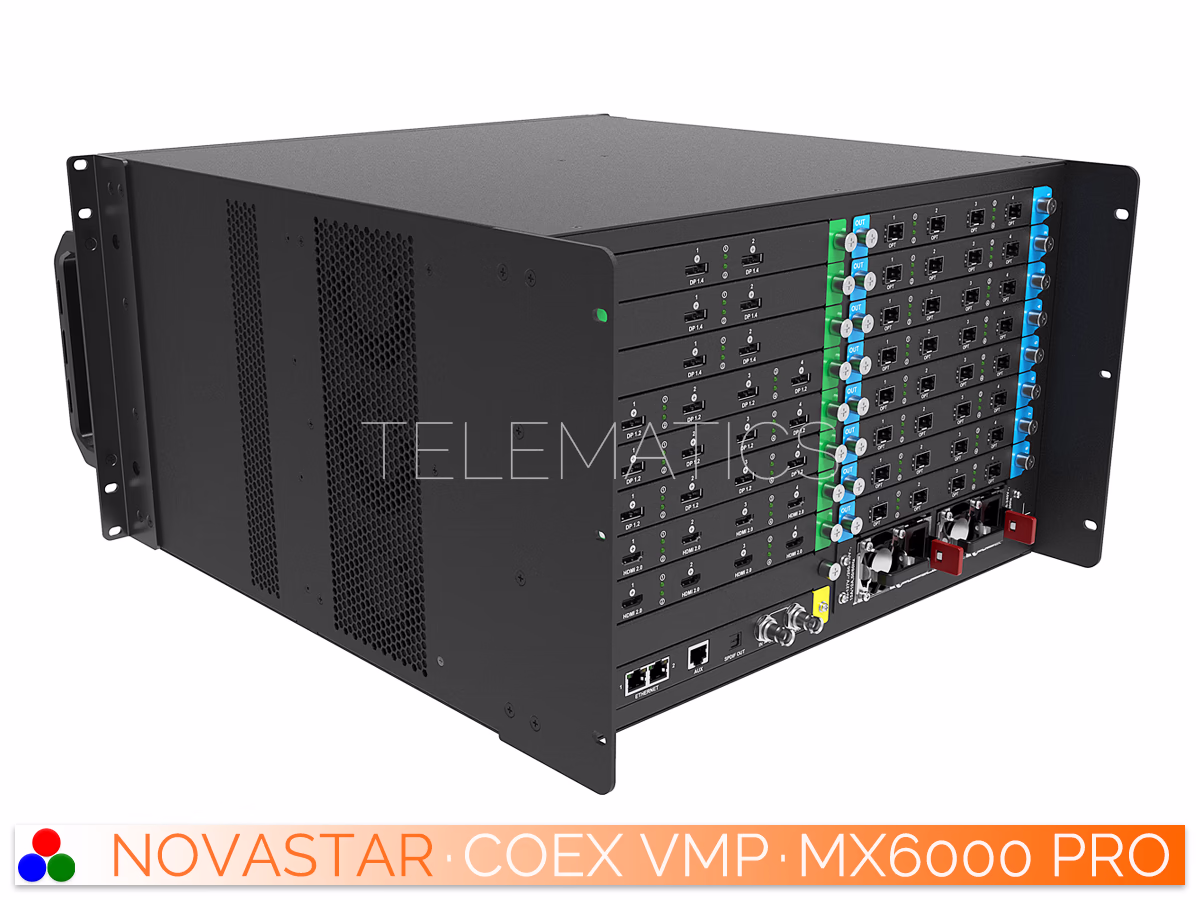

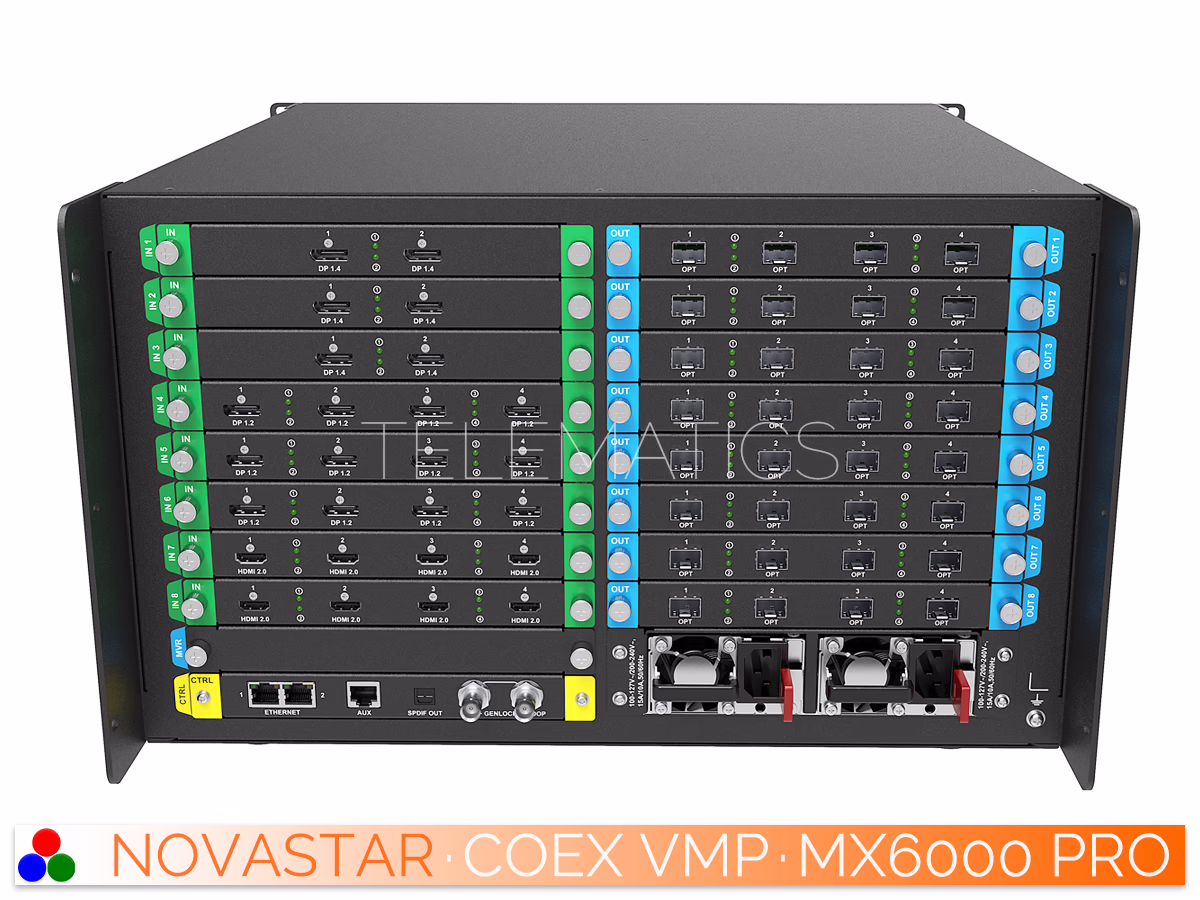

  • Input and Output Connectivity: 8x input card slots supporting 4K, 8K, and VoIP cards, including HDMI 2.0, DP 1.4, 12G-SDI, and ST 2110. Output options include 4x 10G fiber or 1x 40G fiber cards.
  • Advanced Image Processing: Supports up to 32 4K layers with scaling modes like custom, pixel-to-pixel, snap to canvas, and fill screen. Includes layer roaming for cross-card output.
  • Full Grayscale Calibration: Uses NovaStar's calibration system and a C3200 camera to ensure consistent image quality across all grayscale levels.
  • HDR and 3D Support: Complies with HDR10 and HLG standards and offers immersive 3D capabilities with 3D emitters and glasses.
  • Low Latency: Capable of achieving 0-frame latency for real-time performance, with options to add up to two frames of latency as needed.
  • Dynamic Booster: Real-time analysis and adjustment of each frame improve contrast and reduce power consumption, extending the lifespan of LED screens.

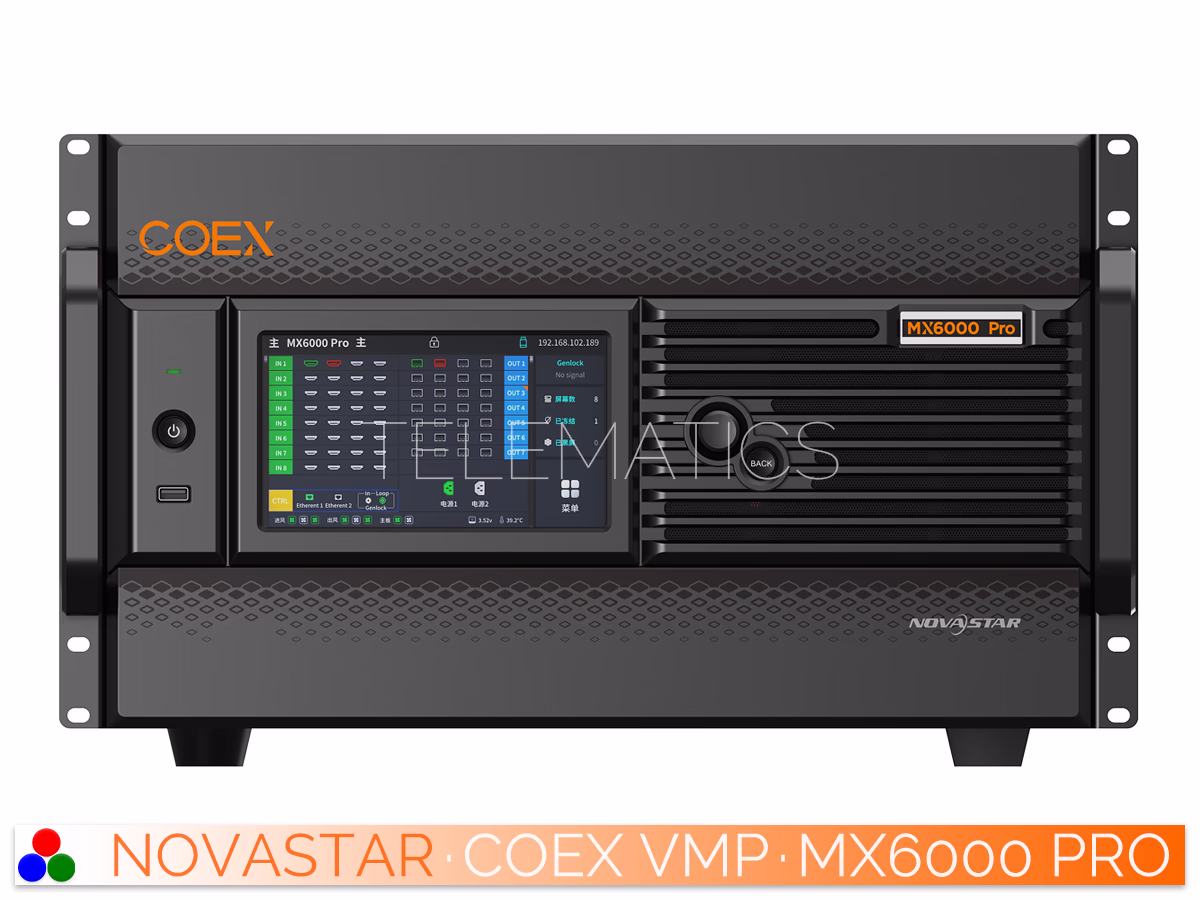

  • Control and Monitoring: Equipped with a 7-inch touchscreen and compatible with VMP software for enhanced control, monitoring, and easy management.
  • Redundancy and Backup: Features hot backup between devices, output cards, and Ethernet ports, ensuring continuous operation in the event of a failure.
Applications

Ideal for xR/VP studios, TV production, e-sports events, large rental events, exhibition halls, and other high-resolution, large-scale LED display applications.

Conclusion

The NovaStar MX6000 Pro LED Display Controller is a robust, versatile solution for professional-grade LED installations, offering modular design, advanced image processing, low latency, and powerful redundancy features to ensure stable, high-quality performance.
